Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2255222 Control Box Special Order $ 72.46

2 2261773 Shield Appelez-nous -
3 WP3196557 Screw (4)   (Replaces: 3196537) In-Stock Immediately $ 7.95

4 3400972 Washer Appelez-nous -
5 2305539 Foam, Shield Appelez-nous -
6 2303805 Electronic Control Appelez-nous -
8 940014 Hole Plug Special Order $ 18.33

9 2305538 Shield, Electrical Appelez-nous -
11 2255226 Cam Assembly Appelez-nous -
12 2255413 Bearing Body Appelez-nous -
13 2255225 Light Lens Appelez-nous -
15 2255227 Pivot Arm Appelez-nous -
16 627068 Screw Special Order $ 12.12

17 4387478 Light Socket   (Replaces: 2162085) In-Stock Immediately $ 110.16

19 8009 Light Bulb   (Replaces: 527949) In-Stock Immediately $ 18.67

20 2255235 Control Box Harness Appelez-nous -
22 2255666 Shield, Heat Appelez-nous -
23 2255228 Connecting Rod Appelez-nous -
24 489285 Fastener, Push-on Appelez-nous -
25 2255611 Escutcheon, Control Box Appelez-nous -
26 2255232 Knob, Rc Appelez-nous -
27 2255992 Knob, Fc Appelez-nous -
28 WP2188819 Thermistor   (Replaces: 2188819) In-Stock Immediately $ 46.01

29 489203 Spring Washer Appelez-nous -
31 2261265 Air Seal, Thermistor Appelez-nous -
33 3400971 Nut, Hex Appelez-nous -
1117510 Torx Key Special Order $ 5.84

542639 Cement, Alumilastic 1-1/4 Oz.) Appelez-nous -
350956 Enamel, Almond (12 Oz. Spray Can) Special Order $ 51.44

350942 Primer, White (12 Oz. Spray Can) Special Order $ 89.66

285006 Enamel, Black (12 Oz. Spray Can)   (Replaces: 350939) Special Order $ 57.04

350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 38.21

212643 Sealer, Gum (4 Feet) In-Stock Immediately $ 82.13

479502 Tape, Vinyl 3/4 X 108``) Special Order $ 66.77

876370 Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``) Special Order $ 231.56

876029 Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) Appelez-nous -
511873 Paint, Touch-up 1/2 Oz. (white Porcelain) Special Order $ 49.29

606755 Bag, Insulation (36-5/8`` X 46``) Special Order $ 78.45

WP542638 Grease, Silicone (1/2 Oz.)   (Replaces: 542638) In-Stock Immediately $ 12.18

799833 Kit, Evaporator Repair (aluminum Epoxy) Appelez-nous -
833938 Kit, Terminal Connector Special Order $ 8.07

799340 Enamel, Black (1 Qt. Uncut) Appelez-nous -
799344 Paint, Bulk (1 Qt.) (white) (uncut) Special Order $ 237.46

978883 Enamel, Almond (1 Qt. Uncut) Appelez-nous -
W11729596 Eckmf-94   (Replaces: 2155469) In-Stock Immediately $ 150.98

N/A Field Installable Ice Maker Appelez-nous -
WP503695 Cork, Sealer 1/4 Pound)   (Replaces: 503695) Special Order $ 117.94

WP505587 Sealer, Mastic (1 Qt.).   (Replaces: 505587) In-Stock Immediately $ 173.95

876370 Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941) Special Order $ 231.56

876370 Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305) Special Order $ 231.56

72032 Paint, Touch-up 1/2 Oz. (black) In-Stock Immediately $ 18.69

WP72107 Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107) Special Order $ 17.91

72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 12.30


    View Diagram in Separate Window     Print Icon   Print Part List

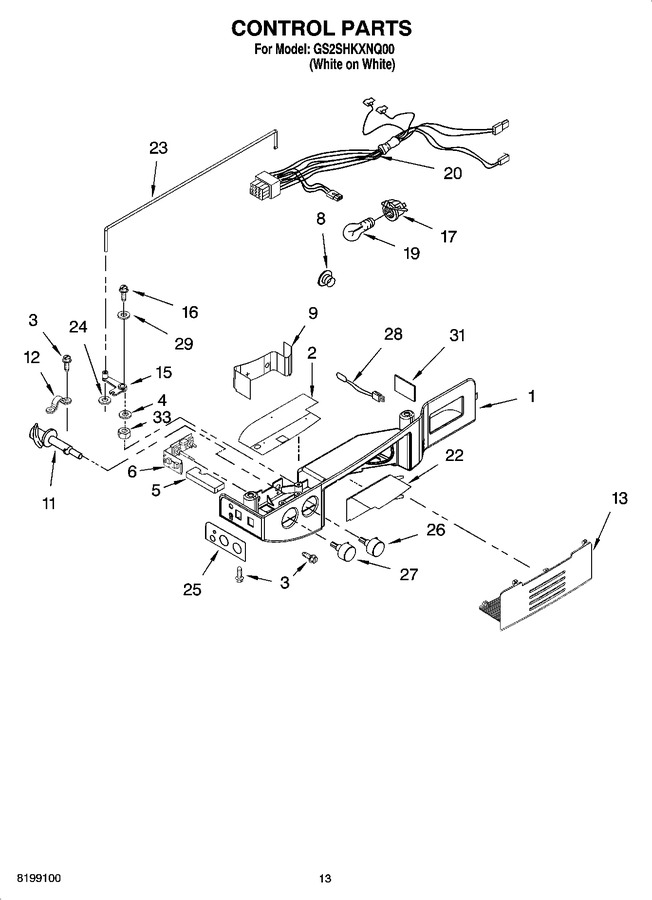

Diagram for GS2SHKXNQ00
