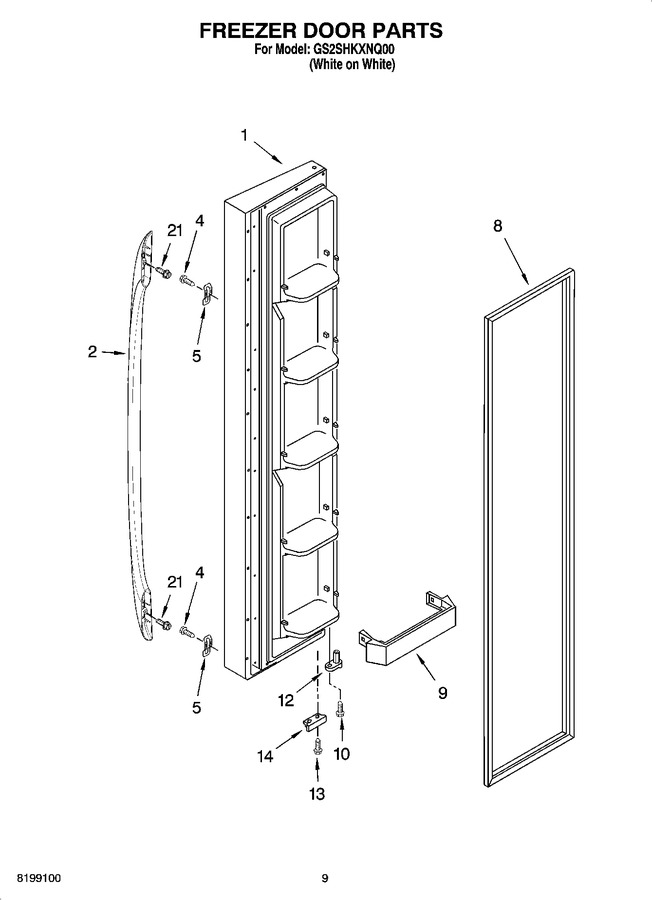

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2305972W		Freezer Door (includes Item 8)		Appelez-nous	-
2	2305993W		Handle		Appelez-nous	-
4	WP489491		Screw   (Replaces: 489491)				$ 6.95
5	WP2255411		Clip   (Replaces: 2255411)				$ 34.81
8	2159072		Door Gasket, Magnetic (service) (mist Beige)   (Replaces: 2221301)				$ 308.19
9	WP2156021		Trivet, Shelf (5)   (Replaces: 2156021)				$ 63.27
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	2200082		Bracket, Door Stop				$ 5.83
21	8533920		Screw				$ 5.27
