SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts

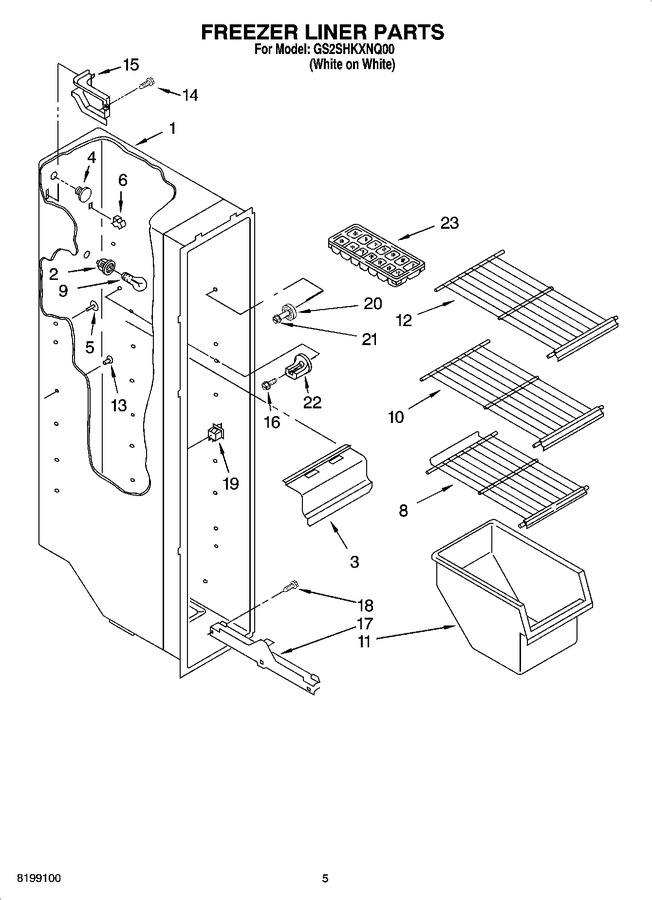

04 - Freezer Liner Parts


05 - Air Flow Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Unit Parts


09 - Control Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Seviceable Part)		Appelez-nous	-
2	WPW10119935		Socket, Light   (Replaces: 2155597)				$ 101.10
3	WP2155595		Light Lens   (Replaces: 2155595)				$ 84.15
4	2223173		Plug, Fill Tube				$ 8.80
5	WP941839		Hole, Plug   (Replaces: 941839)				$ 7.65
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.42
8	2174265		Shelf, Large (2)		Appelez-nous	-
8	WP2174249K		Shelf, Small   (Replaces: 2174249)				$ 211.19
9	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
10	2174266		Shelf		Appelez-nous	-
11	2171707		Freezer Bin		Appelez-nous	-
12	2179325		Shelf		Appelez-nous	-
13	2176134		Grommet				$ 5.83
14	2160912		Wiring Cover		Appelez-nous	-
15	W11233072		Screw   (Replaces: 489355)			Immediately	$ 14.02
16	W10142289		Screw   (Replaces: 3400893)				$ 9.15
17	1115383		Slide, Bin (left Side)		Appelez-nous	-
17	W10845583		Slide, Bin (right Side)   (Replaces: 1119293)				$ 123.92
18	718257		Screw   (Replaces: 489100)		Appelez-nous	-
19	W11384469		Switch, Rocker Arm   (Replaces: 1118894)			Immediately	$ 37.23
20	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.35
21	WP3400806		Screw   (Replaces: 8281158)				$ 7.71
22	2196207		Stud, Rear				$ 7.61
23	WP841180A		Ice Tray   (Replaces: 841180)			Immediately	$ 45.56

    View Diagram in Separate Window       Print Part List
