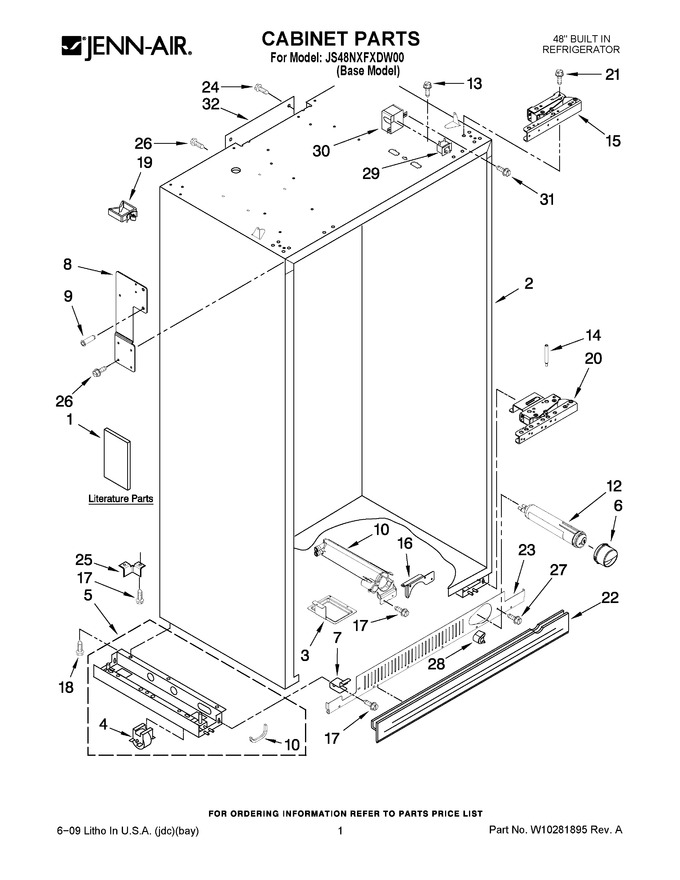

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10231368 | Installation Instructions |
|
- | |||||
| 1 | W10231366 | Use & Care Guide |
|
- | |||||
| 1 | W10246794 | Energy Guide |
|
- | |||||
| 1 | W10234135 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10234151 | Icemaker And Ingredient Care Center Service Sheet |
|
- | |||||
| 1 | W10234149 | Main Control Service Sheet |
|
- | |||||
| 2 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 3 | 2318189 | Tray, Drip Filter |
|
$ 148.73 | |||||
| 4 | WPW10138054 | Roller, Front & Rear (4) (Replaces: W10138054) |
|
$ 45.34 | |||||
| 5 | W10860448 | Support, Leveler Assembly (refrigerator Side) (Replaces: W10138423) |
|
Immediately | $ 383.00 | ||||
| 5 | W10860229 | Support, Leveler Assembly (freezer Side) (Replaces: W10138425) |
|
$ 381.83 | |||||
| 6 | WP2260518B | Cap, Water Filter (black) (Replaces: 2260518B) |
|
Immediately | $ 28.26 | ||||
| 7 | W10839844 | Mounting Stud, Grille (Replaces: 2307640) |
|
$ 43.26 | |||||
| 8 | W10188499 | Support, Grille (left) |
|
$ 66.70 | |||||
| 8 | W10188500 | Support, Grille (right) |
|
$ 115.89 | |||||
| 9 | WPW10121451 | Nutsert, Support (Replaces: W10121451) |
|
Immediately | $ 8.03 | ||||
| 10 | WPW10121140 | Housing, Water Filter (Replaces: 2260526) |
|
Immediately | $ 171.96 | ||||
| 12 | EDR3RXD1B | Filter, Water (Replaces: 4396841) |
|
Immediately | $ 49.99 | ||||
| 13 | WP489399 | Screw (Replaces: 489399) |
|
$ 7.30 | |||||
| 14 | W10234202 | Pin-stop, Door |
|
$ 91.73 | |||||
| 15 | W10167398 | Hinge (top) (fc) |
|
$ 407.94 | |||||
| 15 | W10167397 | Hinge (top) (rc) |
|
$ 557.77 | |||||
| 16 | W11755873 | Bracket, Mount (water Filter) (Replaces: W10223655) |
|
$ 80.33 | |||||
| 17 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 18 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 19 | W10129069 | Wire Clip (5) |
|
- | |||||
| 20 | W10182692 | Hinge (bottom) (rc) |
|
$ 383.88 | |||||
| 20 | W10182693 | Hinge (bottom) (fc) |
|
$ 351.61 | |||||
| 21 | W11721628 | Screw 1/4-20 X 5/8 (Replaces: 8533913) |
|
Immediately | $ 14.78 | ||||
| 22 | WPW10188549 | Skirt-grille, Bottom (Replaces: W10188549) |
|
$ 144.20 | |||||
| 23 | W11739147 | Grille Bottom, Front (Replaces: W10182717) |
|
Immediately | $ 212.42 | ||||
| 24 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 8.40 | ||||
| 25 | 2006617 | Bracket, Support Base (rear) (2) |
|
- | |||||
| 26 | WP1163283 | Screw (Replaces: 1163283) |
|
$ 7.55 | |||||
| 27 | WP8281163 | Screw (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 28 | WP2260503B | Button, Filter (Replaces: 2260503B) |
|
$ 76.42 | |||||
| 29 | W11384469 | Switch, Rocker Arm (Replaces: C3680314) |
|
Immediately | $ 39.09 | ||||
| 30 | W10167387 | Cover, Switch (left) |
|
$ 77.58 | |||||
| 30 | W10167341 | Cover, Switch (right) |
|
$ 77.09 | |||||
| 31 | WP965173 | Screw (2) (Replaces: 487415) |
|
Immediately | $ 11.87 | ||||
| 32 | 2215612 | Cover, Rear |
|
- |
