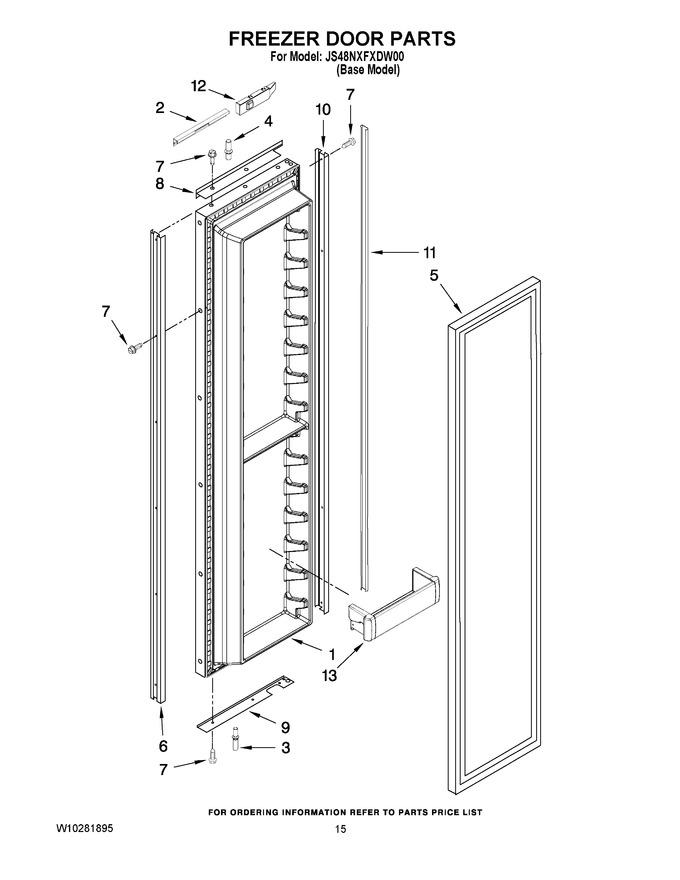

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10167379		Freezer Door (includes No.14)		Appelez-nous	-
2	W10199888		Cover-door, Top				$ 61.90
3	W11337869		Pin-door, Bottom   (Replaces: W10234206)				$ 64.91
4	W10234194		Pin-door, Top				$ 17.66
5	WP2266901		Door Gasket, Magnetic   (Replaces: 2222810)				$ 369.84
6	W10182700		Trim-door, (handle Side)		Appelez-nous	-
7	W10825422		Screw (stainless Steel)   (Replaces: 8281251)				$ 11.36
8	W10182706		Trim-door, Top		Appelez-nous	-
9	W10182710		Trim-door, Btm		Appelez-nous	-
10	W10182685		Trim-door (hinge Side)		Appelez-nous	-
11	W10209363		Trim, Side		Appelez-nous	-
12	W10197766		Insert, Door Arm (bottom)				$ 17.26
12	W10197748		Insert, Door Arm (top)				$ 18.83
13	W11590561		Bin, Door (6)   (Replaces: 2222777)				$ 94.23
