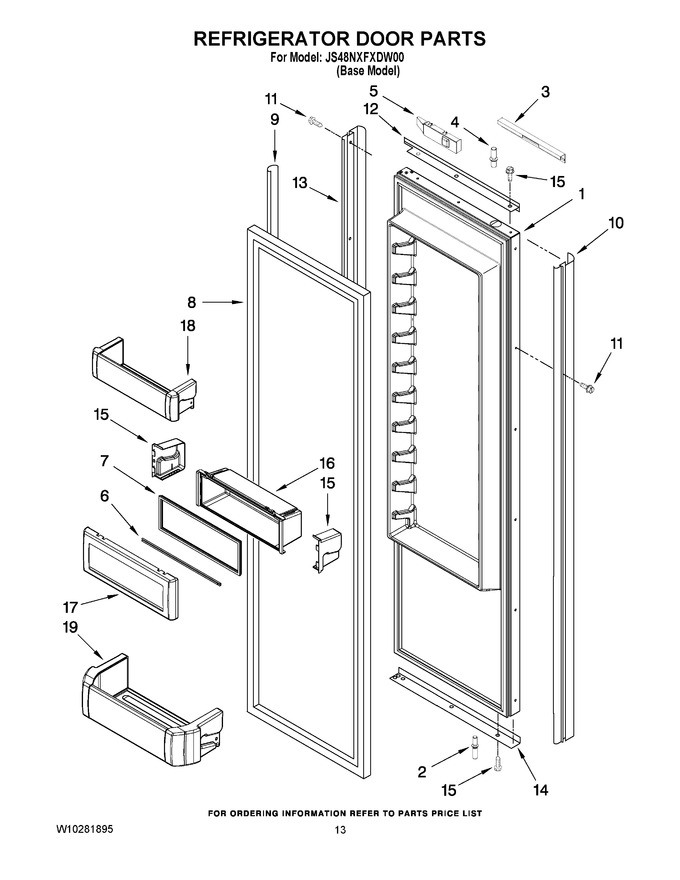

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10167383		Refrigerator Door (includes No.9)		Appelez-nous	-
2	W11337869		Pin-door, Bottom   (Replaces: W10234206)				$ 64.91
3	W10199875		Cover-door, Top				$ 149.11
4	W10234194		Pin-door, Top				$ 17.66
5	W10197766		Insert, Door Arm (bottom)				$ 17.26
5	W10197748		Insert, Door Arm (top)				$ 18.83
6	W11348580		Rail, Lid   (Replaces: 2222797)			Immediately	$ 162.13
7	W11348580		Gasket, Utility Bin   (Replaces: 2222983)			Immediately	$ 162.13
8	WP2266903		Door Gasket, Magnetic   (Replaces: 2222812)			Immediately	$ 340.02
9	W10209363		Trim, Side		Appelez-nous	-
10	W10167367		Trim-door (handle Side)				$ 73.26
11	W10825422		Screw, 8-15 X .500 (stainless Steel)   (Replaces: 8281251)				$ 11.36
12	W10182684		Trim-door, Top		Appelez-nous	-
13	W10182685		Trim-door (hinge Side)		Appelez-nous	-
14	W10182691		Trim-door, Btm		Appelez-nous	-
15	WPW10323172		End Cap (right Side)   (Replaces: 2222919)				$ 8.60
15	WPW10323173		End Cap (left Side)   (Replaces: 2222920)				$ 8.60
16	W11348580		Bin, Utility Center   (Replaces: 2222923)			Immediately	$ 162.13
17	W11348580		Door, Utility Bin   (Replaces: 2257617)			Immediately	$ 162.13
18	W11752086		Bin, Door (3)   (Replaces: 2222774)				$ 68.19
19	W10323748		Bin, Door   (Replaces: 2222771)				$ 121.78
