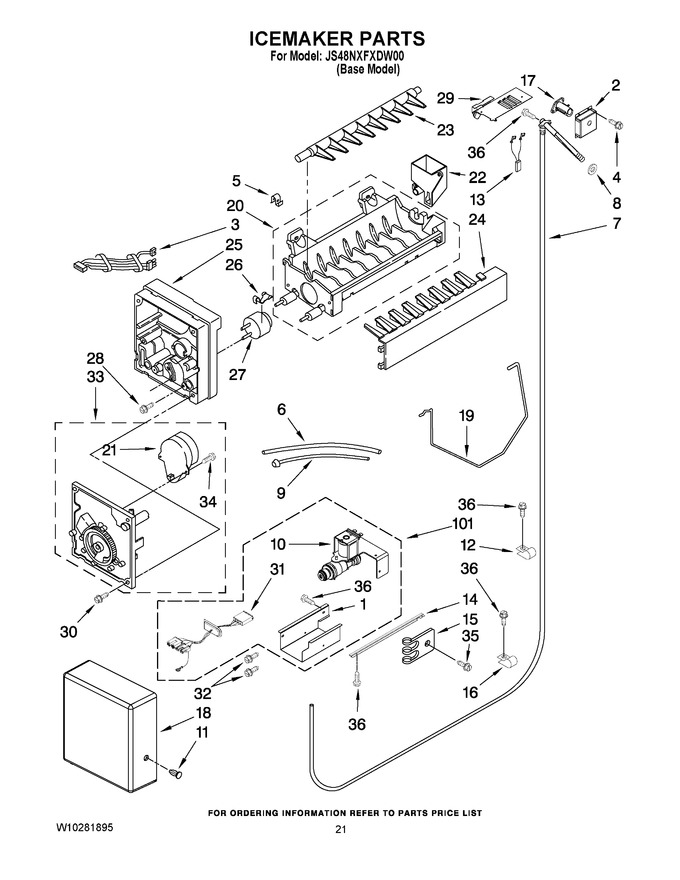

13 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10129653		Shield, Valve		Appelez-nous	-
2	2259064		Cover, Fill Tube Heater				$ 64.34
3	2310136		Wire Assembly, Icemaker				$ 178.69
4	WP488729		Screw   (Replaces: 487539)			Immediately	$ 8.28
5	WP628379		Clip, Fuse   (Replaces: 628379)				$ 11.10
6	2320654		Tube, Filter Inlet				$ 54.75
7	W11662302		Water Inlet Tube Assembly   (Replaces: 2314049)		Appelez-nous	-
8	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 10.43
9	W11533506		Tube, Filter Outlet   (Replaces: 2317912)			Immediately	$ 33.15
10	WP2307650		Valve, Solenoid   (Replaces: 2307650)			Immediately	$ 203.52
11	489115		Fastener, Snap-in				$ 5.51
12	W10833902		Clamp, Tube   (Replaces: 2221070)				$ 11.54
13	2310108		Jumper, Fill Tube Heater		Appelez-nous	-
14	2320559		Support, Valve				$ 88.79
15	WP488366		Clamp, Nylon Valve   (Replaces: 2305274)				$ 11.92
16	488937		Clamp, Tube		Appelez-nous	-
17	WP2221240		Heater, Fill Tube   (Replaces: 2221240)				$ 206.58
18	2257538		Cover		Appelez-nous	-
19	W11807379		Shut Off Arm   (Replaces: 2313990)			Immediately	$ 63.21
20	WPW10190929		Mold & Heater (also Order 542638 Silicone Grease)   (Replaces: W10122527)				$ 233.15
21	8201515		Motor   (Replaces: 626683)			Immediately	$ 141.64
22	WP628356		Cup-water Fill   (Replaces: 628356)				$ 53.75
23	WP627843		Ejector   (Replaces: 627843)				$ 87.78
24	WP2182124		Ice Striper   (Replaces: 2182124)				$ 90.35
25	WP2195914		Support   (Replaces: 2195914)				$ 109.80
26	WP2315522		Retainer Thermostat (2)   (Replaces: 2315522)				$ 11.60
27	WP627985		Thermostat (also Order 542639 Cement Alumilastic)   (Replaces: 627985)				$ 114.64
28	8533917		Screw				$ 14.04
29	WP2221231		Shield, Heat   (Replaces: 2221231)				$ 89.33
30	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
31	W10139195		Wire Assembly (water Valve)		Appelez-nous	-
32	WP489128		Screw   (Replaces: 488500)				$ 11.40
33	8201515		Module Assembly (includes Items 21 & 34)   (Replaces: 626691)			Immediately	$ 141.64
34	489136		Screw (2)				$ 10.80
35	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
36	W11624204		Screw   (Replaces: 486194)				$ 14.72
100	WPW10277450		Complete Icemaker Assembly   (Replaces: W10190971)			Immediately	$ 281.45
101	W10160031		Water Valve Assy				$ 166.99
NI	W11175806		Install Kit   (Replaces: W10249830)				$ 279.62
NI	W10234156		Block, Install Template, Wood Panels				$ 16.77
NI	W10222281		Sxs		Appelez-nous	-
NI	W10222283		Grille				$ 51.27
NI	8537055		Cleaner, Stainless Steel		Appelez-nous	-
