Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 9762761 Cooking Tips (english) Appelez-nous -
1 8113P681-60 Installation Instructions Appelez-nous -
1 8113P679-60 Owners Manual Appelez-nous -
1 W10160657 Diagram, Wiring Brochure, Safe Appelez-nous -
1 W10065852 Cooking Tips (french) Appelez-nous -
2 7733P534-60 Knob, Accusimmer (biscuit) Appelez-nous -
2 W10177198 Knob, Accusimmer (white)   (Replaces: 7733P533-60) Special Order $ 84.89

3 7101P501-60 Screw Appelez-nous -
4 3601F221-45 Baffle, Vent Cover Special Order $ 28.30

5 W10207930 Membrane Switch (white) Special Order $ 246.13

5 WPW10207932 Membrane Switch (biscuit)   (Replaces: W10207932) Special Order $ 348.15

6 W10204419 Cooktop (white) Appelez-nous -
6 W10204420 Cooktop (biscuit) Appelez-nous -
7 W10166279 Shield, Control Appelez-nous -
8 7720P532-60 Panel, Cntl Shield (white) Appelez-nous -
8 7720P533-60 Panel, Cntl Shield (biscuit) Appelez-nous -
9 W10185609 Panel, Cntl (lwr) (biscuit) Appelez-nous -
9 W10185607 Panel, Cntl (lwr) (white) Special Order $ 125.65

10 W10177202 Knob, Valve (biscuit)   (Replaces: 7733P528-60) Special Order $ 89.81

10 W10177197 Knob, Valve (white)   (Replaces: 7733P527-60) Special Order $ 20.29

11 7518P486-60 Grate, Burner Appelez-nous -
12 WPW10244448 Caps, Burner (set) Wetstone   (Replaces: W10244448) Special Order $ 231.06

13 WPW10406243 Base, Burner (6k Lr)   (Replaces: 8286181) In-Stock Immediately $ 39.08

13 WPW10406878 Base, Burner (17k Rf)   (Replaces: 8286183) Special Order $ 107.48

13 WPW10406797 Base, Burner (12k Rr, Lf)   (Replaces: 8286182) Special Order $ 92.91

14 3807F769-51 Support, Cntrl Pnl Appelez-nous -
15 WPW10177195 Control, (erc)   (Replaces: 8507P389-60) In-Stock Immediately $ 344.72

16 7724P202-60 Cover, Vent Appelez-nous -
17 W11233072 Screw   (Replaces: 7101P634-60) In-Stock Immediately $ 14.72

18 7201P143-60 Gasket Special Order $ 16.81

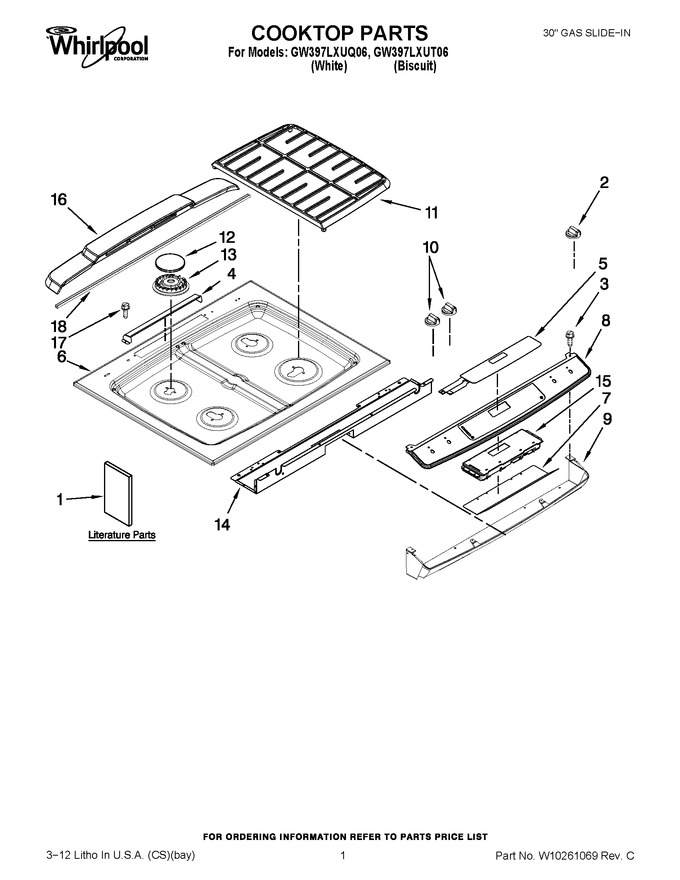

    View Diagram in Separate Window     Print Icon   Print Part List
