01 - Cooktop Parts


02 - Chassis Parts

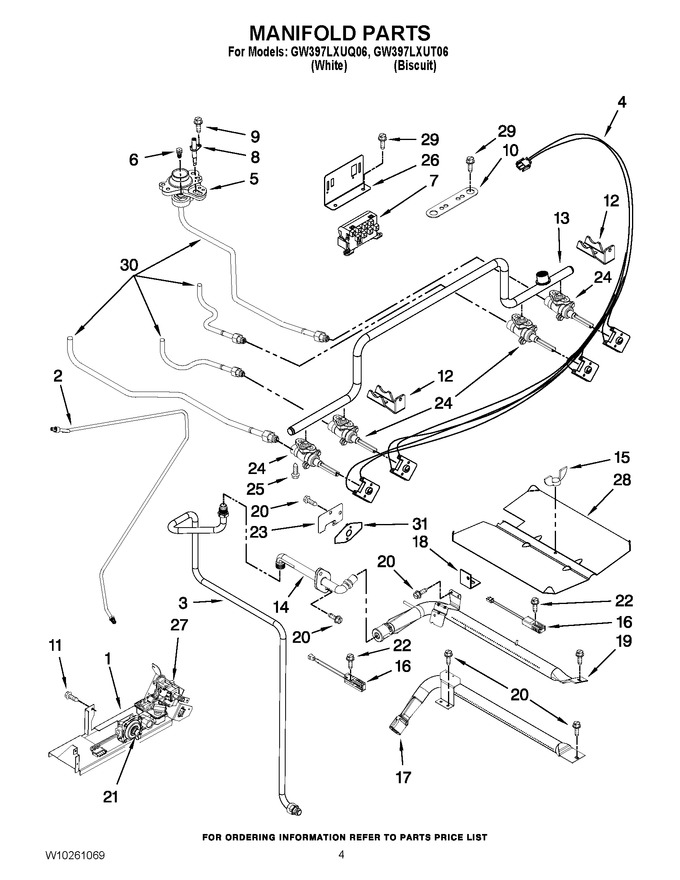

03 - Manifold Parts


04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4005F620-51		Cover, Bnr Valve		Appelez-nous	-
2	7506P535-60		Tubing, Gas Supply				$ 98.64
3	7506P536-60		Tube, Broil		Appelez-nous	-
4	7450P128-60		Harness, Valve Includes Switches		Appelez-nous	-
5	W10164497		Orifice, Holder (14k Rf)		Appelez-nous	-
5	7527P083-60		Orifice, Holder (9.2k Lf,rr)		Appelez-nous	-
5	WPW10407680		Orifice, Holder (5k,lr)   (Replaces: 7527P084-60)				$ 115.09
6	W10156836		Orifice (14k Rf)   (Replaces: 7509P124-60)				$ 105.08
6	W10156136		Orifice (9.2k Lf,rr)   (Replaces: 7509P122-60)				$ 100.66
6	7509P120-60		Orifice (5k Lr)		Appelez-nous	-
7	WP7431P064-60		Spark Module   (Replaces: 7431P064-60)				$ 324.44
8	WPW10407676		Ignitor   (Replaces: W10407676)				$ 54.77
9	WP8273062		Screw, Ignitor   (Replaces: 8273062)			Immediately	$ 7.91
10	W10160530		Retainer, Base		Appelez-nous	-
11	WP4159193		Screw   (Replaces: 7101P027-60)				$ 5.07
12	W10160655		Bracket, Manifold Mounting		Appelez-nous	-
13	W10177097		Pipe, Manifold   (Replaces: 7513P536-60)		Appelez-nous	-
14	WP74010901		Fitting, Broil   (Replaces: 7507P407-60)				$ 87.75
15	7103P030-60		Nut, Wing				$ 7.43
16	74007498		Ignitor (bake/broil)   (Replaces: 7432P106-60)				$ 87.11
17	7505P254-60		Burner, Bake		Appelez-nous	-
18	3807F480-45		Support, Bake Bnr				$ 17.01
19	7505P293-60		Burner, Broil				$ 89.91
20	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
21	WP74006035		Valve/regulator   (Replaces: 7510P079-60)				$ 308.75
22	WP4159193		Screw   (Replaces: 7101P282-60)				$ 5.07
23	4005F421-45		Cover,ignitor Wire		Appelez-nous	-
24	WPW10290838		Valve, Burner (lf, Rf, Rr)   (Replaces: 7502P566-60)				$ 285.40
24	W10836481		Valve, Burner (lr)   (Replaces: W10160941)				$ 138.93
25	W11233072		Support, Screw   (Replaces: 7101P338-60)			Immediately	$ 14.72
26	3807F752-45		Support, Spark Mod				$ 27.55
27	WP7501P232-60		Valve, Safety   (Replaces: 7501P232-60)			Immediately	$ 353.41
28	3601F307-45		Baffle (broil)				$ 200.26
28	3601F239-45		Baffle (bake)		Appelez-nous	-
29	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
30	7506P522-60		Tube, Burner (lf)		Appelez-nous	-
30	7506P523-60		Tube, Burner (rr)		Appelez-nous	-
30	7506P524-60		Tube, Burner (lr)		Appelez-nous	-
30	7506P521-60		Tube, Burner (rf)		Appelez-nous	-
31	3605F269-45		Plate, Fitting Broil		Appelez-nous	-
NI	W10168551		Spuds, Lp Gas				$ 46.31
