SELECT A DIAGRAM

01 - Cooktop Parts


02 - Chassis Parts


03 - Manifold Parts

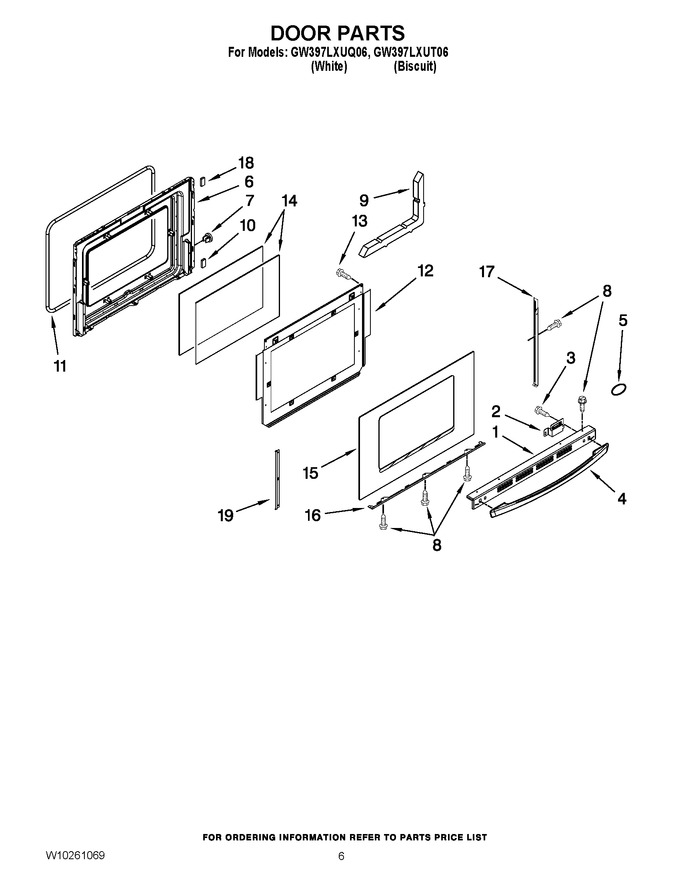

04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3608F141-78		Trim, Door Top (biscuit)		Appelez-nous	-
1	3608F141-71		Trim, Door Top (white)				$ 98.12
2	3801F832-45		Bracket, Handle (left)				$ 22.30
2	3801F831-45		Bracket, Handle (right)				$ 22.37
3	7101P208-60		Screw				$ 11.92
4	WPW10118430		Handle, Door (white)   (Replaces: W10118430)				$ 279.29
4	W10118432		Handle, Door (biscuit)		Appelez-nous	-
5	W10175320		Nameplate				$ 41.71
6	2402W312-19		Liner, Door				$ 144.50
7	WP74001574		Nut, Snap   (Replaces: 7103P141-60)			Immediately	$ 11.74
8	WP74009541		Screw, Trim (biscuit)   (Replaces: 7101P637-60)				$ 7.30
8	WP98008544		Screw, Trim (white)   (Replaces: 7101P636-60)				$ 13.87
9	7002P246-60		Insulation, Door				$ 58.49
10	WP74005546		Spacer, Rubber (1/4 X 1 X 1/2)   (Replaces: 8010P130-60)				$ 11.06
11	WPW10162384		Seal, Door   (Replaces: W10162384)			Immediately	$ 86.23
12	3601F373-51		Baffle, Retainer				$ 284.93
13	W11396735		Screw   (Replaces: W10163951)				$ 14.75
14	74003645		Glass, Inner   (Replaces: 7902P436-60)			Immediately	$ 180.59
15	7902P814-60		Glass, Tape & Logo (white)		Appelez-nous	-
15	7902P816-60		Glass, Tape & Logo (biscuit)		Appelez-nous	-
16	WP3807F708-71		Trim, Door Bottom (white)   (Replaces: 3807F708-71)				$ 168.97
16	3807F708-78		Trim, Door Bottom (biscuit)				$ 65.47
17	3608F116-78		Trim, Door Side (right (biscuit))		Appelez-nous	-
17	3608F117-78		Trim, Door Side (left (biscuit))				$ 49.72
17	WP3608F116-71		Trim, Door Side (right (white))   (Replaces: 3608F116-71)				$ 130.68
17	WP3608F117-71		Trim, Door Side (left (white))   (Replaces: 3608F117-71)				$ 130.00
18	8010P152-60		Spacer, Rubber (1/8 X 1/2 X 1/2)		Appelez-nous	-
19	3801F886-51		Bracket, Glass				$ 38.25
