SELECT A DIAGRAM

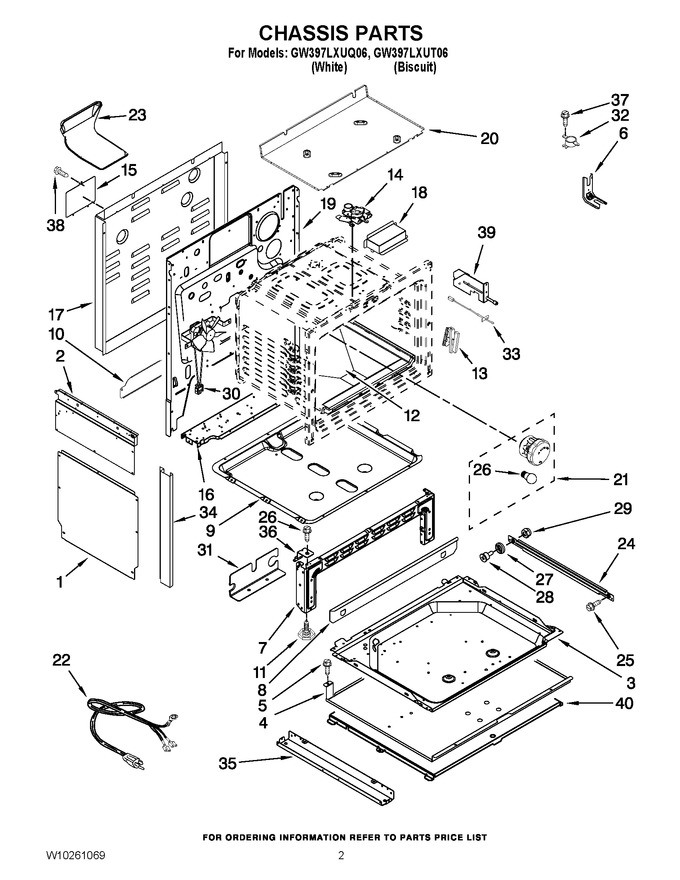

01 - Cooktop Parts


02 - Chassis Parts


03 - Manifold Parts


04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3604F416-51		Shield, Lower Side				$ 59.21
2	2618F201-51		Panel, Shield (left)				$ 32.51
2	2618F206-51		Panel, Shield (right)				$ 135.68
3	3804F245-51		Retainer, Bottom				$ 97.02
4	3604F326-45		Shield, Drawer		Appelez-nous	-
5	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.82
6	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 5.21
7	4020F036-80		Pedestal, Front				$ 31.23
8	3601F251-45		Baffle, Oven Front		Appelez-nous	-
9	3401F044-45		Pan, Burner		Appelez-nous	-
10	3826F066-51		Extension, Back				$ 7.82
11	WP74010805		Foot, Leveler   (Replaces: 7101P660-60)				$ 7.19
12	WP2205F054-19		Bottom, Oven   (Replaces: 2205F054-19)				$ 737.21
13	74011142		Hinge   (Replaces: 7106P141-60)			Immediately	$ 120.24
14	74010819		Latch Assembly   (Replaces: 8002P089-60)				$ 360.32
15	4005F612-51		Panel, Access				$ 46.13
16	3807F640-51		Support, Valve/reg				$ 31.03
17	4005F810-51		Cover, Wire Rear				$ 248.98
18	4005F750-51		Cover, Door Lock		Appelez-nous	-
19	3804F313-51		Back, Main Gas		Appelez-nous	-
20	4011F528-51		Bottom, Burner Box		Appelez-nous	-
21	WP7407P182-60		Light Assembly   (Replaces: 7407P182-60)			Immediately	$ 73.44
22	7402P086-60		Cord, Power		Appelez-nous	-
23	8026P095-60		Box, Assy Vent				$ 60.62
24	W10182835		Runner, Drawer				$ 75.89
25	W10182835		Screw				$ 75.89
26	8009		Bulb-oven   (Replaces: 7407P103-60)			Immediately	$ 18.67
27	WP74004078		Roller, Drawer   (Replaces: 8014P022-60)			Immediately	$ 11.89
28	7118P032-60		Shaft, Roller		Appelez-nous	-
29	7103P190-60		Nut, Lock		Appelez-nous	-
30	WPW10586440		Fan, Cooling   (Replaces: 7427P094-60)				$ 318.60
31	3801F951-51		Bracket,pwr Supply		Appelez-nous	-
32	7450P030-60		Switch, Limit			Immediately	$ 96.95
33	12001655		Sensor, Short   (Replaces: 7430P041-60)			Immediately	$ 45.57
34	3608F138-78		Trim, Side (biscuit)				$ 41.00
34	3608F138-71		Trim, Side (white)				$ 34.76
35	4020W035-80		Pedestal, Bottom				$ 112.82
36	3807F727-45		Support, Oven Bottom				$ 18.96
37	WPY706189		Screw   (Replaces: 7101P346-60)			Immediately	$ 7.19
38	WP4159193		Screw   (Replaces: 7101P336-60)				$ 4.77
39	WP7450P108-60		Switch, Light   (Replaces: 7450P109-60)			Immediately	$ 153.60
40	3604F327-51		Shield, Heat Pouch				$ 71.86
NI	7002P078-60		Insulation, Bottom Plate		Appelez-nous	-
NI	7002P443-60		Insulation, Lower Side				$ 41.31
NI	7002P445-60		Insulation, Back		Appelez-nous	-
NI	7002P471-60		Insulation, Wrap		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
