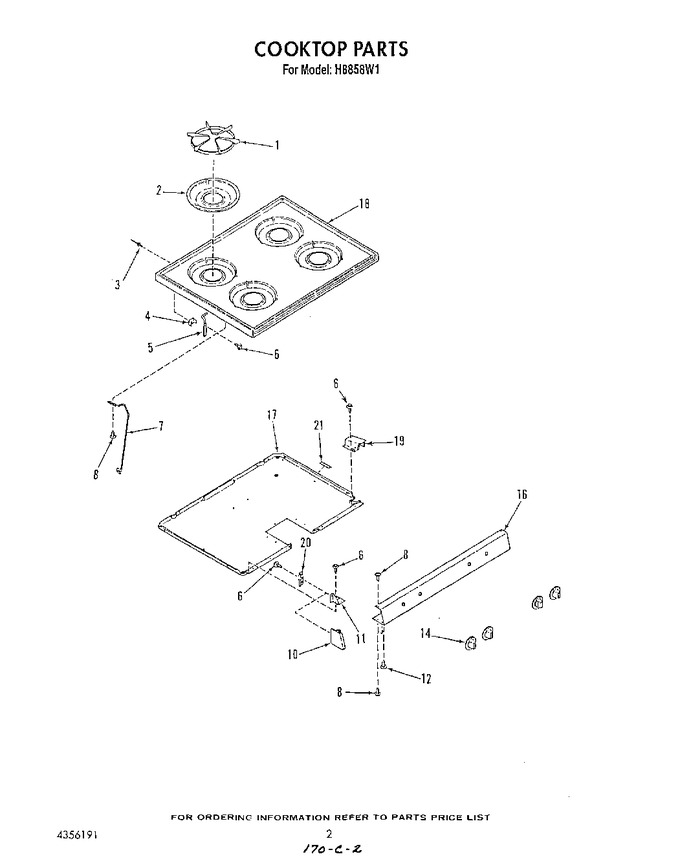

02 - Cook Top
03 - Control Panel
04 - Lower Oven
05 - Cook Top Burner
06 - Lower Oven Door
07 - Upper Oven
08 - Upper Oven Burner
09 - Door Lock
10 - Broiler And Oven Burner
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4336234 | Grate, Burner (4) |
|
- | |||||
| 2 | 4336770 | Pan, Aeration |
|
$ 20.74 | |||||
| 3 | 4338425 | Rivet |
|
- | |||||
| 4 | 4337624 | Bracket, Mounting |
|
- | |||||
| 5 | 4333234 | Hinge (right) |
|
- | |||||
| 5 | 4333235 | Hinge (left) |
|
- | |||||
| 6 | WP681414 | Screw, No.10-16 X 7/16 (Replaces: 4335248) |
|
Immediately | $ 7.62 | ||||
| 7 | 4338088 | Rod, Support |
|
- | |||||
| 8 | 4335339 | Screw |
|
- | |||||
| 10 | 4336961 | End Cap (left) |
|
- | |||||
| 10 | 4336960 | End Cap (right) |
|
- | |||||
| 11 | 4336962 | Bracket, Manifold (right) |
|
- | |||||
| 11 | 4336963 | Bracket, Manifold (left) |
|
- | |||||
| 12 | 4324647 | Screw, No.8-32 X 3/8 |
|
- | |||||
| 14 | 4337120 | Knob, Gas Valve (4) |
|
- | |||||
| 16 | 4337486 | Panel, Manifold |
|
- | |||||
| 17 | 4337005 | Bottom, Burner Box |
|
- | |||||
| 18 | 4342890 | Cooktop (white) |
|
- | |||||
| 18 | 4342891 | Cooktop (almond) |
|
- | |||||
| 19 | 4337162 | Wire Cover |
|
- | |||||
| 20 | 4337625 | Cleat |
|
- | |||||
| 21 | 4337571 | Spacer, Tubing |
|
- |
