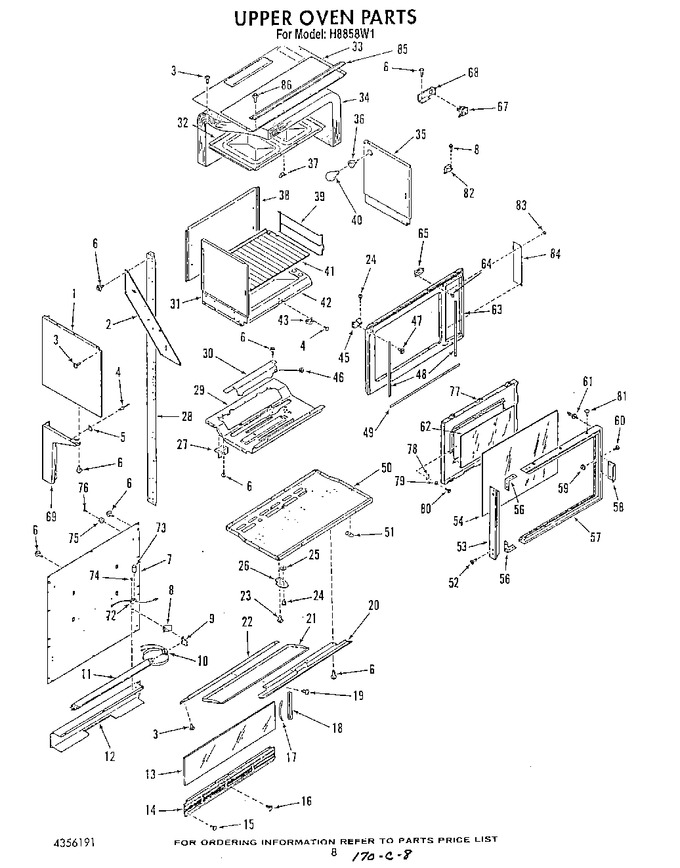

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4334015		Side-upper Oven (almond - Right)		Appelez-nous	-
1	4334016		Side-upper Oven (white - Left)		Appelez-nous	-
1	4334011		Side-upper Oven (white - Right)		Appelez-nous	-
1	4334020		Side-upper Oven (almond - Left)		Appelez-nous	-
2	4334537		Brace-cabinet Side (lt/rt)		Appelez-nous	-
3	4338182		Screw		Appelez-nous	-
4	4337328		Rivet, Pop		Appelez-nous	-
5	4326169		Retainer		Appelez-nous	-
6	W10850756		Screw, No.10-32 X 7/16   (Replaces: 4331106)				$ 7.38
7	4334347		Cover, Wire		Appelez-nous	-
8	4333305		Shield, Wire		Appelez-nous	-
9	4337894		Bracket, Lamp, (lt/rt)		Appelez-nous	-
10	4338150		Holder, Lamp (left)		Appelez-nous	-
10	4338151		Holder, Lamp (right)		Appelez-nous	-
11	4323434		Lamp, Fluorescent (20 Watt - 24``)		Appelez-nous	-
12	4338121		Cover, Wire-lamp		Appelez-nous	-
13	4338096		Glass, Lamp		Appelez-nous	-
14	4335340		Retainer, Lamp		Appelez-nous	-
15	4336048		Screw, No.6-20 X 3/8		Appelez-nous	-
16	4338182		Screw		Appelez-nous	-
17	4326279		Spring-trim End (lt/rt)		Appelez-nous	-
18	4328064		Trim, End (lt/rt)		Appelez-nous	-
19	4328025		Screw No.6-32x1/2		Appelez-nous	-
20	4333996		Filler, Trim (almond)		Appelez-nous	-
20	4333992		Filler, Trim (white)		Appelez-nous	-
21	4333426		Cover, Vent (almond)		Appelez-nous	-
21	4333422		Cover, Vent (white)		Appelez-nous	-
22	4333006		Retainer, Upper (white)		Appelez-nous	-
22	4333010		Retainer, Upper (almond)		Appelez-nous	-
23	4336631		Screw		Appelez-nous	-
24	4325683		Pin, Hinge		Appelez-nous	-
25	4334861		Washer		Appelez-nous	-
26	4334021		Hinge, Lower Door		Appelez-nous	-
27	4324079		Bracket, Orifice		Appelez-nous	-
28	4338547		Support-upper Oven (lt/rt)		Appelez-nous	-
29	4328724		Baffle, Burner		Appelez-nous	-
30	4328725		Plate, Access		Appelez-nous	-
31	4334060		Side, Oven-left		Appelez-nous	-
32	4327383		Top, Oven		Appelez-nous	-
33	4338413		Top, Cabinet (almond)		Appelez-nous	-
33	4338412		Top, Cabinet (white)		Appelez-nous	-
34	4354658		Insulation, Sides-top & Back (1 Pc.)		Appelez-nous	-
35	4334059		Side, Oven-right		Appelez-nous	-
36	W10856866		Holder, Lamp   (Replaces: 4352753)				$ 6.80
37	4333390		Clip, Therm. (2)		Appelez-nous	-
38	4329371		Back, Oven		Appelez-nous	-
39	4329398		Guide, Oven Rack (lt/rt)		Appelez-nous	-
40	8009		Bulb, Oven Light   (Replaces: 4338591)			Immediately	$ 16.80
41	4329399		Rack, Oven (1)		Appelez-nous	-
42	4326607		Bottom, Oven, (inc`s 43,44)		Appelez-nous	-
43	4334579		Clip		Appelez-nous	-
45	4325688		Hinge, Upper-door		Appelez-nous	-
46	4323684		Eyelet		Appelez-nous	-
47	WP999367		Screw No. 10-32x3/4   (Replaces: 4333332)				$ 7.70
48	4327162		Seal, Door-side		Appelez-nous	-
49	4327163		Seal, Door Bottom		Appelez-nous	-
50	4334008		Bottom, Cabinet		Appelez-nous	-
51	4334139		Support, Door		Appelez-nous	-
52	4338421		Screw No.10-32x7/16		Appelez-nous	-
53	4325705		End, Door Frame		Appelez-nous	-
54	4342684		Glass, Outer		Appelez-nous	-
56	4327160		Bracket, Dr. Frame		Appelez-nous	-
57	4329272		Frame, Oven Door		Appelez-nous	-
58	4327204		Handle, Oven Door		Appelez-nous	-
59	WP488130		Nut, Hex No.8-32   (Replaces: 4325189)				$ 6.59
60	4332885		Screw No.8-32x1/2		Appelez-nous	-
61	4327900		Strike-oven Door		Appelez-nous	-
62	4328067		Glass, Inner		Appelez-nous	-
63	4336687		Frame, Front		Appelez-nous	-
64	4323479		Screw No.8-32 X 3/16		Appelez-nous	-
64	4323636		Screw, No.8-32 X 1/8		Appelez-nous	-
65	4323616		Catch		Appelez-nous	-
67	4324061		Outlet-convenience		Appelez-nous	-
68	4327314		Bracket-disconnect		Appelez-nous	-
69	4334498		Trim-upper Oven (almond - Left)		Appelez-nous	-
69	4334493		Trim-upper Oven (almond - Right)		Appelez-nous	-
69	4334489		Trim-upper Oven (white - Right)		Appelez-nous	-
69	4334494		Trim-upper Oven (white - Left)		Appelez-nous	-
72	4337126		Starter, Base		Appelez-nous	-
73	4337125		Starter, Lamp		Appelez-nous	-
74	4327216		Screw, No.6-32 X 1/4		Appelez-nous	-
75	4337434		Bumper		Appelez-nous	-
76	WP999367		Screw, No.10-32 X 3/4   (Replaces: 4328242)				$ 7.70
77	4329273		Lining, Door		Appelez-nous	-
78	4328066		Bracket, Glass Retainer		Appelez-nous	-
79	4323694		Washer		Appelez-nous	-
80	W10850756		Screw, No.10-32 X 7/16   (Replaces: 4352748)				$ 7.38
81	4337797		Screw		Appelez-nous	-
82	4323673		Ballast		Appelez-nous	-
83	4323413		Clip		Appelez-nous	-
84	4327552		Shield, Clock		Appelez-nous	-
85	4342829		Deflector, Vent		Appelez-nous	-
86	4332521		Screw No.10-32x1/2		Appelez-nous	-
