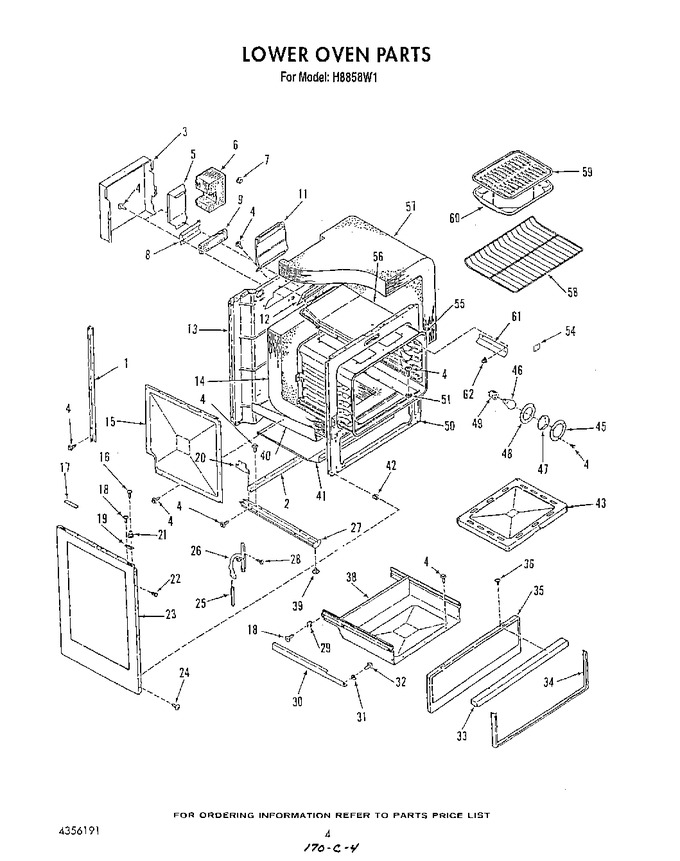

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4335147		Support		Appelez-nous	-
2	4335143		Strap		Appelez-nous	-
3	4335714		Shield, Deflector		Appelez-nous	-
4	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62
5	4336373		Wire Shield		Appelez-nous	-
6	4334948		Insulation		Appelez-nous	-
7	4334164		Bushing		Appelez-nous	-
8	4335392		Shield, Wire		Appelez-nous	-
9	4354868		Insulation		Appelez-nous	-
11	4336582		Deflector, Flue		Appelez-nous	-
12	4337789		Gasket		Appelez-nous	-
13	4342679		Back, Main		Appelez-nous	-
14	4354840		Insulation		Appelez-nous	-
15	4338426		Retainer, Insulation		Appelez-nous	-
16	4335220		Screw No.6-32x7/8		Appelez-nous	-
17	4337485		Spacer		Appelez-nous	-
18	4338182		Screw		Appelez-nous	-
19	4337184		Support, Side (left)		Appelez-nous	-
19	4337183		Support, Side (right)		Appelez-nous	-
20	4335141		Bracket, Support (left)		Appelez-nous	-
20	4335142		Bracket, Support (right)		Appelez-nous	-
21	4337082		Strike		Appelez-nous	-
22	4325611		Rivet		Appelez-nous	-
23	4337591		Side, Cabinet (white)		Appelez-nous	-
23	4337593		Side, Cabinet (almond)		Appelez-nous	-
24	4331822		Screw No.8x5/8		Appelez-nous	-
25	4342931		Spring, Oven Door		Appelez-nous	-
26	4354929		Hinge, Oven Door (left)		Appelez-nous	-
26	4354928		Hinge, Oven Door (right)		Appelez-nous	-
27	4335140		Base W/levelers		Appelez-nous	-
28	4336631		Screw		Appelez-nous	-
29	4325731		Slide Block-rear		Appelez-nous	-
30	4331092		Support, Drawer		Appelez-nous	-
31	4325732		Slide Block-front		Appelez-nous	-
32	4327611		Screw, No.10-32 X 17/32		Appelez-nous	-
33	4336754		Handle		Appelez-nous	-
34	4342576		Frame		Appelez-nous	-
35	4342932		Panel, Front		Appelez-nous	-
36	4337797		Screw		Appelez-nous	-
38	4338282		Drawer, Storage		Appelez-nous	-
39	4334834		Levelers, Leg		Appelez-nous	-
40	4336507		Retainer, Insulation		Appelez-nous	-
41	4338277		Baffle, Vent		Appelez-nous	-
42	4331381		Spacer, Expansion Nut		Appelez-nous	-
43	4337461		Bottom, Oven		Appelez-nous	-
45	4324482		Retainer, Light Lens		Appelez-nous	-
46	8009		Bulb, Oven Lamp   (Replaces: 4338591)			Immediately	$ 16.80
47	4324415		Lens, Oven Lamp		Appelez-nous	-
48	4324481		Gasket, Lens		Appelez-nous	-
49	W10856866		Holder-oven Lamp   (Replaces: 4323560)				$ 6.80
50	4338086		Frame, Oven Front		Appelez-nous	-
51	4323206		Washer		Appelez-nous	-
54	4338588		Plug, Button		Appelez-nous	-
55	4337958		Oven Body		Appelez-nous	-
56	4335382		Flue Box		Appelez-nous	-
57	4335963		Insulation, Top And Sides		Appelez-nous	-
58	4354754		Oven Rack		Appelez-nous	-
59	4396923		Broiler, Grid Pan   (Replaces: 4334897)			Immediately	$ 54.64
60	4396923		Pan, Broiler   (Replaces: 4336602)			Immediately	$ 54.64
61	4337457		Shield		Appelez-nous	-
62	4333390		Clip		Appelez-nous	-
