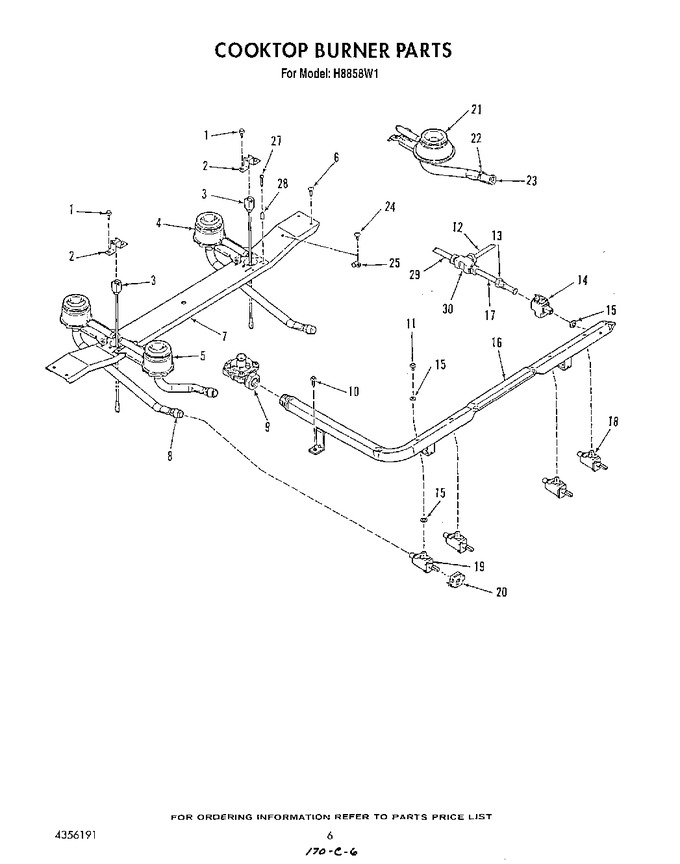

05 - Cook Top Burner


06 - Lower Oven Door


07 - Upper Oven


08 - Upper Oven Burner


09 - Door Lock


10 - Broiler And Oven Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489128		Screw No.8-32x3/8   (Replaces: 4323625)				$ 10.26
2	4331307		Bracket, Ignitor		Appelez-nous	-
3	4338584		Electrode (left)		Appelez-nous	-
3	4338583		Electrode (right)		Appelez-nous	-
4	4342874		Burner-rear, Lt. Or Rt. (incl. No.8)		Appelez-nous	-
5	4342875		Burner, Front-lt. Or Rt. (incl. No.8)		Appelez-nous	-
6	4335339		Screw No.6-32x3/8		Appelez-nous	-
7	4337013		Support, Top Burner		Appelez-nous	-
8	4342896		Air Shutter		Appelez-nous	-
9	4334271		Regulator		Appelez-nous	-
10	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62
11	4331097		Screw		Appelez-nous	-
12	4342895		Tubing, 3/8``		Appelez-nous	-
13	4324278		Nut, Inverted 3/8		Appelez-nous	-
14	4335080		Valve, Shut Off		Appelez-nous	-
15	4331665		Seal		Appelez-nous	-
16	4336920		Manifold		Appelez-nous	-
17	4342897		Tubing, 3/8``		Appelez-nous	-
18	4337484		Gas Valve, Right Front (inc`s No.11)		Appelez-nous	-
19	4336715		Gas Valve, Rt Rear Lt. Frt, Lt. Rear (inc`s No.11)		Appelez-nous	-
20	4330739		Switch, Gas Valve				$ 57.26
21	4342927		Rt. Front Burner (inc`s 22 & 23)		Appelez-nous	-
22	4328513		Screw, Adjustment		Appelez-nous	-
23	4342928		Air Shutter		Appelez-nous	-
24	4325611		Rivet		Appelez-nous	-
25	4342929		Clamp		Appelez-nous	-
27	4335220		Screw No.6-32x7/8		Appelez-nous	-
28	4337565		Eyelet		Appelez-nous	-
29	4342930		Tubing, 3/8``		Appelez-nous	-
30	4324930		Fitting		Appelez-nous	-
