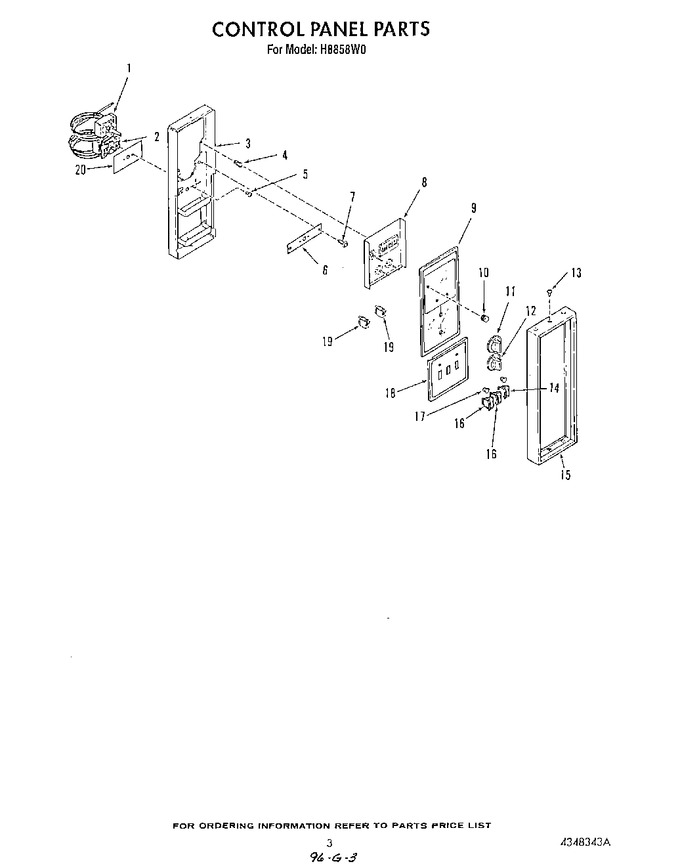

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4354508		Thermostat-upper		Appelez-nous	-
2	4336144		Thermostat-lower		Appelez-nous	-
3	4342933		Mounting Panel		Appelez-nous	-
4	4327282		Clip		Appelez-nous	-
5	4323479		Screw No.8-32 X 3/16		Appelez-nous	-
6	4336236		Bracket		Appelez-nous	-
7	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62
8	4336145		Clock		Appelez-nous	-
9	4338531		Glass		Appelez-nous	-
10	4337111		Knob, Clock		Appelez-nous	-
11	4338491		Knob, Upper Thermostat		Appelez-nous	-
12	4338393		Knob, Lower Thermostat		Appelez-nous	-
13	4332521		Screw No.10-32x1/2		Appelez-nous	-
14	WP4314961		Switch, Timed Bake   (Replaces: 4337455)				$ 84.56
15	4325813		Frame, Control Panel		Appelez-nous	-
16	WP4314961		Switch, Fluorescent Light   (Replaces: 4337275)				$ 84.56
17	WP9750343		Lens, Indicator Light   (Replaces: 4336632)			Immediately	$ 5.40
18	4338395		Panel, Control		Appelez-nous	-
19	4336633		Light, Indicator		Appelez-nous	-
20	4336249		Barrier		Appelez-nous	-
