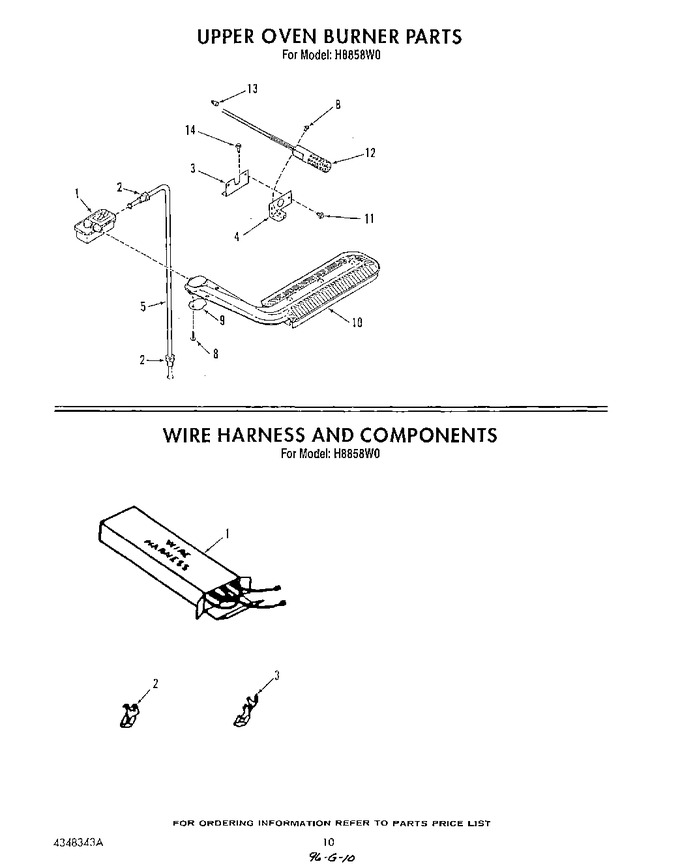

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4334960 Valve, Control Appelez-nous -
2 4324278 Nut, Inverted 3/8 Appelez-nous -
3 4334578 Bracket, Igniter Appelez-nous -
4 4331163 Bracket, Igniter Appelez-nous -
5 4336638 Tubing 3/8`` (tee To Control Valve) Appelez-nous -
8 4323953 Screw No.10-32x1/4 Appelez-nous -
9 4333875 Air Shutter Appelez-nous -
10 4336670 Oven Burner Appelez-nous -
11 4323394 Screw, No.10 X 3/8 Appelez-nous -
12 4342528 Igniter   (Replaces: 4338008) In-Stock Immediately $ 98.63

13 WP4323866 Connector-wire (2)   (Replaces: 4323866) Special Order $ 10.48

14 W10850756 Screw, No.10-32 X 7/16   (Replaces: 4331106) Special Order $ 7.38

LIT4356194 Owner`s Manual Appelez-nous -
LIT4348343A Repair Parts List Appelez-nous -
A1 4335970 Harness, Wire (igniter) Appelez-nous -
A1 4336046 Harness, Wire (switches, Valve) Appelez-nous -
A1 4338394 Harness, Wire (main - Upper) Appelez-nous -
A1 4338392 Harness, Wire (main - Lower) Appelez-nous -
A2 4325035 Terminal, Flag Appelez-nous -
A3 WP285432 Terminal, Faston (1/4``)   (Replaces: 4325037) Special Order $ 7.34

A3 4325036 Terminal, Faston (3/16``) Appelez-nous -
