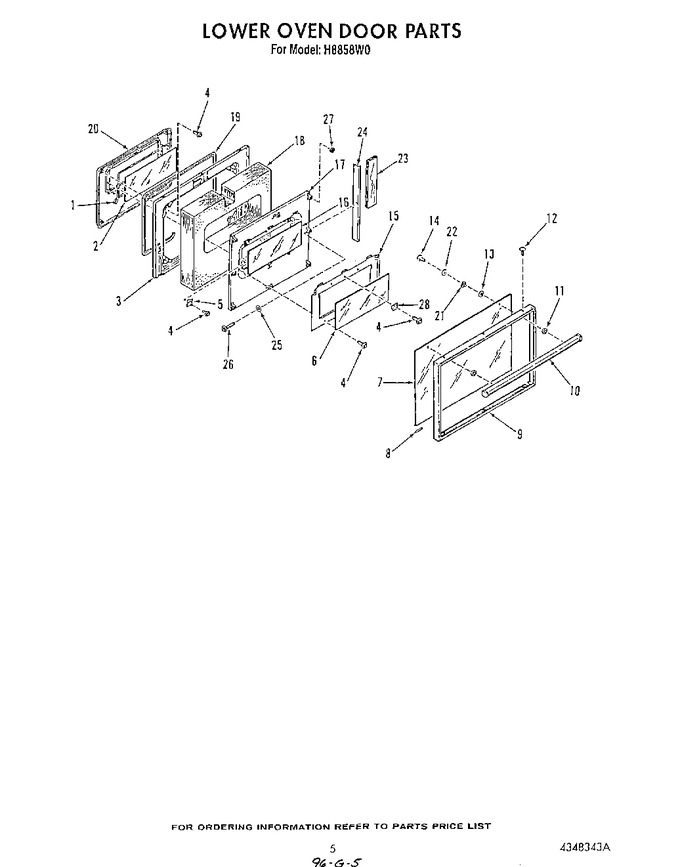

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4342634		Seal, Inner Glass		Appelez-nous	-
2	4337767		Glass-inner		Appelez-nous	-
3	4336608		Lining, Door		Appelez-nous	-
4	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62
5	4331472		Retainer, Glass		Appelez-nous	-
6	4334821		Glass, Intermediate		Appelez-nous	-
7	4342684		Glass, Outer		Appelez-nous	-
8	4324217		Cushion		Appelez-nous	-
9	4336719		Frame, Door		Appelez-nous	-
10	4336828		Handle		Appelez-nous	-
11	4323997		Spacer, Handle		Appelez-nous	-
12	4336631		Screw		Appelez-nous	-
13	4336868		Washer		Appelez-nous	-
14	WP999367		Screw, No.10-32 X 3/4   (Replaces: 4328242)				$ 7.70
15	4335753		Mounting Plate		Appelez-nous	-
16	4338251		Glass, Center		Appelez-nous	-
17	4335756		Retainer, Insulation		Appelez-nous	-
18	4354947		Insulation		Appelez-nous	-
19	4342564		Gasket, Door		Appelez-nous	-
20	4337448		Plug, Door Lining		Appelez-nous	-
21	4336869		Spacer, Glass		Appelez-nous	-
22	4323694		Washer		Appelez-nous	-
23	4354946		Insulation		Appelez-nous	-
24	4337579		Baffle, Side		Appelez-nous	-
25	4333871		Washer		Appelez-nous	-
26	4350930		Screw, No.10 X 1		Appelez-nous	-
27	4337618		Washer, Felt		Appelez-nous	-
28	4334791		Retainer, Glass		Appelez-nous	-
