09 - Door Lock


10 - Broiler And Oven Burner

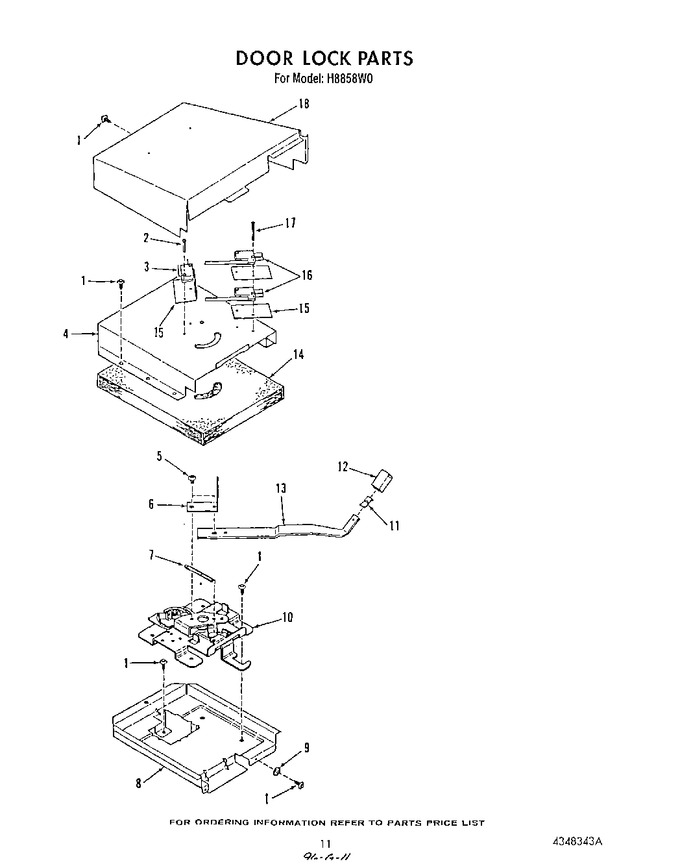

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62
2	4335881		Screw No.4-40x11/16		Appelez-nous	-
3	4335972		Switch, Micro		Appelez-nous	-
4	4337019		Cover, Lock Box		Appelez-nous	-
5	4326551		Screw, No.10-24 X 1/4		Appelez-nous	-
6	4337626		Extension, Handle		Appelez-nous	-
7	4331536		Spring		Appelez-nous	-
8	4337018		Box, Lock		Appelez-nous	-
9	4323206		Washer		Appelez-nous	-
10	4335767		Latch Assembly (inc`s No.7)		Appelez-nous	-
11	4335705		Clip, Knob		Appelez-nous	-
12	4337568		Knob, Lock		Appelez-nous	-
13	4337038		Handle, Latch		Appelez-nous	-
14	4335703		Insulation		Appelez-nous	-
15	4335973		Insulator, Switch (3 Req.)		Appelez-nous	-
16	4335971		Switch, Micro		Appelez-nous	-
17	4336487		Screw, No.4-40 X 1 9/16		Appelez-nous	-
18	4337034		Cover, Wire		Appelez-nous	-
