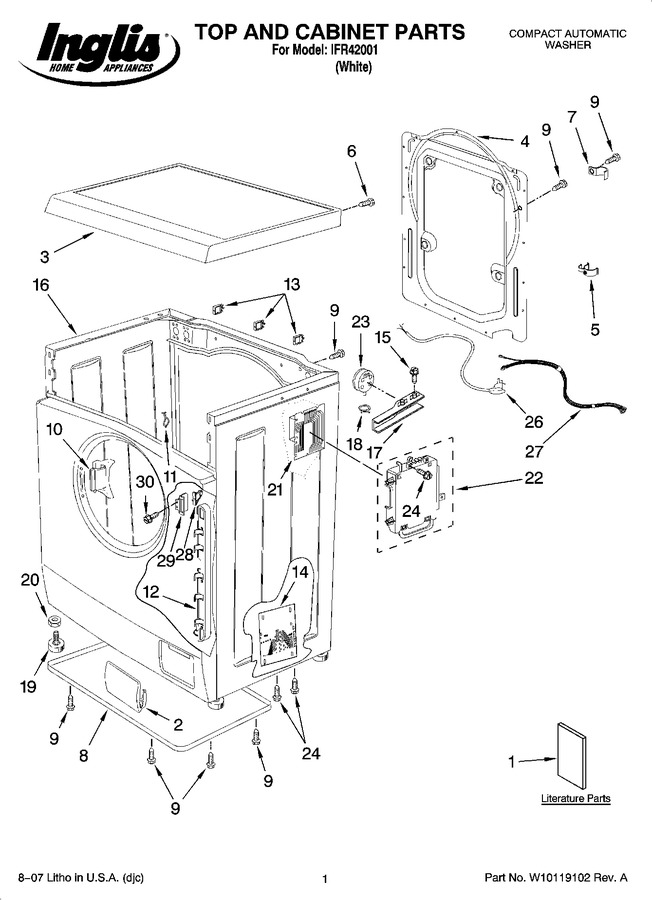

01 - Top And Cabinet Parts
02 - Control Panel Parts
03 - Door Parts
04 - Dispenser Parts
05 - Basket And Tub Parts
06 - Pump Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10156738 | Wiring Diagram |
|
- | |||||
| 1 | 8578920 | Use & Care Guide |
|
- | |||||
| 2 | 8183143 | Cover, Filter |
|
$ 90.10 | |||||
| 3 | 8182719 | Top |
|
$ 140.51 | |||||
| 4 | 8183139 | Panel, Rear |
|
- | |||||
| 5 | 8182325 | Clamp, Hose |
|
- | |||||
| 6 | W11233072 | Screw (Replaces: 8182338) |
|
Immediately | $ 14.72 | ||||
| 7 | 8182324 | Clamp, Hose |
|
- | |||||
| 8 | 8183142 | Bottom Plate |
|
- | |||||
| 9 | W11245710 | Screw (Replaces: 8182323) |
|
Immediately | $ 14.75 | ||||
| 11 | 8182321 | Clip, Harness |
|
- | |||||
| 12 | 8182322 | Support, Harness |
|
- | |||||
| 13 | 8182328 | Clip |
|
- | |||||
| 14 | 8183137 | Control, Inverter (motor) |
|
- | |||||
| 15 | W10119096 | Screw |
|
- | |||||
| 17 | W10119095 | Bracket, Pressure Switch |
|
- | |||||
| 18 | W10119097 | Clamp |
|
- | |||||
| 19 | 8182334 | Foot, Leveling |
|
$ 39.85 | |||||
| 20 | 8182337 | Nut |
|
$ 124.47 | |||||
| 21 | 8183273 | Electronic Control |
|
- | |||||
| 22 | 8182342 | Bracket, Control |
|
- | |||||
| 23 | 8182388 | Switch, Pressure |
|
$ 278.72 | |||||
| 24 | W11233072 | Screw (Replaces: 8182341) |
|
Immediately | $ 14.72 | ||||
| 26 | 8183135 | Power Cord |
|
$ 126.55 | |||||
| 27 | W10156737 | Harness, Main |
|
$ 212.94 | |||||
| 28 | 8182690 | Microswitch, Door |
|
$ 58.66 | |||||
| 29 | 8182718 | Bracket |
|
$ 97.61 | |||||
| 30 | 8182401 | Screw |
|
$ 16.52 |
