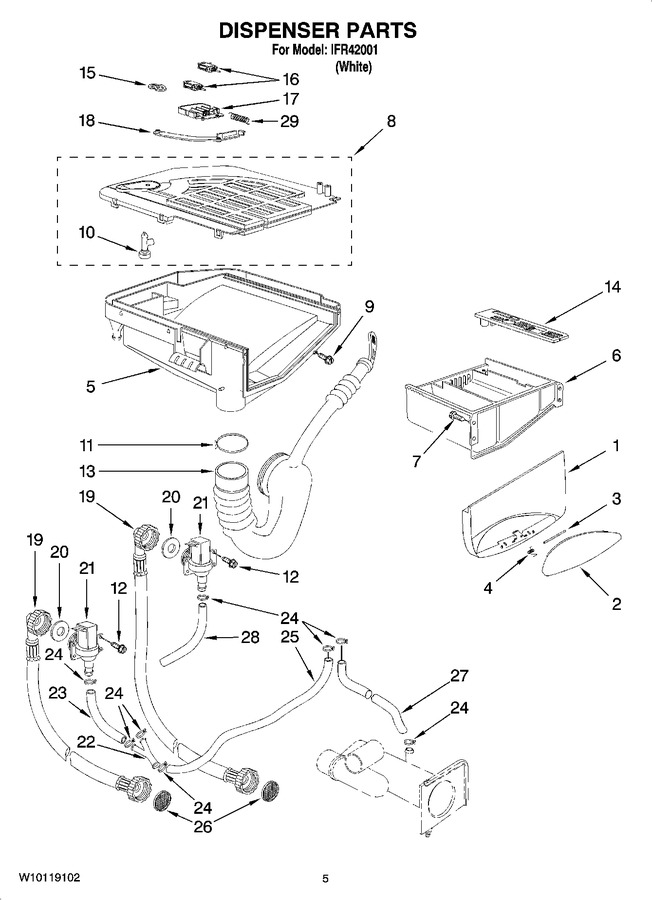

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8182907		Handle, Drawer				$ 66.37
2	8182729		Overlay				$ 114.58
3	8182383		Pin				$ 43.66
4	8182730		Spring				$ 161.48
5	8182367		Housing, Dispenser				$ 74.69
6	8182370		Drawer, Detergent				$ 88.43
7	8182377		Screw		Appelez-nous	-
8	8182727		Cover, Drawer				$ 97.61
9	WP487353		Screw   (Replaces: 8182376)				$ 7.95
10	8182378		Dispenser				$ 59.21
11	WP285655		Clamp   (Replaces: 8182375)			Immediately	$ 8.81
12	W11245710		Screw   (Replaces: 8182323)			Immediately	$ 14.75
13	8182373		Hose, Drawer		Appelez-nous	-
14	8182372		Cover, Bleach				$ 72.07
15	8182379		Link				$ 64.88
16	8182366		Actautor (2)				$ 39.91
17	8182365		Bracket, Actuator		Appelez-nous	-
18	8182364		Arm				$ 30.29
19	8182397		Hose, Fill (hot)				$ 284.32
19	8182389		Hose, Fill (cold)				$ 121.29
20	8182390		Washer				$ 81.73
21	8182398		Water Valve (hot)				$ 78.76
21	8182387		Water Valve (cold)				$ 104.23
22	8182380		Connector				$ 113.94
23	WP8182399		Hose, Short   (Replaces: 8182381)				$ 165.57
24	8182374		Clamp, Hose (8)		Appelez-nous	-
25	WP8182399		Hose, Detergent Drawer   (Replaces: 8182386)				$ 165.57
26	285452A		Screen   (Replaces: 8182396)			Immediately	$ 9.69
27	WP8182399		Hose   (Replaces: 8182399)				$ 165.57
28	WP8182399		Hose, Long   (Replaces: 8182728)				$ 165.57
29	8182726		Spring				$ 47.48

    View Diagram in Separate Window       Print Part List
