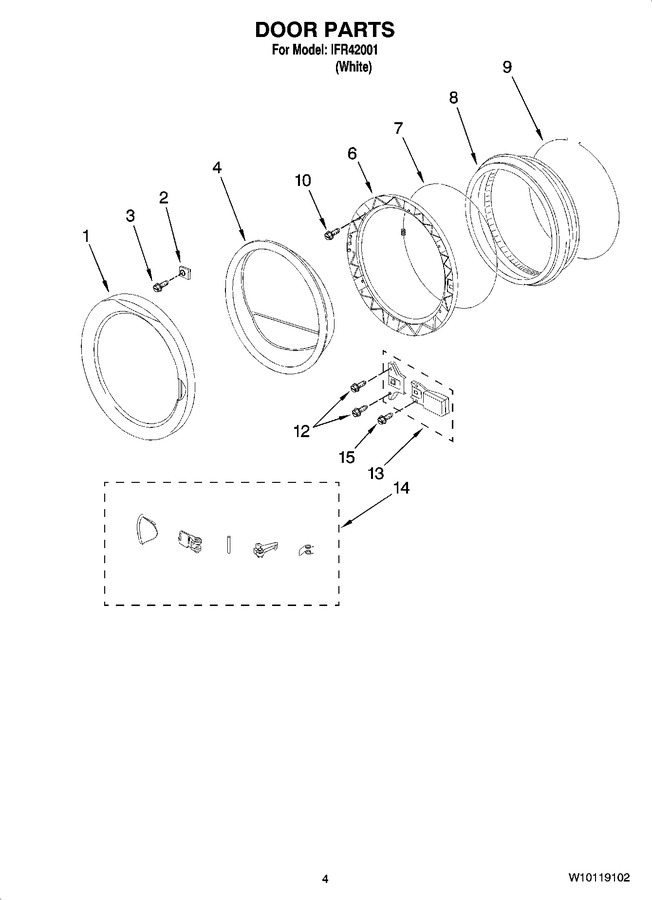

01 - Top And Cabinet Parts
02 - Control Panel Parts
03 - Door Parts
04 - Dispenser Parts
05 - Basket And Tub Parts
06 - Pump Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8183126 | Door, Outer Frame |
|
$ 113.09 | |||||
| 2 | 8182517 | Retainer |
|
$ 12.08 | |||||
| 3 | WPW10253196 | Screw (Replaces: 8182333) |
|
$ 4.62 | |||||
| 4 | 8182405 | Door Glass |
|
$ 127.50 | |||||
| 6 | 8182414 | Inner Frame |
|
$ 241.27 | |||||
| 7 | 8182404 | Inner Ring |
|
$ 24.66 | |||||
| 8 | 8182403 | Door Gasket |
|
$ 131.66 | |||||
| 9 | 8182402 | Outer Ring |
|
$ 33.37 | |||||
| 10 | WP489491 | Screw (Replaces: 8182733) |
|
$ 7.30 | |||||
| 12 | 8182401 | Screw |
|
$ 16.52 | |||||
| 13 | 8182407 | Microswitch & Bracket Assembly |
|
- | |||||
| 14 | 8183127 | Door Handle |
|
$ 188.21 | |||||
| 15 | WP98006631 | Screw (Replaces: 8182355) |
|
$ 7.30 |
