01 - Top And Cabinet Parts
02 - Control Panel Parts
03 - Door Parts
04 - Dispenser Parts

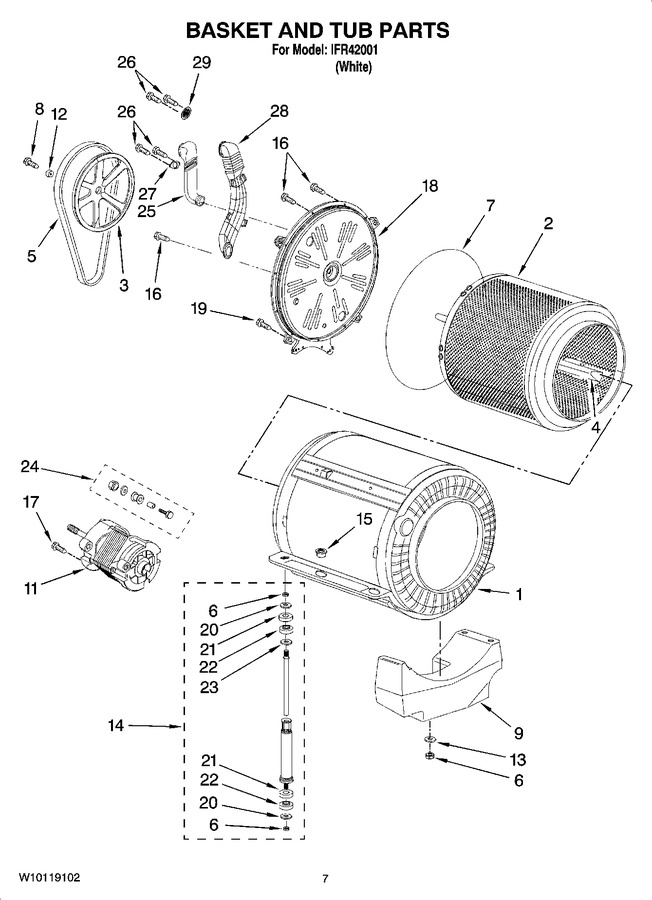

05 - Basket And Tub Parts
06 - Pump Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10158390 | Tub |
|
$ 368.88 | |||||
| 2 | 8182454 | Basket |
|
$ 432.12 | |||||
| 3 | 8182737 | Pulley |
|
$ 359.12 | |||||
| 4 | 8182444 | Baffle |
|
$ 74.70 | |||||
| 5 | 8182450 | Drive Belt |
|
$ 57.57 | |||||
| 6 | 8182739 | Nut (Replaces: 8182539) |
|
$ 352.98 | |||||
| 7 | 8182445 | Gasket, Tub |
|
$ 48.64 | |||||
| 8 | 8182440 | Screw |
|
$ 43.18 | |||||
| 9 | 8182446 | Counterweight, Bottom |
|
$ 114.35 | |||||
| 11 | 8182447 | Motor, Main Drive |
|
$ 379.41 | |||||
| 12 | 8182457 | Washer |
|
$ 52.83 | |||||
| 13 | 8182453 | Washer |
|
- | |||||
| 14 | 8183108 | Shock Absorber |
|
$ 162.26 | |||||
| 15 | 8182451 | Bushing |
|
- | |||||
| 16 | 8182432 | Screw |
|
- | |||||
| 17 | 8182458 | Screw, Ground |
|
$ 41.56 | |||||
| 18 | W10119099 | Cover, Rear Tub (includes Seal & Bearings) |
|
- | |||||
| 19 | WP12990527 | Screw (ground) (Replaces: 8182459) |
|
Immediately | $ 8.76 | ||||
| 20 | 8182436 | Washer |
|
- | |||||
| 21 | 8182437 | Bushing, Upper |
|
- | |||||
| 22 | 8182438 | Bushing, Lower |
|
- | |||||
| 23 | 8182442 | Washer |
|
- | |||||
| 24 | 8182739 | Kit, Motor Mount |
|
$ 352.98 | |||||
| 25 | 8182736 | Vent Tube, Upper |
|
- | |||||
| 26 | WP12990527 | Screw (Replaces: 8182412) |
|
Immediately | $ 8.76 | ||||
| 27 | 8182568 | Ring, Locking |
|
- | |||||
| 28 | 8183133 | Vent Tube |
|
$ 378.28 | |||||
| 29 | 8183265 | Plate, Air Passage |
|
$ 30.08 |
