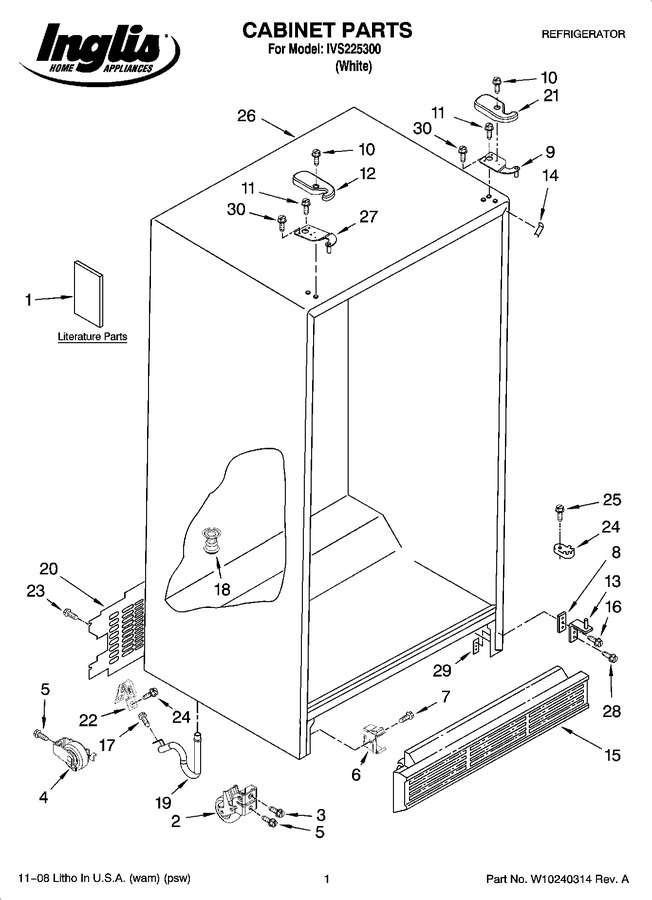

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2216001 | Instruction Sheet (door Removal) |
|
- | |||||
| 1 | 2311147 | Use & Care Guide |
|
- | |||||
| 1 | W10158912 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10202987 | Energy Guide |
|
- | |||||
| 2 | 2174748 | Front Roller (2) |
|
- | |||||
| 3 | W10850698 | Screw (Replaces: 3400517) |
|
$ 14.42 | |||||
| 4 | WPW10250570 | Roller (rear) (2) (Replaces: 2196236) |
|
$ 42.18 | |||||
| 5 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 8.11 | ||||
| 7 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 8 | 2209697 | Shim (2) |
|
$ 41.25 | |||||
| 9 | WP2203771 | Hinge Top (rc) (Replaces: 2203771) |
|
$ 103.13 | |||||
| 10 | WP8281227 | Screw (Replaces: 8281227) |
|
$ 10.96 | |||||
| 11 | 3400858 | Screw |
|
- | |||||
| 12 | W10138581 | Hinge Cover, Fc (white) |
|
- | |||||
| 13 | 8201707 | Hinge Bottom (2) (Replaces: 2217075) |
|
$ 97.45 | |||||
| 14 | WPW10283959 | Filler, Wrapper (white) (Replaces: 2201014) |
|
$ 8.21 | |||||
| 15 | W11167901 | Grille (white) (Replaces: 2198469W) |
|
$ 116.76 | |||||
| 16 | WP489497 | Screw (4) (Replaces: 3400113) |
|
Immediately | $ 29.09 | ||||
| 17 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 18 | W11566763 | Drain Fitting (Replaces: 2304888) |
|
Immediately | $ 53.45 | ||||
| 19 | W11512417 | Extension Tube (Replaces: 2304937) |
|
$ 36.53 | |||||
| 20 | WP2188756 | Cover, Unit (Replaces: 2171935) |
|
$ 148.75 | |||||
| 21 | W10138576 | Hinge Cover, Rc (white) |
|
- | |||||
| 22 | 549193 | Clamp-service Cord |
|
$ 14.06 | |||||
| 23 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 8.05 | |||||
| 24 | WPW10329686 | Door Closer, Lower Cam (2) (Replaces: 2155311) |
|
Immediately | $ 5.90 | ||||
| 25 | WP489483 | Screw (2) (Replaces: 489483) |
|
$ 11.41 | |||||
| 27 | WP2203770 | Hinge Top (fc) (Replaces: 2203770) |
|
$ 100.30 | |||||
| 28 | W10856122 | Screw (2) (Replaces: 3400103) |
|
$ 8.27 | |||||
| 29 | WP2304249 | Plate, Screw (2) (Replaces: 2304249) |
|
$ 14.94 | |||||
| 30 | WP489497 | Screw (6) (Replaces: 489497) |
|
Immediately | $ 29.09 |
