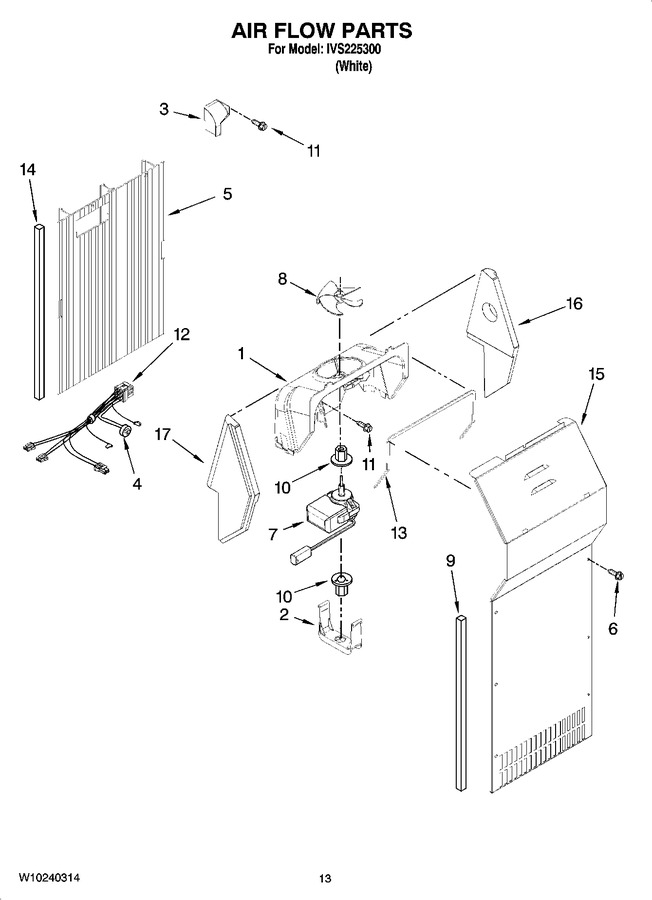

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11254898 | Fan Scroll (Replaces: 2182119) |
|
Immediately | $ 339.43 | ||||
| 2 | 2155590 | Retainer Fan Motor |
|
$ 5.83 | |||||
| 3 | W10803597 | Air Scoop (Replaces: 2161229) |
|
$ 86.12 | |||||
| 4 | WPW10225581 | Bi-metal, Defrost (Replaces: 2319914) |
|
Immediately | $ 50.77 | ||||
| 5 | W11503180 | Air Duct Freezer (Replaces: 2203592) |
|
$ 67.62 | |||||
| 6 | 4389654 | Screw (Replaces: 8281159) |
|
$ 14.58 | |||||
| 7 | 4389144 | Fan Motor (Replaces: W10131845) |
|
Immediately | $ 78.61 | ||||
| 8 | WP2169142 | Fan Blade (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 9 | WP2304241 | Gasket, Evaporator Cover (2) (Replaces: 2304241) |
|
Immediately | $ 86.94 | ||||
| 10 | WP2176759 | Fan Grommet (2) (Replaces: 2176759) |
|
$ 8.16 | |||||
| 11 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 12 | W11234406 | Harness, Fan Evaporator, And Heater, Bi-metal (Replaces: 2310240) |
|
$ 100.26 | |||||
| 13 | WP2155789 | Gasket Cover (Replaces: 2155788) |
|
$ 8.18 | |||||
| 14 | 4388500 | Gasket (Replaces: 2203875) |
|
$ 94.91 | |||||
| 15 | 2203840 | Cover, Evaporator (includes 9) |
|
- | |||||
| 16 | 4388358 | Support, R.s (Replaces: 2203595) |
|
$ 32.72 | |||||
| 17 | 4388358 | Support, L.s (Replaces: 2203596) |
|
$ 32.72 |
