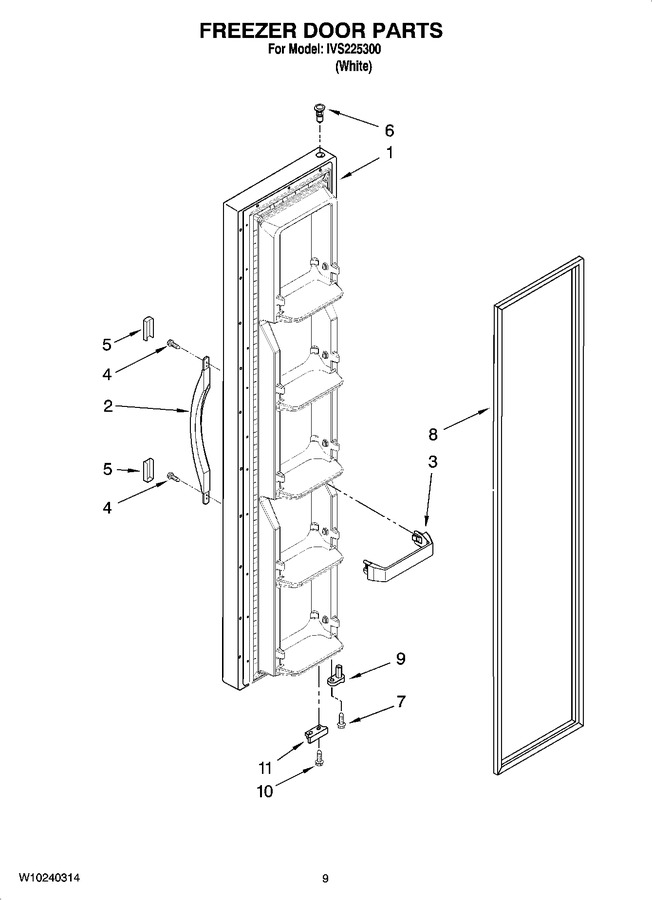

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	L2309925W		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)   (Replaces: 2309925W)				$ 1,230.00
2	2186649W		Handle, Center (white)				$ 70.49
3	WP2309717		Trivet, Shelf   (Replaces: 2309717)				$ 55.85
4	WP489491		Screw   (Replaces: 489491)				$ 6.95
5	WP2193353W		Trim, Handle (white)   (Replaces: 2193353W)				$ 8.11
6	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.76
7	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
8	2159072		Door Gasket (mist Beige Magnetic)   (Replaces: 2309604)				$ 308.19
9	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
10	WP489483		Screw   (Replaces: 489420)				$ 10.87
11	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 40.03
