Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10276348 Shelf Assembly, Spillguard (3)   (Replaces: 2309524) In-Stock Immediately $ 223.91

2 W10508993 Cover, Crisper   (Replaces: 2209698) Special Order $ 305.85

3 W10864399 Glass, Cover   (Replaces: 2179259) Special Order $ 232.03

4 2179350 Deflector Special Order $ 85.89

5 W10508993 Cover, Meat Pan   (Replaces: 2311726) Special Order $ 305.85

6 WP2188661 Crisper Pan   (Replaces: 2188653) In-Stock Immediately $ 162.07

7 WP2188664 Meat Pan   (Replaces: 2188654) In-Stock Immediately $ 92.70

8 W11223328 Stud Assembly   (Replaces: 2196485) In-Stock Immediately $ 14.77

9 WP3-24004-109 Screw   (Replaces: 3400894) Special Order $ 9.14

10 WP2196483 Stud Assembly   (Replaces: 2196483) Special Order $ 10.87

11 WP3400806 Screw   (Replaces: 8281158) Special Order $ 8.10

12 WP2179234 Trim, Handle   (Replaces: 2179234) Special Order $ 88.57

13 WP2179234 Trim, Handle   (Replaces: 2255592) Special Order $ 88.57


    View Diagram in Separate Window     Print Icon   Print Part List

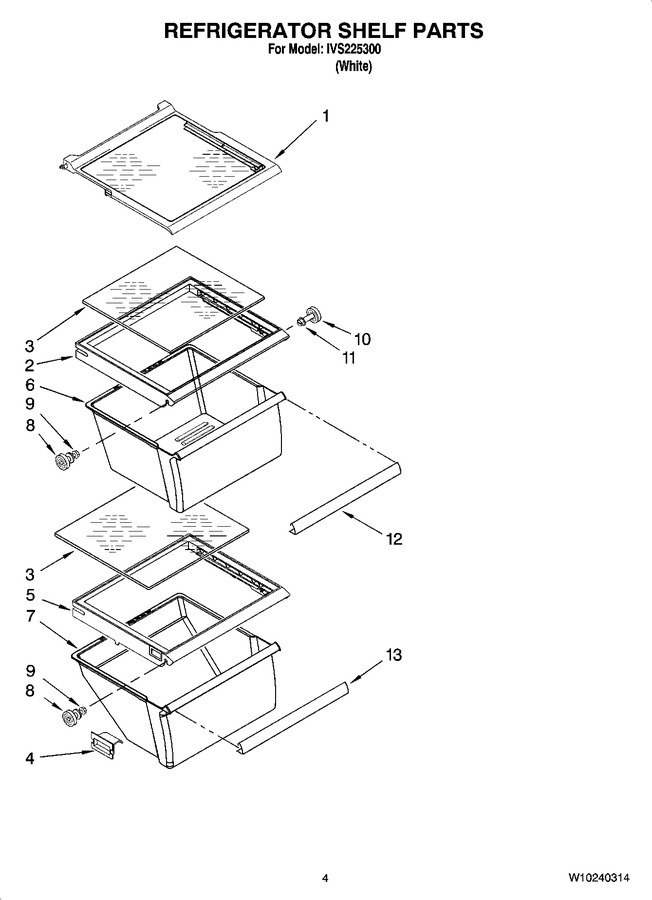

Diagram for IVS225300
