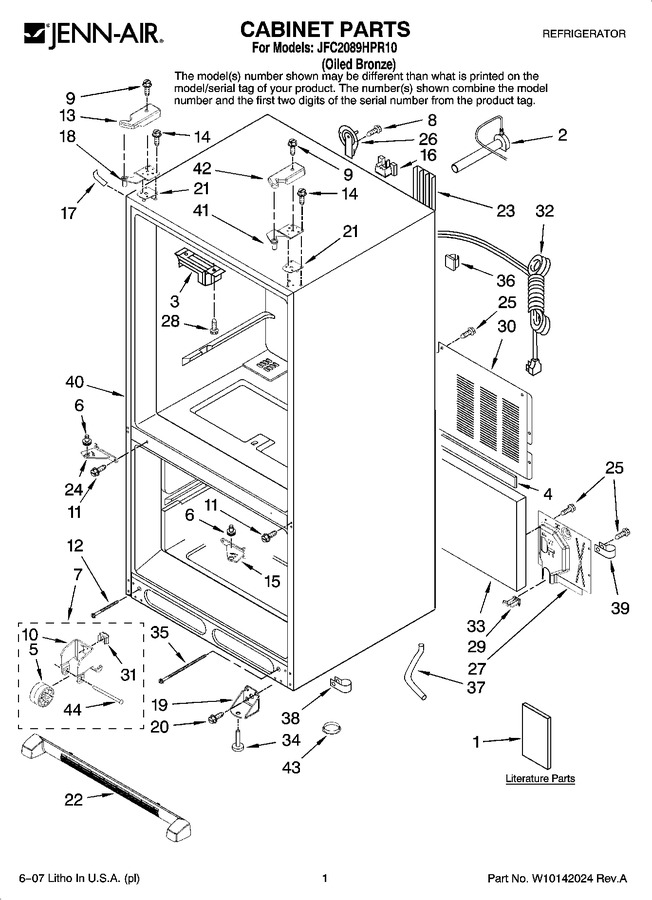

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67006616		Tech Sheet		Appelez-nous	-
1	67005575		Tag, Energy		Appelez-nous	-
1	12828168		Owners Manual		Appelez-nous	-
2	W11176463		Elbow, Fill Tube   (Replaces: W10137519)			Immediately	$ 114.15
3	WP67003405		Block, Pivot   (Replaces: 67003405)			Immediately	$ 7.82
4	B5759649		Gasket		Appelez-nous	-
5	WP10450603		Roller   (Replaces: 67005127)				$ 7.88
6	WP67006642		Pin, Center Hinge   (Replaces: 67006642)				$ 7.93
7	67006118		Roller Assy. (4)		Appelez-nous	-
8	WP98165		Screw   (Replaces: 67006287)				$ 8.00
9	WP8281196		Screw   (Replaces: 67006521)			Immediately	$ 7.19
10	12456801V		Bracket, Roller   (Replaces: 12456801)				$ 50.57
11	W11573362		Screw (6)   (Replaces: 67006380)				$ 14.02
12	71003131		Bolt, Adjusting (front)   (Replaces: 67006611)			Immediately	$ 6.74
13	W10217485		Cover, Left Hinge (black)   (Replaces: 67006726)				$ 21.64
14	WP489349		Screw (6)   (Replaces: 67006303)			Immediately	$ 7.88
15	67002960		Hinge, Center (rt) (black)		Appelez-nous	-
16	67004092		Block, Fill Tube		Appelez-nous	-
17	67003485		Cover, Corner (2) (black)			Immediately	$ 21.09
18	12626911ED		Hinge, Top Left   (Replaces: 12626908ED)				$ 84.81
19	12906303WD		Bracket, Foot (2)   (Replaces: 67007174)				$ 84.36
20	67006564		Screw (8)			Immediately	$ 7.69
21	12579702		Shim, Hinge		Appelez-nous	-
22	WPW10534153		Grille, Toe (black)   (Replaces: 67006375)				$ 147.21
23	67004102		Track, Waterline				$ 31.99
24	67002960		Hinge, Center (lt) (black)		Appelez-nous	-
25	67006425		Screw (10)			Immediately	$ 6.95
26	12726003		Cover, Water Line   (Replaces: 67003331)				$ 18.28
27	67004098		Cover, Water Valve		Appelez-nous	-
28	WP7101P126-60		Screw (2)   (Replaces: 67006669)			Immediately	$ 7.61
29	12831101		Sweep, Dual Tube   (Replaces: 67004101)				$ 12.41
30	67006101		Cover, Unit				$ 76.68
31	M0286708		Nut, Speed				$ 45.57
32	WP67006506		Cord, Power   (Replaces: 67006506)				$ 26.42
33	67003796		Insulation, Sound				$ 19.27
34	W11177593		Foot Brake   (Replaces: 67003868)				$ 11.60
35	67006697		Bolt, Adjusting (rear)				$ 12.88
36	WPM0104106		Clip (2)   (Replaces: M0104106)				$ 7.78
37	67001066		Tube, Drain				$ 55.82
38	67001067		Clip, Drain Tube				$ 9.20
39	W10833902		Clamp, Tube   (Replaces: M0108105)				$ 10.99
40	910768		Strap, Cable		Appelez-nous	-
41	12626910ED		Hinge, Top Right   (Replaces: 12626907ED)				$ 118.92
42	12629801B		Cover, Right Hinge (black)				$ 25.13
43	A3076901		Plug, Button				$ 5.70
44	M1205302		Pin				$ 5.85
