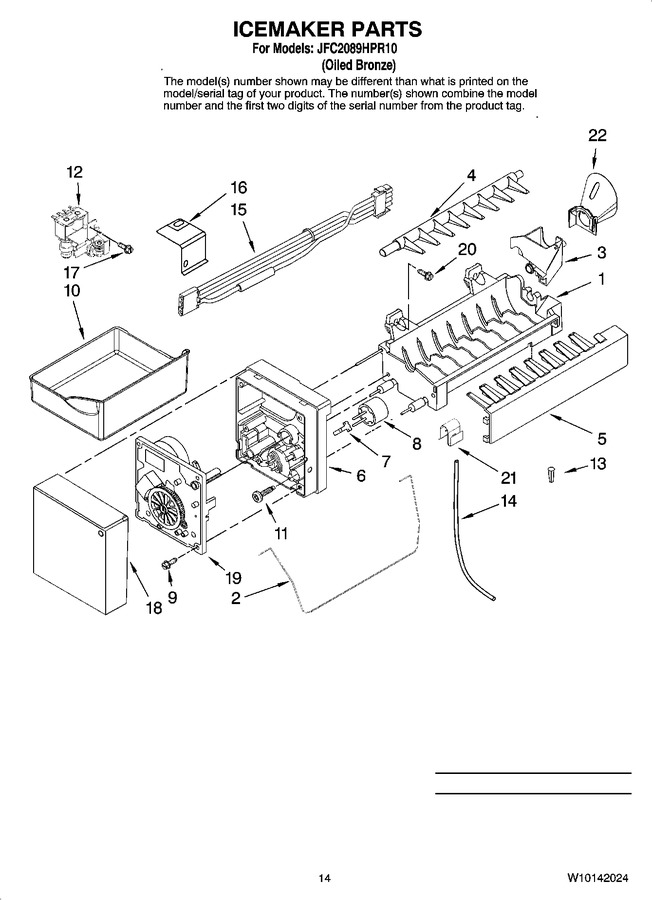

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10190929		Mold & Heater Assembly   (Replaces: 628228)				$ 233.15
2	WP67004028		Arm, Shutoff   (Replaces: 67004028)			Immediately	$ 91.35
3	W10122561		Cup, Fill   (Replaces: 628515)				$ 27.77
4	951011		Ejector		Appelez-nous	-
4	WP627843		Ejector   (Replaces: 95101-1)				$ 83.60
5	951021		Ice Stripper		Appelez-nous	-
5	WP2182124		Ice Stripper   (Replaces: 95102-1)				$ 86.05
6	WP2195914		Support, Housing   (Replaces: 2194712)				$ 104.57
7	WP2315522		Retainer, Thermostat   (Replaces: 95104-1)				$ 11.05
7	951041		Retainer, Thermostat		Appelez-nous	-
8	WP627985		Thermostat   (Replaces: 95092-1)				$ 109.18
8	950921		Thermostat		Appelez-nous	-
9	WP681249		Screw (3)   (Replaces: 95106-1)			Immediately	$ 7.86
9	951061		Screw (3)		Appelez-nous	-
10	WP67001255		Pan, Ice   (Replaces: 67001255)				$ 203.08
11	8533917		Screw (2)				$ 13.37
12	WP67006531		Valve, Water Inlet   (Replaces: 67006531)			Immediately	$ 167.68
13	WPA3223101		Insert, Tube   (Replaces: A3223101)			Immediately	$ 7.82
14	WPB5705307		Tubing, Plastic   (Replaces: 67003729)				$ 12.43
15	WPD7813010		Harness, Ice Maker   (Replaces: 67006614)			Immediately	$ 73.97
16	WP2256087		Bracket, Icemaker   (Replaces: 67002823)				$ 93.00
17	WP489128		Screw   (Replaces: 67006662)				$ 10.88
18	WPW10289690		Cover   (Replaces: 67004710)			Immediately	$ 8.40
19	8201515		Module Assembly   (Replaces: 626678)			Immediately	$ 141.64
20	WP98165		Screw (3)   (Replaces: 67006287)				$ 8.00
21	WP628379		Clip, Fuse   (Replaces: B8389801)				$ 10.57
22	12918001		Funnel, Fill Tube   (Replaces: 67005603)			Immediately	$ 12.41
100	10244904		Coupling				$ 25.37
100	4317943		Icemaker Assembly			Immediately	$ 188.95
	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
	01300019EA		Cleaner, Stnls Steel Magic   (Replaces: 20000008)			Immediately	$ 23.63
	1117510		Torx Key				$ 5.84
	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
	833938		Kit, Terminal Connector				$ 8.07
	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
	876370		Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``)				$ 231.56
	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
	W10134193		Touch-up Paint (oiled Bronze)				$ 29.91
	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
NI	542639		Cement, Alumilastic (1 1/4 Oz.)		Appelez-nous	-
NI	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
NI	833938		Kit, Terminal Connector				$ 8.07
NI	1117510		Torx Key				$ 5.84
NI	876370		Kit, Insulation (2 Pcs. X 3`` X 24`` X 48``)				$ 231.56
NI	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
NI	876370		Insulation, Fiberglass (63 1/2`` X 35 1/2`` X 2 5/8``)   (Replaces: 978941)				$ 231.56
NI	876029		Kit, Foam Slab (30`` X 32 1/2`` X 1 1/2``)		Appelez-nous	-
NI	01300019EA		Cleaner, Stnls Steel Magic   (Replaces: 20000008)			Immediately	$ 23.63
NI	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
NI	10244904		Coupling				$ 25.37
NI	W10134193		Touch-up Paint (oiled Bronze)				$ 29.91
NI	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
NI	479502		Tape, Vinyl (3/4 X 108``)				$ 66.77
NI	WP505587		Sealer, Mastic (1 Qt)   (Replaces: 505587)			Immediately	$ 173.95
NI	WP503695		Cork, Sealer (1/4 Pound)   (Replaces: 503695)				$ 117.94
NI	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
