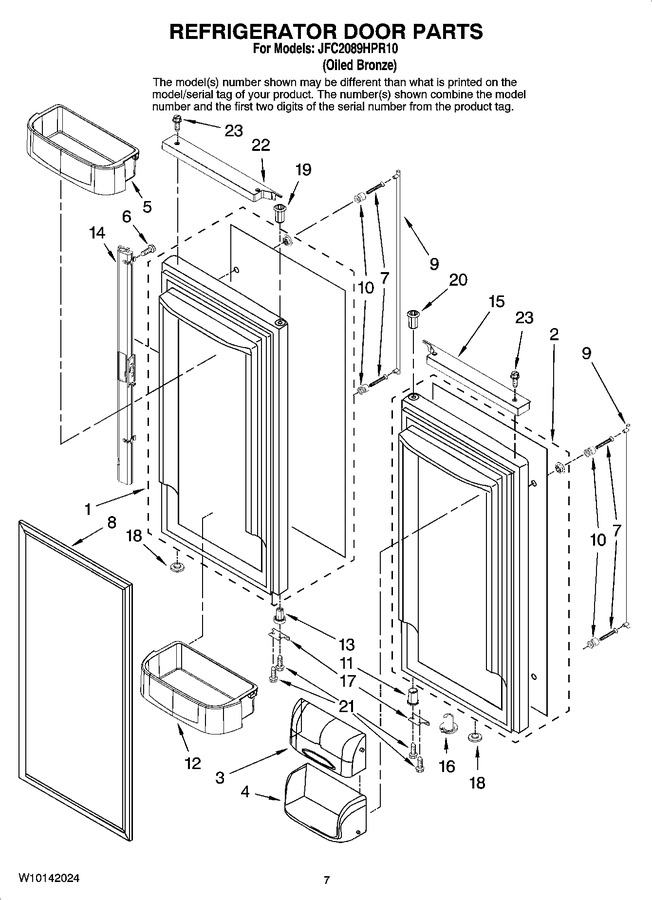

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10143255		Door, Left (oiled Bronze)		Appelez-nous	-
2	W10143254		Door, Right (oiled Bronze)		Appelez-nous	-
3	WP67003637		Door, Dairy   (Replaces: 67003637)			Immediately	$ 82.67
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 88.01
5	67004748		Bin, Shelf (3) (medium)			Immediately	$ 87.32
6	67006783		Screw		Appelez-nous	-
7	WPW10133608		Screw   (Replaces: W10133608)				$ 10.28
8	W11368721		Gasket, Door (2) (black)   (Replaces: 12723206B)			Immediately	$ 169.21
9	WP12850910		Door Handle (stainless)   (Replaces: 67004780)				$ 289.68
10	67006109		Mount, Handle		Appelez-nous	-
11	WP67002731		Bushing, Door (bottom Right)   (Replaces: 67002731)			Immediately	$ 8.24
12	67004749		Bin, Shelf (2) (gallon)				$ 90.06
13	WP67002721		Bushing, Door (bottom Left)   (Replaces: 67002721)			Immediately	$ 8.25
14	WP12722803B		Mullion, Door (black)   (Replaces: 67003264)			Immediately	$ 206.80
15	67005569		Extension, Door (right-black)		Appelez-nous	-
16	WP67003639		Closure, Door (black)   (Replaces: 67003639)				$ 90.32
17	W11708403		Stop, Door (black)   (Replaces: 67003780)			Immediately	$ 14.75
18	67004838		Plug, Button (black)				$ 11.21
19	12395501B		Bushing, Door (upper Left) (black)		Appelez-nous	-
20	67004978		Bushing, Door (upper Right) (black)				$ 22.10
21	WP98165		Screw   (Replaces: 67006287)				$ 8.57
22	67005567		Extension, Door (left-black)		Appelez-nous	-
23	340184		Screw, Extension   (Replaces: 67006679)				$ 14.11
