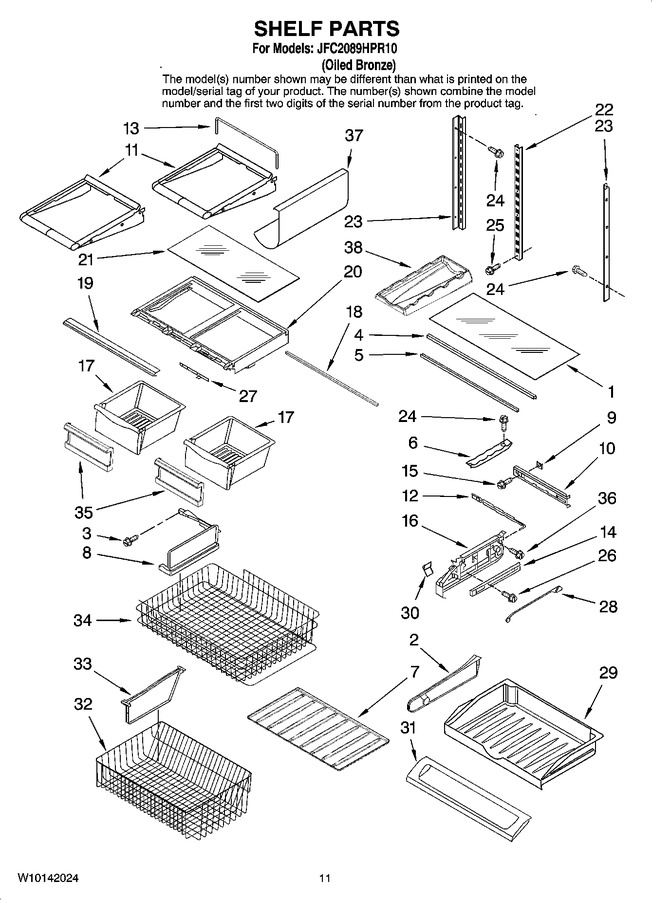

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP67002332		Glass, Pantry   (Replaces: 67002332)			Immediately	$ 239.33
2	WP67002321		Divider, Pantry Drawer   (Replaces: 67002321)				$ 32.18
3	67006608		Screw		Appelez-nous	-
4	W11812285		Extr, Glass Support (2)   (Replaces: 67006010)				$ 50.79
5	WP12227305WD		Brace, Pantry (2)   (Replaces: 67002330)				$ 103.20
6	WP67001719		Track, Pantry   (Replaces: 67001719)			Immediately	$ 8.56
7	W10332340		Tray, Basket (lower)   (Replaces: 67005988)				$ 111.39
8	67004127		Divider, Upper Basket				$ 10.10
9	67002329		Gasket, Pantry				$ 21.04
10	12656202		Housing, Control   (Replaces: 67005625)				$ 141.75
11	67003021		Shelf, Glide (4)		Appelez-nous	-
12	WP67003793		Slide, Temperature   (Replaces: 67003793)			Immediately	$ 74.75
13	67003051		Extension, Glide Shelf (4)		Appelez-nous	-
14	WPW10235370		Glide, Drawer(2)   (Replaces: 67007026)			Immediately	$ 199.80
15	67006425		Screw   (Replaces: 67006400)			Immediately	$ 6.95
16	WP12656105		Track, Pantry (left)   (Replaces: 67005862)			Immediately	$ 55.63
16	WP12656018		Track, Pantry (right)   (Replaces: 67005859)			Immediately	$ 58.87
17	WP67002659		Pan, Crisper (2)   (Replaces: 67002659)			Immediately	$ 147.67
18	WP12227304WD		Brace, Crisper   (Replaces: 67002488)				$ 103.51
19	67004724		Trim, Crisper		Appelez-nous	-
20	WP67006185		Frame, Crisper   (Replaces: 67006185)				$ 216.05
21	WP67006655		Glass, Crisper Cover   (Replaces: 67006655)			Immediately	$ 228.45
22	67001073		Ladder, Center				$ 54.18
23	67002489		Ladder, Side				$ 71.09
24	67006425		Screw (6)   (Replaces: 67006400)			Immediately	$ 6.95
25	W10709795		Screw (2)   (Replaces: 67006360)				$ 13.13
26	WP98165		Screw (4)   (Replaces: 67006287)				$ 8.00
27	WP67005864		Slide, Humidity Control   (Replaces: 67005864)			Immediately	$ 7.81
28	67003794		Rod, Temperature Control				$ 13.16
29	W11490183		Drawer, Pantry   (Replaces: 67003530)				$ 137.42
30	W11498983		Knob, Temperature Control   (Replaces: 67003791)				$ 29.18
31	W10827015		Door, Pantry Drawer   (Replaces: 67005899)			Immediately	$ 175.81
32	67006027		Basket, Freezer (lower)		Appelez-nous	-
33	67004727		Divider, Lower Basket		Appelez-nous	-
34	67004989		Basket, Freezer (upper)		Appelez-nous	-
35	67005912		Front, Crisper Pan				$ 70.62
36	WP67006415		Screw (4)   (Replaces: 67006415)				$ 7.80
37	67005999		Rack, Bottle		Appelez-nous	-
38	67001656		Trivet, Wine				$ 69.04
