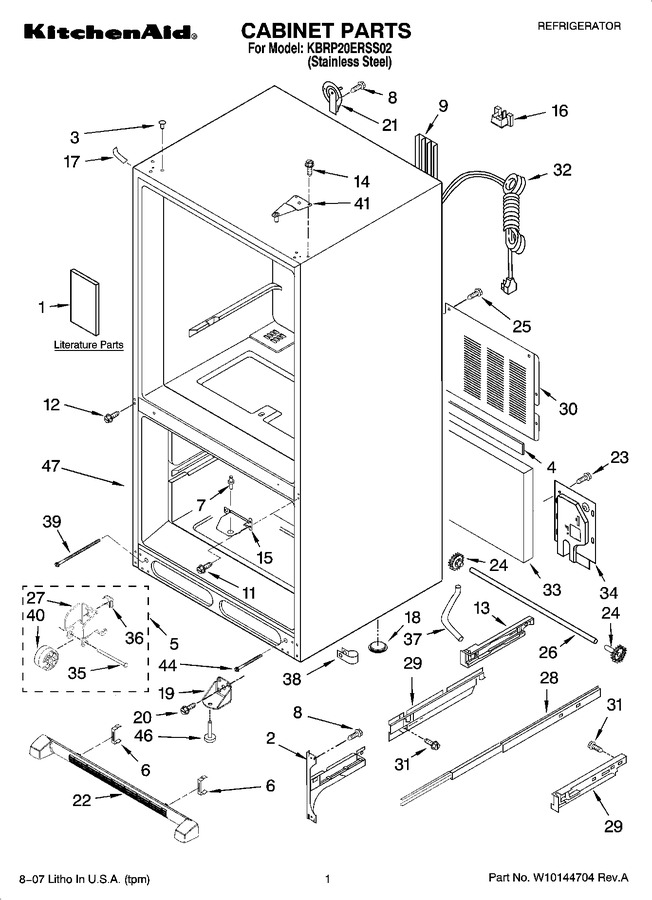

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67006616		Tech Sheet		Appelez-nous	-
1	W10136388		Owners Manual		Appelez-nous	-
1	67005750		Tag, Energy		Appelez-nous	-
2	WPW10330991		Bracket, Slide (left Side)   (Replaces: 67004732)				$ 156.49
2	WPW10330993		Bracket, Slide (right Side)   (Replaces: 67004733)				$ 158.18
3	WP12246608		Plug, Button (3)   (Replaces: 67001131)			Immediately	$ 7.76
4	B5759649		Gasket		Appelez-nous	-
5	67006118		Roller Assembly		Appelez-nous	-
6	12627302		Clip, Grille				$ 5.84
7	WP67006642		Pin, Center Hinge   (Replaces: 67006642)				$ 7.93
8	67006615		Screw		Appelez-nous	-
9	67004102		Track, Waterline				$ 31.99
11	W11573362		Screw   (Replaces: 67006380)				$ 14.02
12	WP98165		Screw   (Replaces: 67006473)				$ 8.00
13	W10251557		Slide, Door (left)   (Replaces: 67004728)				$ 102.24
13	W10251557		Slide, Door (right)   (Replaces: 67004729)				$ 102.24
14	WP489349		Screw   (Replaces: 67006303)			Immediately	$ 7.88
15	67002960		Hinge, Center		Appelez-nous	-
16	67004092		Block, Filter		Appelez-nous	-
17	67003485		Cover, Corner			Immediately	$ 21.09
18	A3076901		Plug, Button				$ 5.70
19	12906303WD		Bracket, Foot   (Replaces: 67007174)				$ 84.36
20	67006564		Screw			Immediately	$ 7.69
21	12726003		Cover, Water Line   (Replaces: 67003331)				$ 18.28
22	WPW10534153		Grille Assembly (includes Clips)   (Replaces: 67006375)				$ 147.21
23	WP489128		Screw   (Replaces: 67006662)				$ 10.88
24	12002497		Gear Kit (contains Right And Left Sides)			Immediately	$ 22.51
25	67006425		Screw			Immediately	$ 6.95
26	W11028221		Shaft, Rack   (Replaces: 67004017)				$ 31.66
27	12456801V		Bracket, Roller   (Replaces: 12456801)				$ 50.57
28	13031602		Slide, Drawer				$ 155.01
29	67004972		Track, Door (right)				$ 30.98
29	W10284690		Track, Door (left)   (Replaces: 67004971)				$ 73.76
30	12575101ED		Cover, Unit		Appelez-nous	-
31	WP489474		Screw   (Replaces: 67006406)			Immediately	$ 7.97
32	67007121		Power Cord		Appelez-nous	-
33	67003796		Insulation, Sound				$ 19.27
34	67004098		Cover, Water Valve		Appelez-nous	-
35	M1205302		Pin				$ 5.85
36	M0286708		Nut, Speed				$ 45.57
37	67001066		Tube, Drain				$ 55.82
38	67001067		Clip, Drain Tube				$ 9.20
39	71003131		Bolt, Adjusting (front)   (Replaces: 67006611)			Immediately	$ 6.74
40	W11177593		Roller   (Replaces: 67003868)				$ 11.60
41	67005827		Hinge, Top (left)		Appelez-nous	-
41	12626910ED		Hinge, Top Right   (Replaces: 12626907ED)				$ 118.92
44	67006697		Bolt, Adjusting (rear)				$ 12.88
46	W11177593		Foot, Adjustable   (Replaces: 67003868)				$ 11.60
