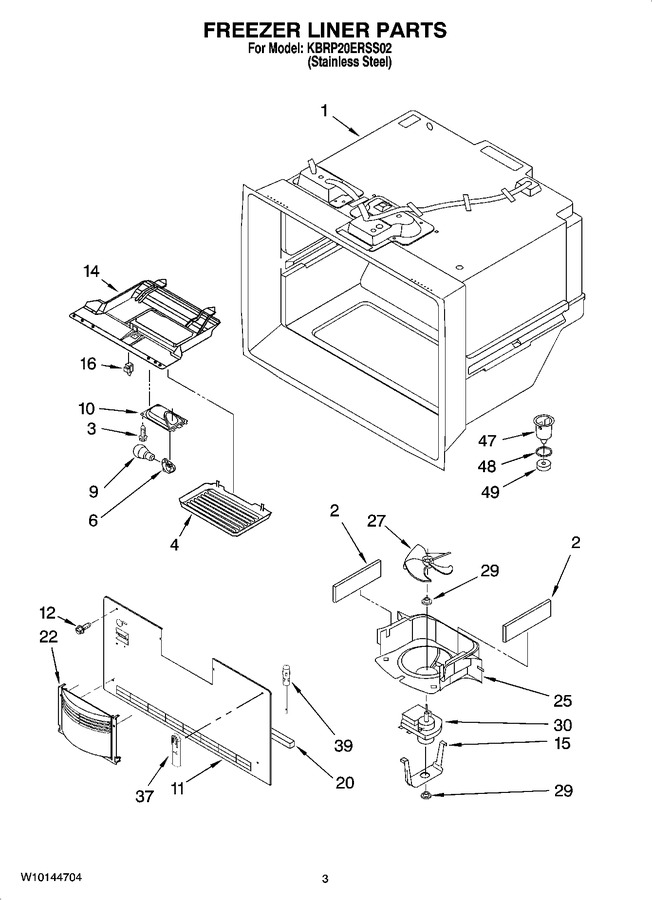

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | W10856123 | Gasket, Foam (Replaces: 67001291) |
|
Immediately | $ 7.68 | ||||
| 3 | 67006530 | Screw |
|
- | |||||
| 4 | 67003905 | Cover, Light Frz. |
|
- | |||||
| 6 | W11447232 | Light Socket (Replaces: 8170839) |
|
Immediately | $ 13.21 | ||||
| 9 | W11679940 | Light Bulb (Replaces: A0282812) |
|
Immediately | $ 11.30 | ||||
| 10 | W11702858 | Housing, Frz. Light (Replaces: 67001035) |
|
$ 85.82 | |||||
| 11 | W11727809 | Cover, Evaporator (Replaces: 67005873) |
|
$ 89.54 | |||||
| 12 | 67006425 | Screw |
|
Immediately | $ 6.95 | ||||
| 14 | WP67005633 | Housing, Light (Replaces: 67005633) |
|
$ 7.65 | |||||
| 15 | WP67005633 | Clip, Evap Motor (Replaces: 67005633) |
|
$ 7.65 | |||||
| 16 | W11396033 | Switch, Light (Replaces: 67005653) |
|
Immediately | $ 37.30 | ||||
| 20 | W11159728 | Gasket, Bottom (Replaces: 67002492) |
|
Immediately | $ 28.86 | ||||
| 22 | WPW10175909 | Cover, Fan Shroud (Replaces: 13024802) |
|
Immediately | $ 85.72 | ||||
| 25 | 67002777 | Shroud, Evap.fan |
|
$ 60.88 | |||||
| 27 | WP2169142 | Blade, Fan (Replaces: 12217201) |
|
Immediately | $ 43.41 | ||||
| 29 | WP67002780 | Grommet (2) (Replaces: 67002780) |
|
$ 7.81 | |||||
| 30 | WPW10128551 | Motor, Evaporator (Replaces: 67003636) |
|
Immediately | $ 78.75 | ||||
| 37 | WP67003924 | Cover, Thermistor (Replaces: 67003924) |
|
$ 7.82 | |||||
| 39 | 12002355 | Thermistor |
|
Immediately | $ 47.36 | ||||
| 47 | W10815413 | Funnel-drain (includes 48 & 49, Seal & Gasket) (Replaces: D7753903) |
|
Immediately | $ 49.05 | ||||
| 48 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 10.92 | |||||
| 49 | 8208199 | Harness, Lights (freezer) |
|
- | |||||
| 49 | WPB8381501 | Gasket (Replaces: B8381501) |
|
$ 7.41 |
