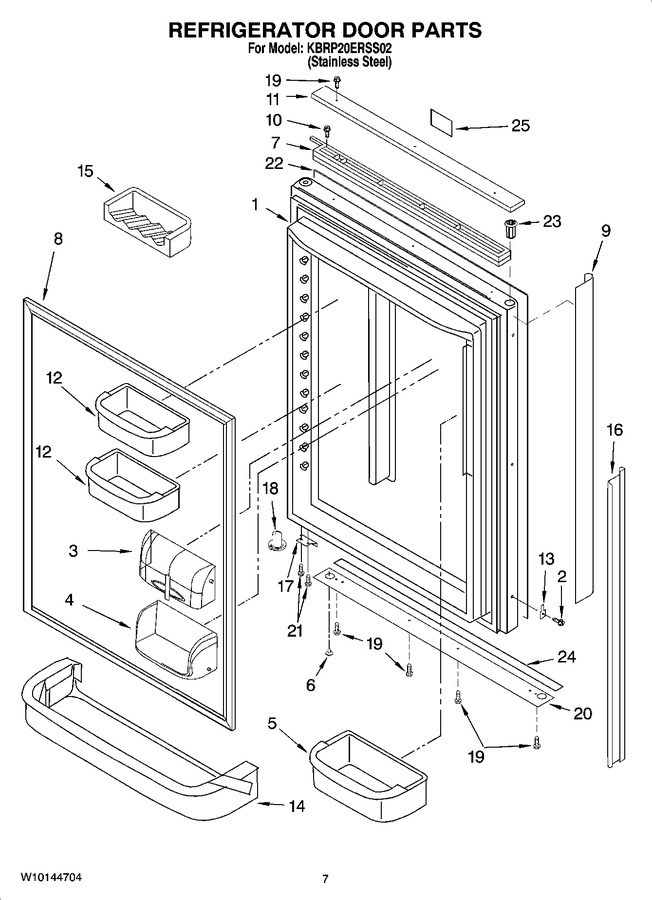

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67002116		Refrigerator Door		Appelez-nous	-
2	WP489128		Screw   (Replaces: 67006767)				$ 10.88
3	WP12744905		Door, Compartment (includes 4)   (Replaces: 67003819)				$ 108.56
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 83.82
5	67005724		Shelf Bin (medium)		Appelez-nous	-
6	67004838		Plug, Vent				$ 10.68
7	12059103		Trim, Door Extension		Appelez-nous	-
8	W10849442		Door Gasket, Magnetic   (Replaces: W10133881)				$ 344.33
9	67006130		Door Handle		Appelez-nous	-
10	WP489474		Screw   (Replaces: M0211021)			Immediately	$ 7.97
11	12521109S1		Trim, Door Top				$ 97.37
12	67005464		Shelf Bin (large)				$ 35.95
13	67002451		Clip, Trim				$ 8.44
14	67003027		Trim, Door Shelf		Appelez-nous	-
15	WP67005626		Caddy, Can   (Replaces: 67005626)				$ 77.61
16	67006228		Trim, Door (left Side)				$ 147.89
16	67006513		Trim, Door (right Side)				$ 134.98
17	W11708403		Stop, Door   (Replaces: 67003780)			Immediately	$ 14.05
18	WP67003639		Closer, Door   (Replaces: 67003639)				$ 86.02
19	WP3400805		Screw   (Replaces: 67006769)				$ 7.19
20	12521108S1		Trim, Door Bottom		Appelez-nous	-
21	WP98165		Screw, Door Stop   (Replaces: 67006287)				$ 8.00
22	W10137097		Panel, Door Stainless Steel		Appelez-nous	-
23	67004978		Bushing				$ 21.05
24	67001889		Spacer, Bottom		Appelez-nous	-
25	W10046610		Nameplate				$ 33.40
