Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 W10833902 Clip, Water Line   (Replaces: M0108105) Special Order $ 10.99

3 WP628356 Inlet, Water   (Replaces: 95100-1) Special Order $ 51.19

4 WP627843 Ejector   (Replaces: 95101-1) Special Order $ 83.60

5 WP2182124 Ice Stripper   (Replaces: 95102-1) Special Order $ 86.05

6 WP2195914 Support & Motor Assembly   (Replaces: 95103-1) Special Order $ 104.57

7 WP2315522 Retainer, Thermostat   (Replaces: 95104-1) Special Order $ 11.05

9 WP681249 Screw, (2) 10-32 X 49/64   (Replaces: 95106-1) In-Stock Immediately $ 7.86

10 W11176463 Fill Tube   (Replaces: 10463201) In-Stock Immediately $ 114.15

12 WP67006531 Valve, Dual Water   (Replaces: 67006531) In-Stock Immediately $ 167.68

14 WP67004028 Shutoff Arm   (Replaces: 67004028) In-Stock Immediately $ 91.35

15 WPD7813010 Wiring, Harness   (Replaces: 67001489) In-Stock Immediately $ 73.97

16 WP2256087 Bracket, Ice Maker   (Replaces: 2256087) Special Order $ 93.00

17 4344167 Screw Appelez-nous -
18 WPW10289690 Cover   (Replaces: 67004710) In-Stock Immediately $ 8.40

21 12831101 Bracket, Tube Support   (Replaces: 67004101) Special Order $ 12.41

26 WPA3223101 Insert, Tube   (Replaces: A3223101) In-Stock Immediately $ 7.82

27 WPB5705307 Water Tube   (Replaces: 67003729) Special Order $ 12.43

29 67002816 Clip, Waterline Special Order $ 18.24

31 WPM0114003 Clip, Speed   (Replaces: M0114003) Special Order $ 11.05

32 WP98165 Screw   (Replaces: 4343675) Special Order $ 8.00

34 WP67001255 Pan, Ice   (Replaces: 67001255) Special Order $ 203.08

35 WPM0114003 Clamp, Tube   (Replaces: M0114003) Special Order $ 11.05

100 D7824706Q Complete Icemaker Assembly In-Stock Immediately $ 167.35

4344548 Coupling Appelez-nous -
4344316 Plug, Button Appelez-nous -
8003RP Ice Maker Installation Kit   (Replaces: 18001005) In-Stock Immediately $ 43.29

4344549 Plug, Hole Appelez-nous -
4388878 Tube Clamp Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

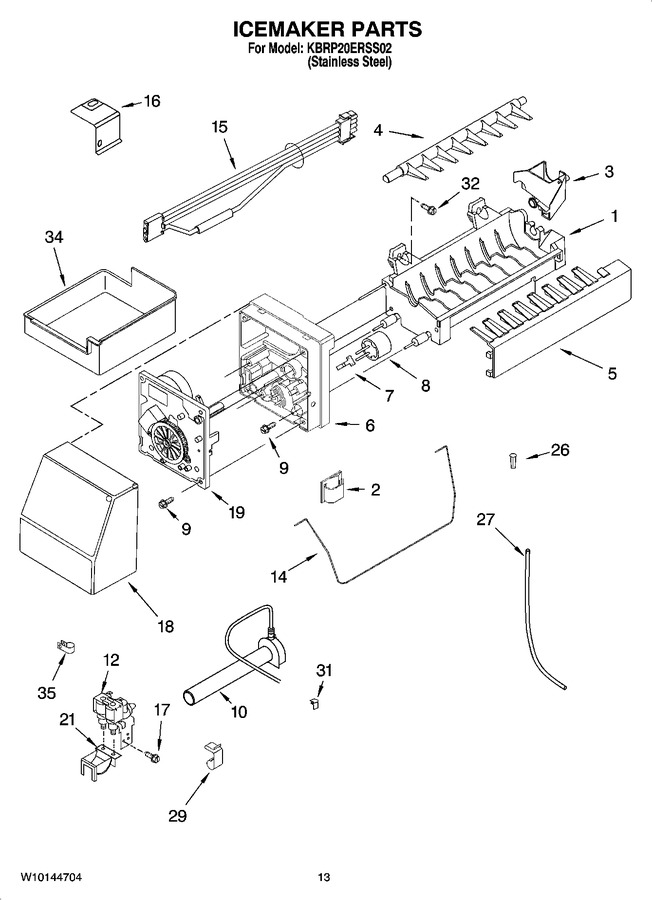

Diagram for KBRP20ERSS02
