SELECT A DIAGRAM

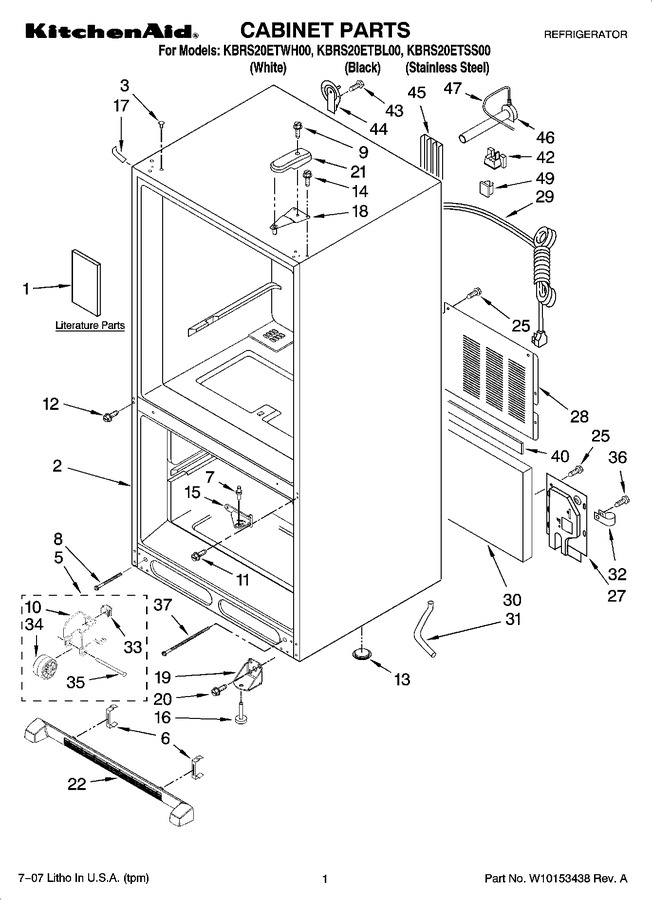

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10136388		Owners Manual		Appelez-nous	-
1	W10136377		Energy Tag		Appelez-nous	-
1	67006616		Tech Sheet		Appelez-nous	-
3	WP12246608		Plug, Button (3) (black)   (Replaces: 67001131)			Immediately	$ 7.76
3	WP67001130		Plug, Button (3) (white)   (Replaces: 67001130)			Immediately	$ 5.98
5	67002227		Roller Assembly		Appelez-nous	-
6	12627302		Clip, Grille				$ 5.84
7	WP67006642		Pin, Center Hinge   (Replaces: 67006642)				$ 7.93
8	71003131		Bolt, Adjusting (rear)   (Replaces: 67006611)			Immediately	$ 6.74
9	WP8281196		Screw   (Replaces: 67006521)			Immediately	$ 7.19
10	12456801V		Bracket, Roller   (Replaces: 12456801)				$ 50.57
11	W11573362		Screw   (Replaces: 67006380)				$ 14.02
12	WP98165		Screw   (Replaces: 67006473)				$ 8.00
13	A3076901		Plug, Button				$ 5.70
14	WP489349		Screw   (Replaces: 67006303)			Immediately	$ 7.88
15	WP12607104ED		Hinge, Center (black)   (Replaces: 67007043)				$ 152.73
15	W11689473		Hinge, Center (white)   (Replaces: 67006960)				$ 66.47
16	W11177593		Foot Brake   (Replaces: 67003868)				$ 11.60
17	67003484		Cover, Corner (white)				$ 20.40
17	67003485		Cover, Corner (black)			Immediately	$ 21.09
18	WP12566606ED		Hinge, Top   (Replaces: 12566604ED)			Immediately	$ 44.89
19	12906303WD		Bracket, Foot   (Replaces: 67007174)				$ 84.36
20	WP98165		Screw   (Replaces: 67006473)				$ 8.00
21	67001014		Cover, Hinge (white)				$ 21.28
21	67001012		Cover, Hinge (black)				$ 47.34
22	WPW10534154		Grille Assembly (includes Clips) (white)   (Replaces: 67006377)				$ 146.34
22	WPW10534153		Grille Assembly (includes Clips) (black)   (Replaces: 67006375)				$ 147.21
25	67006425		Screw			Immediately	$ 6.95
27	67004098		Cover, Water Valve		Appelez-nous	-
28	12575101ED		Cover, Unit		Appelez-nous	-
29	67007121		Power Cord		Appelez-nous	-
30	67003796		Insulation, Sound				$ 19.27
31	67001066		Tube, Drain				$ 55.82
32	67001067		Clip, Drain Tube				$ 9.20
33	M0286708		Nut, Speed				$ 45.57
34	WP10450603		Roller   (Replaces: 67005127)				$ 7.88
35	M1205302		Pin				$ 5.85
36	WP33001882		Screw   (Replaces: 67006737)				$ 79.72
37	67006697		Bolt, Adjusting (rear)				$ 12.88
40	B5759649		Gasket		Appelez-nous	-
42	67004092		Block, Filter		Appelez-nous	-
43	WP98165		Screw   (Replaces: 67006287)				$ 8.00
44	12726003		Cover, Water Line   (Replaces: 67003331)				$ 18.28
45	67004102		Track, Water				$ 31.99
46	W11176463		Elbow, Fill Tube   (Replaces: W10137519)			Immediately	$ 114.15
47	WPB5705307		Tube, Plastic   (Replaces: B5705307)				$ 12.43
49	WPM0104106		Clip, Water Tube   (Replaces: M0104106)				$ 7.78

    View Diagram in Separate Window       Print Part List
