Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 67004810 Freezer Door (w/ Insulation) (white) Appelez-nous -
1 67004808 Freezer Door (w/ Insulation) (black) Appelez-nous -
1 W10136412 Freezer Door (w/ Insulation) (stainless Steel) Appelez-nous -
2 2319727W Handle, Door (white) Special Order $ 106.80

2 2319727B Handle, Door (black) Special Order $ 109.87

2 2319727S Handle, Door (stainless Steel) Special Order $ 133.96

3 12991101 Screw   (Replaces: 67006408) Special Order $ 12.83

4 W10443319 Gasket, Door (white)   (Replaces: W10133249) Special Order $ 281.76

4 W10436252 Gasket, Door (black)   (Replaces: W10131754) In-Stock Immediately $ 345.03

5 WP3387230 Screw   (Replaces: 67002935) In-Stock Immediately $ 8.54

7 10712401 Plug, Vent (2) (white) Special Order $ 7.79

7 67004838 Plug, Vent (2) (black) Special Order $ 10.68

9 67004790 Stud, Handle Special Order $ 9.66


    View Diagram in Separate Window     Print Icon   Print Part List

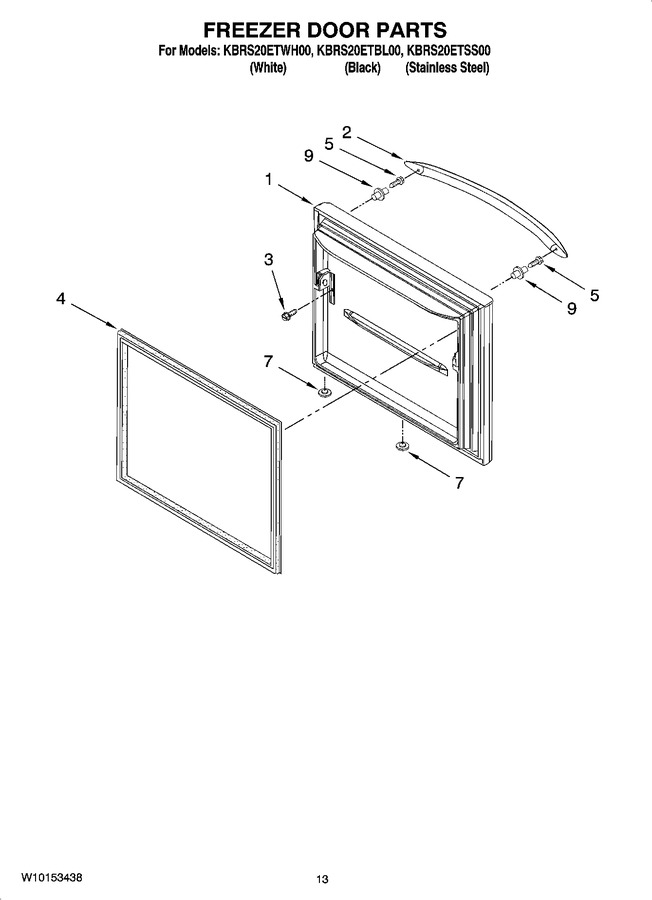

Diagram for KBRS20ETBL00
