Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67006425		Screw			Immediately	$ 7.30
2	W10156818		Blade, Fan   (Replaces: 67004952)			Immediately	$ 62.11
3	67005889		Base		Appelez-nous	-
4	12992301		Screw   (Replaces: 67006433)				$ 7.32
5	WP67004954		Screw   (Replaces: 67004954)				$ 8.18
6	67005421		Cover, Box				$ 64.83
7	67005679		Harness, Evap Heater		Appelez-nous	-
8	WP12579803		Drain Pan   (Replaces: 67007175)				$ 257.73
9	61004743		Grommet (3)				$ 5.51
10	WP67002493		Evaporator Heater   (Replaces: 67002493)			Immediately	$ 153.46
12	W10613606		Overload/relay (capacitor Incl.)   (Replaces: 67005560)			Immediately	$ 86.59
13	WP854334		Gasket   (Replaces: 61003210)				$ 13.94
14	WP67003426		Bi-metal   (Replaces: 67003426)			Immediately	$ 68.65
15	67005680		Grommet (8)				$ 22.10
16	67006550		Screw		Appelez-nous	-
17	67007052		Clip, Capacitor		Appelez-nous	-
18	WP67006131		Condenser   (Replaces: 67006131)				$ 385.08
19	WP12866903		Tube, Discharge   (Replaces: 67004700)			Immediately	$ 140.21
20	W11547653		Tray, Drip   (Replaces: 67002490)				$ 57.02
21	67005719		Spacer, Hv Box		Appelez-nous	-
22	12002041		Evaporator				$ 366.06
23	67001083		Dam (left Side)		Appelez-nous	-
23	67001084		Dam (right Side)		Appelez-nous	-
24	W11613295		Motor, Fan   (Replaces: 67004432)			Immediately	$ 143.68
25	W11673433		Clip, Heater   (Replaces: 10428101)				$ 148.18
26	13060201		Harness, Unit		Appelez-nous	-
27	WPW10143759		Drier (service)   (Replaces: 2317845)			Immediately	$ 30.78
28	W10160407		Compressor (includes Items 11, 12, 17, 27, & 35)   (Replaces: 12002634)				$ 629.92
29	12782027		Control Board		Appelez-nous	-
30	12972902		Harness, Hv Board				$ 80.90
31	12575305		Shroud		Appelez-nous	-
32	WP67004953		Bracket, Fan Motor   (Replaces: 67004953)				$ 72.27
33	67005718		Box, Control		Appelez-nous	-
34	10547003		Clip, Drier		Appelez-nous	-
35	WPW10169124		Grommet (4)   (Replaces: 67003493)			Immediately	$ 7.55
36	10623002		Clip, Evaporator				$ 12.11
37	WP33001882		Screw   (Replaces: 67006737)				$ 83.71
38	12846902		Screw   (Replaces: 67006432)				$ 13.64
39	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
39	978028		Valve, Access (1/2)		Appelez-nous	-
39	978029		Valve Access (5/8``)				$ 93.85
39	978030		Valve, Access (3/4``)				$ 137.25
39	876764		Valve, Access(3/16``)			Immediately	$ 95.92
39	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
39	12992101		Screw   (Replaces: 67006573)		Appelez-nous	-
39	978026		Valve, Access (5/16``)			Immediately	$ 134.49

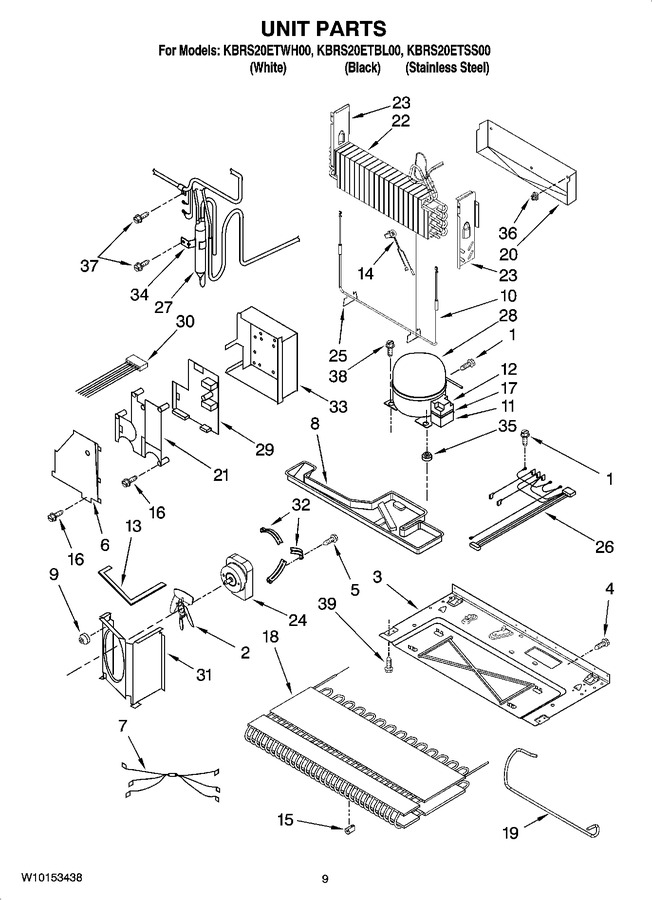

    View Diagram in Separate Window       Print Part List
