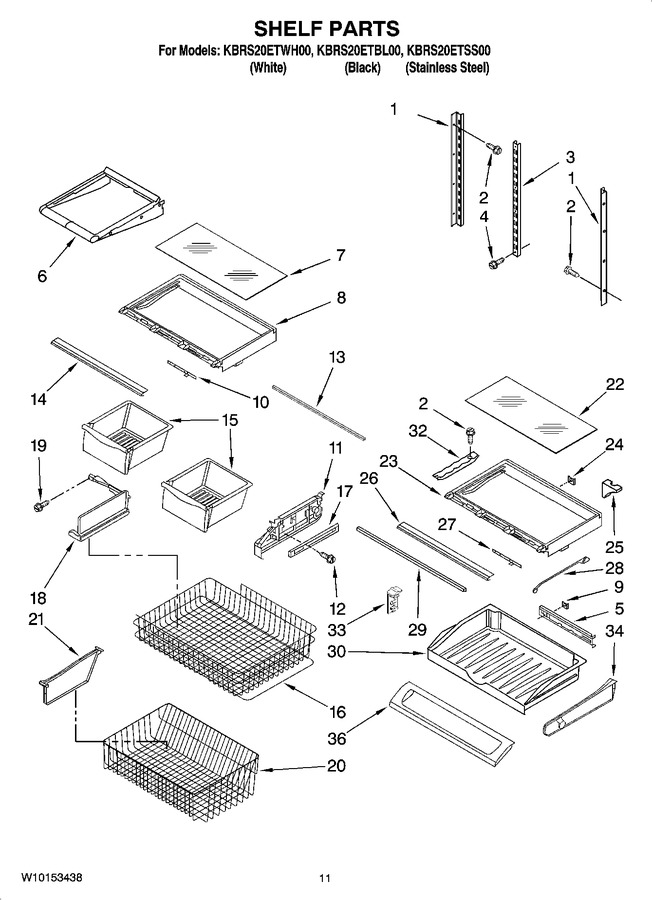

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67003037 | Ladder, Side |
|
- | |||||
| 2 | WP67006415 | Screw (Replaces: 67006415) |
|
$ 7.80 | |||||
| 3 | 67003036 | Ladder, Center |
|
- | |||||
| 4 | W10709795 | Screw (Replaces: 67006360) |
|
$ 13.13 | |||||
| 5 | 12656202 | Housing, Control (Replaces: 67005625) |
|
$ 141.75 | |||||
| 6 | 67005676 | Shelf, Glide (4) |
|
$ 113.02 | |||||
| 7 | WP67006655 | Glass, Crisper (Replaces: 67006655) |
|
Immediately | $ 228.45 | ||||
| 8 | WP67006185 | Frame, Crisper (Replaces: 67006185) |
|
$ 216.05 | |||||
| 9 | 67002329 | Gasket, Pantry Crisper Drawer |
|
$ 21.04 | |||||
| 10 | WP67005864 | Slide, Humidity Control (Replaces: 67005864) |
|
Immediately | $ 7.81 | ||||
| 11 | WP12656105 | Track, Pantry (left) (Replaces: 67005862) |
|
Immediately | $ 55.63 | ||||
| 11 | WP12656018 | Track, Pantry (right) (Replaces: 67005860) |
|
Immediately | $ 58.87 | ||||
| 12 | 67006425 | Screw (Replaces: 67006400) |
|
Immediately | $ 6.95 | ||||
| 13 | WP12227304WD | Support, Crisper Frame (Replaces: 67002488) |
|
$ 103.51 | |||||
| 14 | WPW10231486 | Trim, Crisper (Replaces: 67005675) |
|
$ 94.41 | |||||
| 15 | WP67002659 | Pan, Crisper (2) (Replaces: 67002659) |
|
Immediately | $ 147.67 | ||||
| 16 | 67004988 | Basket, Freezer (upper) |
|
- | |||||
| 17 | WPW10235370 | Glide, Pantry (Replaces: 67007026) |
|
Immediately | $ 199.80 | ||||
| 18 | 67004127 | Divider, Upper Basket |
|
$ 10.10 | |||||
| 19 | 67006608 | Screw |
|
- | |||||
| 20 | W10503185 | Basket, Freezer (lower) (Replaces: 67006026) |
|
$ 149.50 | |||||
| 21 | 67004812 | Divider, Lower Basket |
|
- | |||||
| 22 | WP67002332 | Glass, Pantry (Replaces: 67002332) |
|
Immediately | $ 239.33 | ||||
| 23 | WPW10568041 | Frame, Pantry (Replaces: 67001056) |
|
Immediately | $ 137.23 | ||||
| 24 | 67002005 | Gasket, Pantry |
|
- | |||||
| 25 | WP12531601 | Air Duct, Pantry (Replaces: 67002004) |
|
$ 10.51 | |||||
| 26 | WP12227305WD | Brace, Pantry (Replaces: 67002330) |
|
$ 103.20 | |||||
| 27 | WP67003793 | Slide, Pantry Control (Replaces: 67003793) |
|
Immediately | $ 74.75 | ||||
| 28 | 67003794 | Rod, Temperature Control |
|
$ 13.16 | |||||
| 29 | W11812285 | Support, Glass (Replaces: 67006010) |
|
$ 50.79 | |||||
| 30 | W11490183 | Drawer, Pantry (Replaces: 67003530) |
|
$ 137.42 | |||||
| 32 | WP67001719 | Track, Pantry (Replaces: 67001719) |
|
Immediately | $ 8.56 | ||||
| 33 | W11498983 | Knob, Temperature (Replaces: 67003791) |
|
$ 29.18 | |||||
| 34 | WP67002321 | Divider, Pantry (Replaces: 67002321) |
|
$ 32.18 | |||||
| 36 | WP67005930 | Lid Assembly Drawer (Replaces: 67005930) |
|
Immediately | $ 81.56 |
