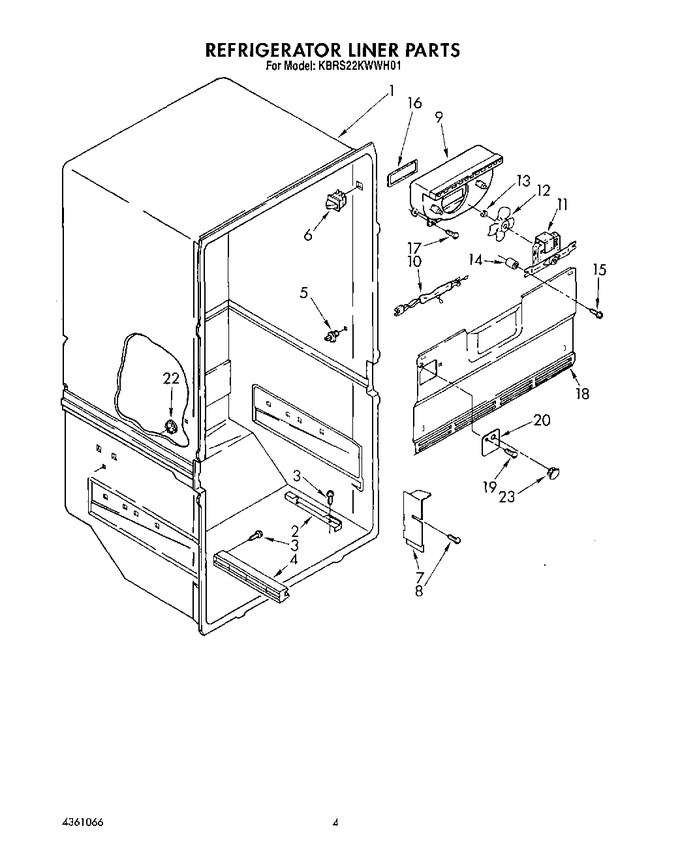

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	986383		Slide, Basket (left Side)		Appelez-nous	-
2	986382		Slide, Basket (right Side)		Appelez-nous	-
3	W10759522		Screw   (Replaces: 486298)				$ 7.75
4	2149174		Shelf Track, (left Side)		Appelez-nous	-
4	2149175		Shelf Track, (right Side)		Appelez-nous	-
5	1106612		Shelf Stud (2)				$ 7.56
6	W11384469		Switch, Rocker Arm   (Replaces: 1108112)			Immediately	$ 37.23
7	1127396		Electrical Shield Extension		Appelez-nous	-
8	488474		Screw		Appelez-nous	-
9	2149169		Scroll, Fan		Appelez-nous	-
10	1127434		Wiring Assembly, Fan Motor		Appelez-nous	-
11	1127401		Fan Motor		Appelez-nous	-
12	992920		Blade, Fan				$ 39.91
13	992953		Ring, Compression		Appelez-nous	-
14	1114354		Grommet (2)		Appelez-nous	-
15	489168		Screw (2)		Appelez-nous	-
16	1127406		Gasket, Fan Scroll		Appelez-nous	-
17	WP489478		Screw (4)   (Replaces: 489242)				$ 7.75
18	1115004		Cover, Evaporator		Appelez-nous	-
19	WP488729		Screw (7)   (Replaces: 489196)			Immediately	$ 7.79
20	WP2217784		Hole Cover, Evaporator   (Replaces: 1125567)				$ 44.97
22	WP941839		Hole, Plug   (Replaces: 941839)				$ 7.65
23	1103725		Hole Plug		Appelez-nous	-
