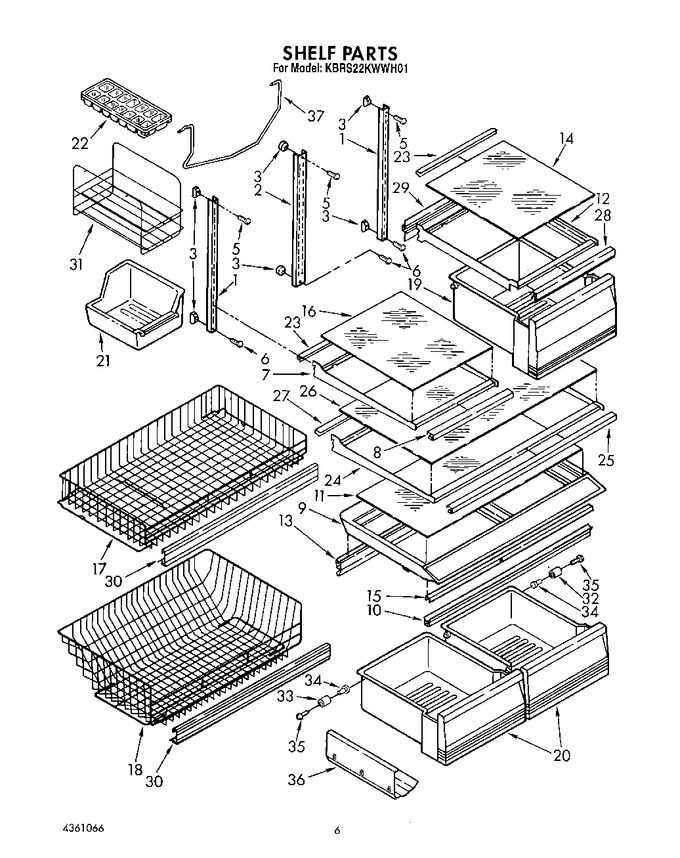

03 - Compartment Separator


04 - Shelf, Lit/optional


05 - Unit


06 - Refrigerator Door


07 - Freezer Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1127413		Shelf, Ladder (2)		Appelez-nous	-
2	1127414		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support (4) Center (2)				$ 31.35
5	489345		Screw, 8-32 X 1-1/4 (3)		Appelez-nous	-
6	WP488163		Screw, 8 X 1-1/4 (3)   (Replaces: 488163)				$ 7.92
7	1125520		Shelf, Cantilever (2)		Appelez-nous	-
8	1125782		Gasket (front)		Appelez-nous	-
9	1125897		Pan Cover Assembly		Appelez-nous	-
10	WP1125528		Gasket, Pan Cover (front)   (Replaces: 1125528)				$ 161.69
11	1125531		Glass, Pan Cover		Appelez-nous	-
12	1125533		Pan Shelf, Cantilever		Appelez-nous	-
13	1125529		Gasket, Pan Cover (rear) (2)		Appelez-nous	-
14	1125539		Glass, Shelf		Appelez-nous	-
15	WP2172748		Crisper, Support   (Replaces: 1106613)				$ 102.08
16	1125521		Glass, Shelf		Appelez-nous	-
17	2149146		Basket-freezer		Appelez-nous	-
18	1127250		Basket-freezer		Appelez-nous	-
19	1125934		Pan, Meat		Appelez-nous	-
20	1117907		Pan, Crisper		Appelez-nous	-
21	1126135		Ice Cube Pan		Appelez-nous	-
22	WP841180A		Ice Tray (4)   (Replaces: 841180)			Immediately	$ 47.84
23	1110744		Retainer, Shelf		Appelez-nous	-
24	1125523		Shelf, Full Cantilever		Appelez-nous	-
25	1125783		Gasket (front)		Appelez-nous	-
26	1125524		Glass, Full Shelf		Appelez-nous	-
27	1125525		Retainer, Shelf		Appelez-nous	-
28	1125576		Gasket, Front		Appelez-nous	-
29	1125815		Gasket, Rear		Appelez-nous	-
30	1125900		Trim, Basket		Appelez-nous	-
31	2147011		Shelf, Ice Tray		Appelez-nous	-
32	1125530		Roller, R.s.		Appelez-nous	-
33	1112303		Roller		Appelez-nous	-
34	1112308		Eyelet, Roller		Appelez-nous	-
35	WP489261		Screw   (Replaces: 489261)				$ 8.33
36	1126137		Wine & Egg Rack		Appelez-nous	-
37	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
37	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
37	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
37	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
37	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
37	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
37	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
37	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
37	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
37	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
37	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
37	2149150		Icemaker Arm (when Ordering Field Installable Icemaker This Arm Must Be Used)		Appelez-nous	-
37	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
37	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
37	876370		Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``)				$ 243.14
37	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
37	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
37	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
37	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
37	833938		Kit, Terminal Connector				$ 8.47
37	515393		Transformer (115-230 Volt)		Appelez-nous	-
37	350942		Primer White (13 Oz. Spray Can)				$ 94.14
37	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
37	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
37	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
37	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
37	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
	LIT4361066		Parts List		Appelez-nous	-
	LIT1125641		Label, Use & Care Guide		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	LIT2149912		Service & Wiring Sheet		Appelez-nous	-
	1129316		Icemaker Kims8   (Replaces: 1129318)			Immediately	$ 149.11
	LIT1117934		Energy Label		Appelez-nous	-
	LIT628107		Modular Icemaker Service Sheet		Appelez-nous	-
