SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Compartment Separator


04 - Shelf, Lit/optional


05 - Unit


06 - Refrigerator Door


07 - Freezer Door

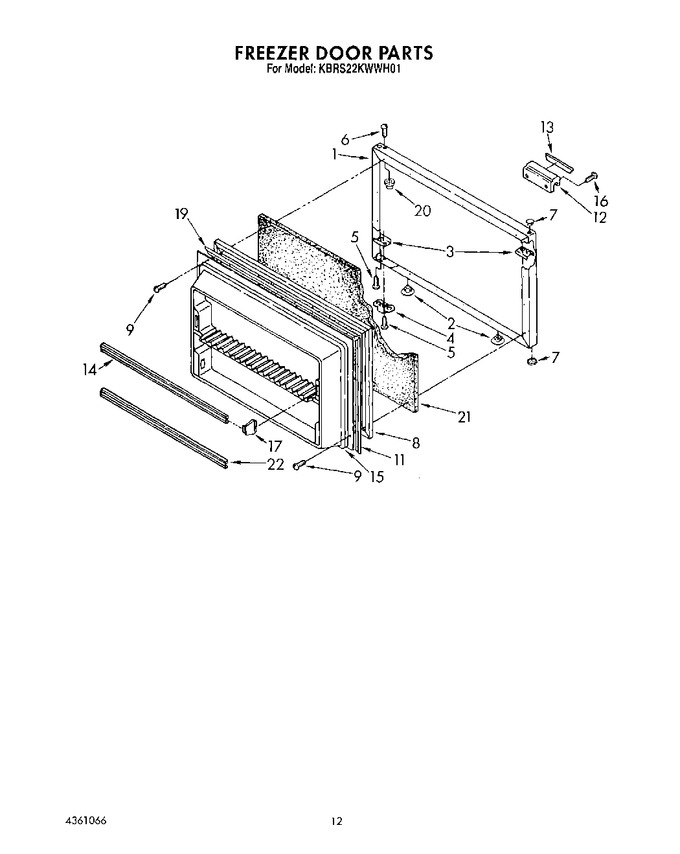

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1110314		Panel, Freezer Door (also Order Item 21) (almond)		Appelez-nous	-
1	1110312		Panel, Freezer Door (also Order Item 21) (white)		Appelez-nous	-
2	989197		Hole Plug (2) (almond)		Appelez-nous	-
2	534927		Hole Plug (2) (white)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	944036		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
7	989196		Hole Plug (almond)		Appelez-nous	-
8	1125924		Door Gasket, Magnetic		Appelez-nous	-
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 8.05
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
11	986015		Retainer, Gasket		Appelez-nous	-
12	657077		Handle		Appelez-nous	-
13	989711		Shim		Appelez-nous	-
14	1125907		Trim, Shelf		Appelez-nous	-
15	1127255		Interior Door Panel		Appelez-nous	-
16	488933		Screw		Appelez-nous	-
17	4386917		Trim End Cap   (Replaces: 1105685)			Immediately	$ 18.90
19	836118		Retainer, Gasket		Appelez-nous	-
20	509929		Cap, Hinge Sleeve (4)		Appelez-nous	-
21	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-
22	1126101		Trim, Shelf		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
