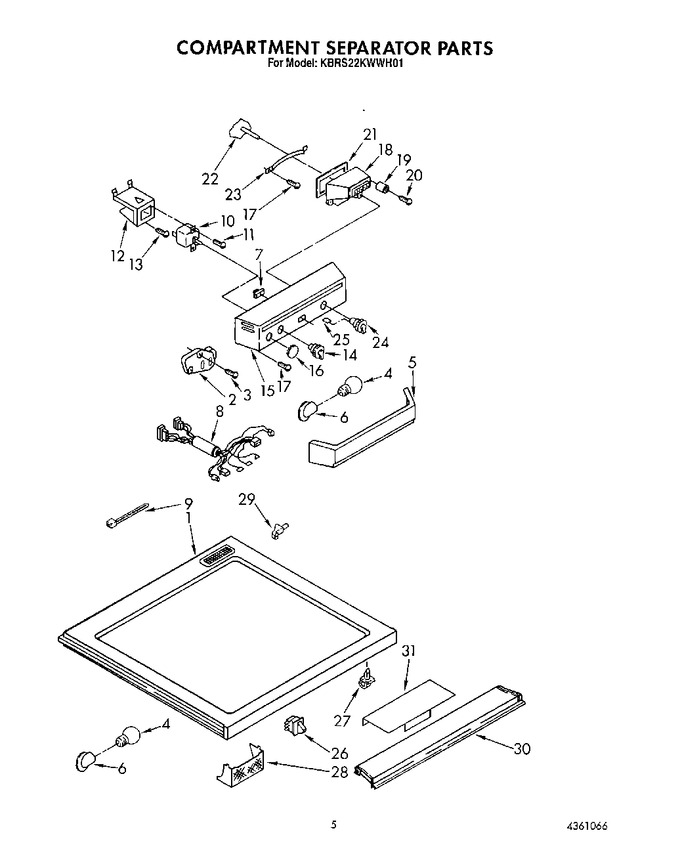

03 - Compartment Separator


04 - Shelf, Lit/optional


05 - Unit


06 - Refrigerator Door


07 - Freezer Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2149168		Compartment Separator Assembly (includes Center Rail And Heater Assembly) (almond)		Appelez-nous	-
1	1126098		Compartment Separator Assembly (includes Center Rail And Heater Assembly) (white)		Appelez-nous	-
2	W10822278		Defrost Timer   (Replaces: 2149098)			Immediately	$ 34.44
3	WP488163		Screw, 8 X 1-3/8 (2)   (Replaces: 487534)				$ 7.92
4	W11679940		Light Bulb   (Replaces: 946059)			Immediately	$ 11.30
5	983910		Light Lens		Appelez-nous	-
6	4387478		Light Socket   (Replaces: 851067)			Immediately	$ 115.67
7	938213		Switch, Lighted				$ 27.96
8	2149889		Wiring Assembly, Control Box		Appelez-nous	-
9	1102000		Cable Tie		Appelez-nous	-
10	WP819470		Thermostat Barrier Assembly   (Replaces: 1115076)				$ 164.96
11	WP965173		Screw, 8-15 X 3/8 (2)   (Replaces: 487584)			Immediately	$ 11.87
12	848446		Bracket, Thermostat		Appelez-nous	-
13	WP489069		Screw   (Replaces: 488874)			Immediately	$ 8.40
14	1125967		Control Knob		Appelez-nous	-
15	1125965		Control Panel Assembly (includes Item 16)		Appelez-nous	-
16	940014		Hole Plug				$ 18.33
17	WP489478		Screw   (Replaces: 489242)				$ 8.18
18	986021		Diffuser Assembly, Air		Appelez-nous	-
19	836667		Spacer (2)		Appelez-nous	-
20	488357		Screw, 8 X 1-1/4 (2)		Appelez-nous	-
21	1127488		Gasket		Appelez-nous	-
22	984658		Damper, Air				$ 8.39
23	836493		Retainer, Air Damper		Appelez-nous	-
24	1126092		Knob, Air Diffuser (includes Item 25)		Appelez-nous	-
25	837444		Knob, Retainer		Appelez-nous	-
26	W11457217		Switch, Rocker   (Replaces: 1115373)				$ 40.09
27	2155555		Stud-hook		Appelez-nous	-
28	983359		Freezer, Light Lens		Appelez-nous	-
29	839213		Support, Stud				$ 295.15
30	1121213		Compartment, Top Seperator Front		Appelez-nous	-
31	2149068		Shield, Light		Appelez-nous	-
