Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2307978 Slide, Freezer Basket (right Side) Special Order $ 145.22

1 2307977 Slide, Freezer Basket (left Side) Special Order $ 157.73

2 2006475 Screw, 8-15 X 1.00 Appelez-nous -
4 2256443 Spacer, Crisper (right Side) Appelez-nous -
4 2256442 Spacer, Crisper (left Side) Appelez-nous -
5 W10777924 Rack, Wine   (Replaces: 2179374) Special Order $ 24.78

6 WP2221071A Egg Bin   (Replaces: 2221071) Special Order $ 25.79

7 2257327 Bracket, Freezer Basket (right Side) Appelez-nous -
7 2257326 Bracket, Freezer Basket (left Side) Appelez-nous -
12 2257562 Trim-glass, Side Appelez-nous -
13 2256474 Divider, Crisper Pan Special Order $ 87.99

14 W11830745 Screw   (Replaces: 8533929) Appelez-nous -
15 2302953 Slide, Crisper (right Side) In-Stock Immediately $ 318.41

15 2302952 Slide, Crisper (left Side) In-Stock Immediately $ 318.09

16 2302788 Support, Crisper Cover Appelez-nous -
17 WP8533928 Screw   (Replaces: 8533928) In-Stock Immediately $ 8.26

18 2222595 Glass, Shelf Assembly (4) Appelez-nous -
19 2257563 Trim-glass, Side Appelez-nous -
20 2302796 Trim-glass, Rear Appelez-nous -
21 2302840 Assembly, Deli Shelf Appelez-nous -
24 2222601 Sidearm, Shelf (8) Appelez-nous -
29 WP2256375 Cripser Pan Assembly (includes 30)   (Replaces: 2256375) Special Order $ 397.25

30 2256374 Front, Crisper Pan Appelez-nous -
33 2302714 Front, Deli Pan Appelez-nous -
37 2302838 Assembly, Crisper Shelf Appelez-nous -
38 2257564 Trim-glass, Rear Appelez-nous -
43 2302950 Slide, Deli (left Side) Appelez-nous -
43 2302951 Slide, Deli (right Side) Appelez-nous -
44 2257532 Spacer, Deli (right Side) Appelez-nous -
44 2257531 Spacer, Deli (left Side) Appelez-nous -
47 2302713 Deli Pan Assembly (includes 33) Appelez-nous -
48 2222481 Ladder, Shelf Side (2) Appelez-nous -
49 2006475 Screw, Appelez-nous -
50 2222611 Ladder, Shelf Center Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

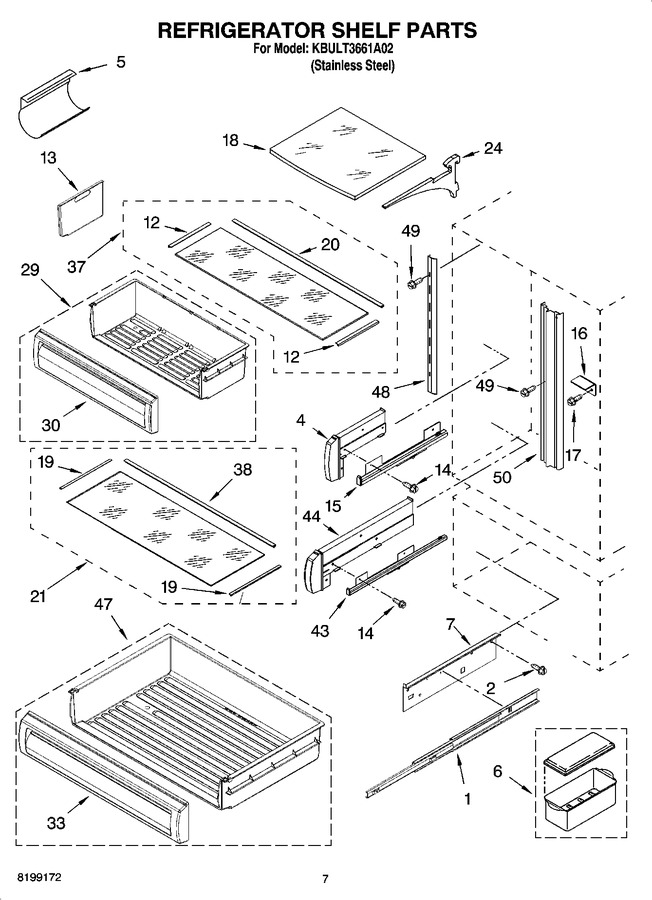

Diagram for KBULT3661A02
