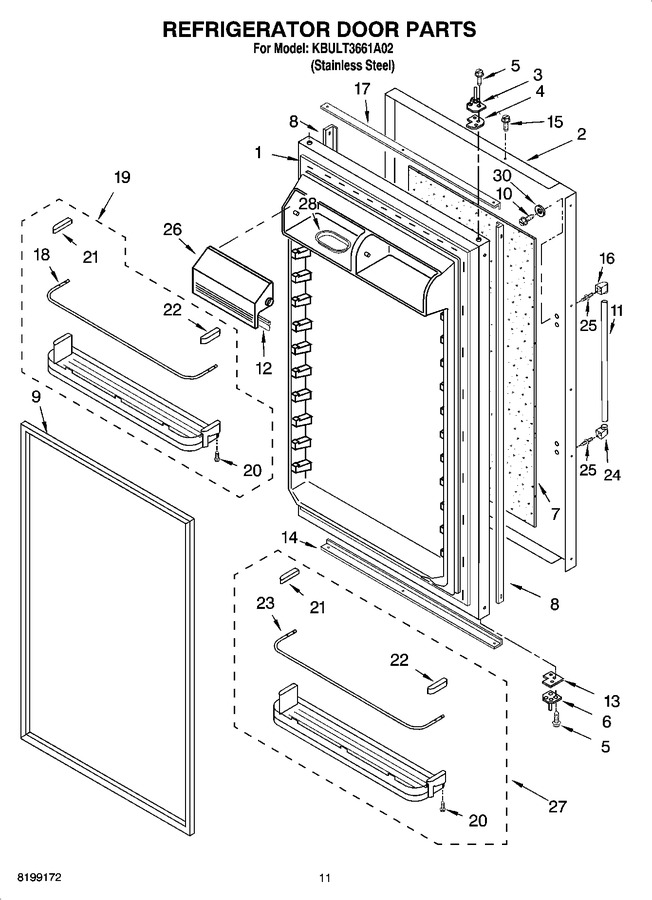

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2300083 | Refrigerator Door (includes Item 9) |
|
- | |||||
| 2 | 2256498 | Skin, Door (stainless Steel) |
|
- | |||||
| 3 | 2266912 | Hinge Assembly, Top |
|
$ 44.22 | |||||
| 4 | 2256381 | Spacer-hinge, Top |
|
$ 24.49 | |||||
| 5 | W11474472 | Screw, 10-32 X 3/4 (Replaces: 489282) |
|
Immediately | $ 8.63 | ||||
| 6 | 2302928 | Hinge Assembly, Bottom |
|
$ 26.90 | |||||
| 7 | 2005397 | Filler, Foam |
|
- | |||||
| 8 | 2300026 | Spacer, Door Edge - Side (2) |
|
- | |||||
| 9 | 2302709 | Door Gasket, Magnetic (Replaces: 2300184) |
|
$ 328.30 | |||||
| 10 | WP308544 | Screw, 10-24 X 1/2 (Replaces: 308544) |
|
Immediately | $ 8.30 | ||||
| 11 | 2256353 | Handle-bar, Door (stainless Steel) |
|
- | |||||
| 12 | 2005982 | Gasket (2) |
|
- | |||||
| 13 | 2257647 | Spacer-hinge, Bottom |
|
- | |||||
| 14 | 2300023 | Spacer, Door Edge - Bottom |
|
- | |||||
| 15 | WP8281250 | Screw 8-15 X 1/2 (stainless Steel) (Replaces: 8281250) |
|
$ 11.42 | |||||
| 15 | W10851443 | Screw 8-15 X 1/2 (black) (Replaces: 8281252) |
|
Immediately | $ 8.13 | ||||
| 16 | 2266843 | Endcap, Handle |
|
- | |||||
| 17 | 2300024 | Spacer, Door Edge - Top |
|
- | |||||
| 18 | 2256417 | Tube, Door Shelf |
|
- | |||||
| 19 | 2222479 | Shelf, Door (2) |
|
- | |||||
| 20 | WP681249 | Screw, 8-18 X 3/4 (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 21 | 2005542 | End Cap, Left |
|
- | |||||
| 22 | 2005541 | End Cap, Right |
|
- | |||||
| 23 | 2256418 | Tube, Door Shelf (gallon) |
|
- | |||||
| 24 | 2266872 | Endcap, Handle |
|
- | |||||
| 25 | 8533824 | Screw, Set |
|
- | |||||
| 26 | 2005983 | Door, Utility Bin (2) (includes Item 12) |
|
- | |||||
| 27 | 2256378 | Door Shelf, Gallon |
|
- | |||||
| 28 | 2165792 | Butter Tray |
|
- | |||||
| 30 | 487944 | Washer |
|
- |
