SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet And Breaker Trim Parts


03 - Top Grille And Unit Cover Parts


04 - Liner Parts


05 - Refrigerator Shelf Parts


06 - Freezer Door And Basket Parts


07 - Refrigerator Door Parts

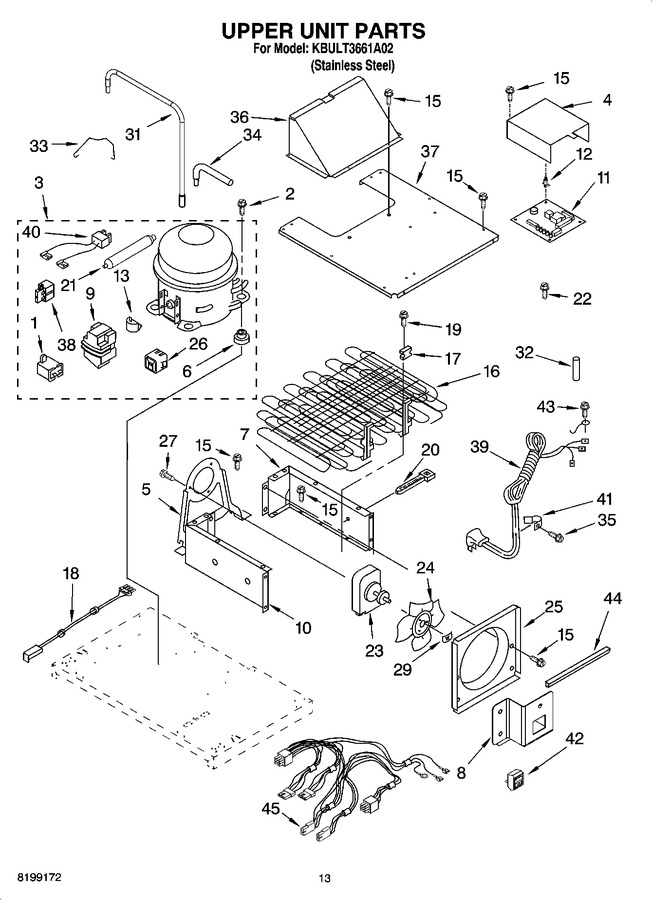

08 - Upper Unit Parts


09 - Lower Unit And Tube Parts


10 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10662129		Capacitor (service)   (Replaces: 1118576)			Immediately	$ 58.86
1	WPW10662129		Capacitor (production)   (Replaces: 2169373)			Immediately	$ 58.86
2	876811		Screw, Compressor Mounting (4)   (Replaces: 489373)				$ 7.79
3	W10309990		Compressor (includes Items 1,6,9,13,21, 38 & 40) (also Order 876765 Tube Kit And Item 21)   (Replaces: 2255455)			Immediately	$ 632.81
4	2257354		Housing, Control Board		Appelez-nous	-
5	2215641		Bracket, Fan Motor		Appelez-nous	-
6	WP4387558		Grommet, Mounting (service)   (Replaces: 4387558)				$ 7.30
6	876811		Grommet (production)   (Replaces: 1100826)				$ 7.79
7	2266803		Shroud, Condenser (right)		Appelez-nous	-
8	2302969		Bracket, Switch		Appelez-nous	-
9	WP2162358		Terminal Cover Service Compressor   (Replaces: 4387731)				$ 95.29
10	2302973		Shroud, Condenser (left)		Appelez-nous	-
11	2252070		Control Board				$ 184.02
12	WP2203075		Spacer (5)   (Replaces: 2203075)			Immediately	$ 18.81
13	WP2187145		Overload (service Compressor Only - Includes Relay)   (Replaces: 2187145)				$ 153.92
15	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
16	2259307		Condenser				$ 165.43
17	943447		Grommet (4)		Appelez-nous	-
18	WP2187629		Wire, Jumper   (Replaces: 2187629)				$ 132.58
19	WP488163		Screw   (Replaces: 488208)				$ 7.92
20	WPW10339879		Wire Tie (2)   (Replaces: 2155774)				$ 8.30
21	WPW10143759		Drier (production)   (Replaces: 2252363)			Immediately	$ 30.78
21	W10843121		Drier (service)   (Replaces: 4387019)			Immediately	$ 57.13
22	487522		Screw		Appelez-nous	-
23	W10181323		Motor, Fan   (Replaces: 2206036)			Immediately	$ 303.29
24	2190685		Blade, Fan				$ 52.00
25	2003169		Orifice, Fan		Appelez-nous	-
26	WPW10189190		Start-device, Combination (start Relay And Overload For Production Compressor Only)   (Replaces: 2255554)			Immediately	$ 131.29
27	8281160		Screw		Appelez-nous	-
29	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
31	2259302		Tube, Transition (condenser/drier)		Appelez-nous	-
32	2000645		Sleeve, Condenser		Appelez-nous	-
33	2255199		Clip, Retainer		Appelez-nous	-
34	W10528578		Process, Tube   (Replaces: 2194319)				$ 39.82
35	W11624204		Screw   (Replaces: 486194)				$ 14.72
36	2209495		Cover, Fan		Appelez-nous	-
37	2259092		Cover, Condenser		Appelez-nous	-
38	2183454		Relay (service Only)		Appelez-nous	-
39	2259197		Service Cord		Appelez-nous	-
40	WP2172890		Wire Assembly (service Only)   (Replaces: 4387765)				$ 8.51
41	549193		Clamp-cord				$ 14.06
42	WP2266802		Switch, Power Disconnect   (Replaces: 2266802)				$ 109.08
43	00487294		Screw, Ground   (Replaces: 487294)				$ 175.09
44	2307907		Grommet, Edge		Appelez-nous	-
45	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
45	978028		Valve, Access (1/2)		Appelez-nous	-
45	978029		Valve Access (5/8``)				$ 93.85
45	978030		Valve, Access (3/4``)				$ 137.25
45	876764		Valve, Access(3/16``)			Immediately	$ 95.92
45	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
45	2187522		Wiring Harness, Unit Compartment		Appelez-nous	-
45	N/A		Following Parts Not Illustrated And Optional Parts Not Included		Appelez-nous	-
45	978026		Valve, Access (5/16``)			Immediately	$ 134.49

    View Diagram in Separate Window       Print Part List
