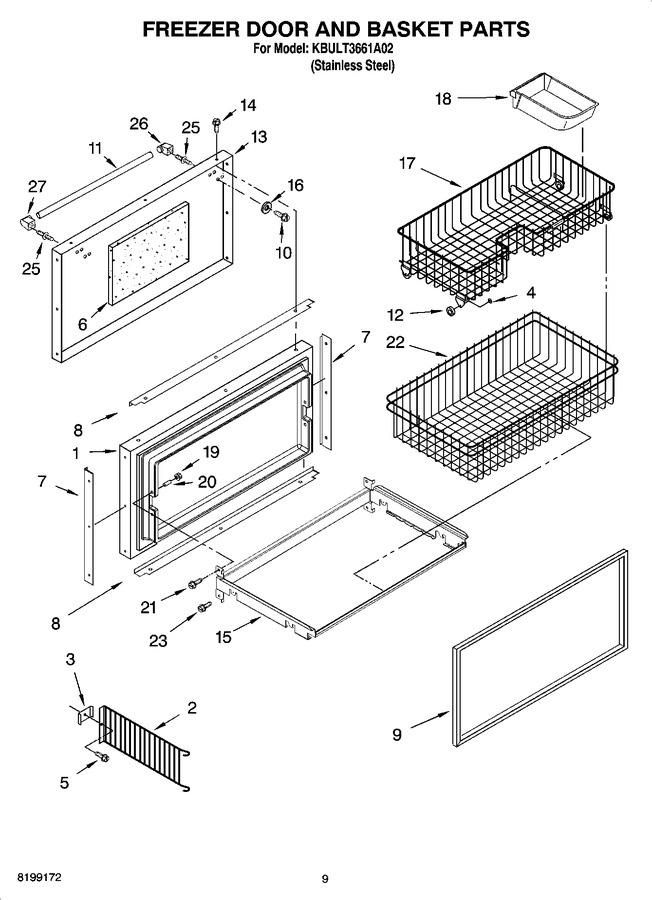

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2300085		Freezer Door Panel (includes Item 9)		Appelez-nous	-
2	2204525SI		Divider, Basket		Appelez-nous	-
3	2207429SI		Clamp, Divider		Appelez-nous	-
4	2207415		Nut, Crimp				$ 14.04
5	3190699		Screw		Appelez-nous	-
6	2005400		Filler, Foam		Appelez-nous	-
7	2300025		Spacer, Door Edge - Side		Appelez-nous	-
8	2300027		Spacer, Door Edge Top & Bottom		Appelez-nous	-
9	2302710		Door Gasket, Magnetic   (Replaces: 2300185)				$ 307.89
10	WP308544		Screw, 10-24 X 1/2   (Replaces: 308544)			Immediately	$ 8.30
11	2256353		Handle-bar, Door (stainless Steel)		Appelez-nous	-
12	W11214482		Roller   (Replaces: 2204542)				$ 101.03
13	2266869		Skin, Door (stainless Steel)		Appelez-nous	-
14	WP8281250		Screw 8-15 X 1/2 (stainless Steel)   (Replaces: 8281250)				$ 11.42
15	2257426		Bracket Assembly, Freezer Basket		Appelez-nous	-
16	487944		Washer		Appelez-nous	-
17	2257442SI		Basket, Upper		Appelez-nous	-
18	2266804		Pan, Ice Cube		Appelez-nous	-
19	WP2207454		Nut, Hex   (Replaces: 2207454)				$ 11.38
20	2207471		Bushing		Appelez-nous	-
21	3400507		Screw		Appelez-nous	-
22	2257331SI		Basket, Freezer Lower		Appelez-nous	-
23	WP489128		Screw   (Replaces: 488500)				$ 11.40
25	8533824		Screw, Set		Appelez-nous	-
26	2266843		Endcap, Handle		Appelez-nous	-
27	2266872		Endcap, Handle		Appelez-nous	-
