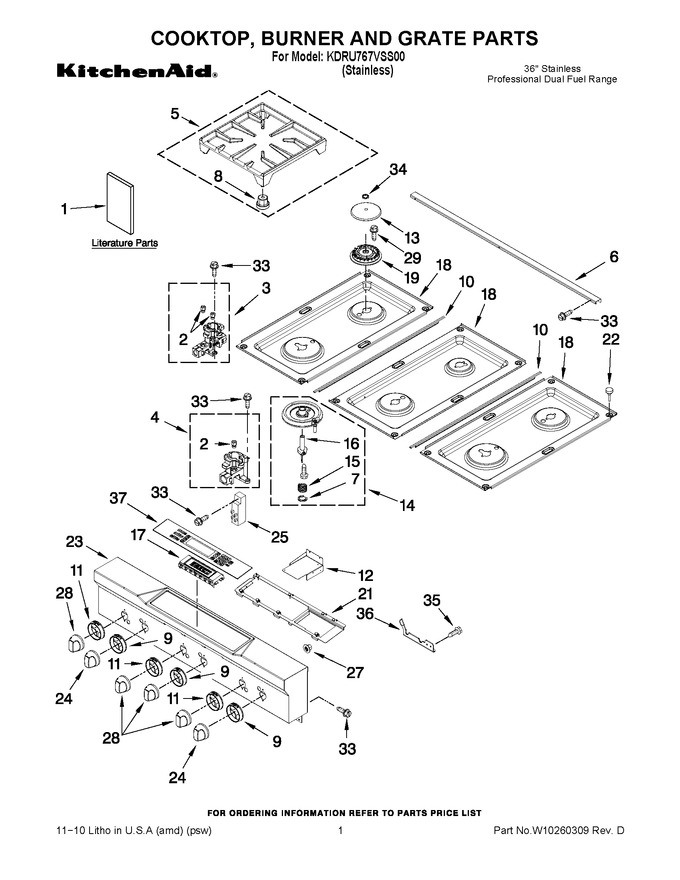

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Chassis Parts


04 - Top Venting Parts


05 - Oven Parts


06 - Oven Door Parts


07 - Internal Oven Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10285549		Use & Care Guide		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
1	W10284341		Tech Sheet (english)		Appelez-nous	-
1	W10284345		Tech Sheet (french)		Appelez-nous	-
1	W10284348		Installation Instructions		Appelez-nous	-
1	9762761		Safer Cooking Tips (english)		Appelez-nous	-
2	W10160232		Orifice (lr,cf,rr)				$ 45.77
2	W10791075		Orifice (cr)   (Replaces: W10282663)				$ 103.68
2	W10160185		Orifice (lf & Rf - Low)				$ 73.54
2	W10160179		Orifice (lf & Rf - High)				$ 75.77
3	WPW10160187		Orifice Holder Lf,rf   (Replaces: W10160187)				$ 81.57
4	W10160234		Orifice Holder (lr,cf,rr)				$ 51.39
4	W10282659		Orifice Holder (cr)				$ 40.50
5	WPW10115928		Grate, Burner   (Replaces: W10115928)				$ 201.41
6	W10269217		Trim, Island				$ 308.49
7	W10160825		Clip, Electrode				$ 52.85
8	W10185266		Rubber, Foot   (Replaces: 8286695)			Immediately	$ 15.47
9	W10261510		Bezel, Front				$ 55.11
10	W10271524		T-strip				$ 212.34
11	W10261512		Bezel, Rear		Appelez-nous	-
12	W10367052		Bracket, Spark Module   (Replaces: W10137323)		Appelez-nous	-
13	WPW10160229		Cap, Burner (lr, Cf, Rr)   (Replaces: W10160229)			Immediately	$ 114.80
13	WP8286816		Cap, Burner (cr)   (Replaces: 8286816)				$ 110.74
13	WPW10115952		Cap, Burner (lf & Rf)   (Replaces: W10115952)				$ 119.01
14	WPW10320937		Base, Burner (lf,rf)   (Replaces: W10320937)				$ 157.22
14	W10189082		Base, Burner (lf, Cf, Rr)		Appelez-nous	-
15	8286863		Spring, Electrode (cr)				$ 76.92
15	W10160826		Spring, Electrode (lf,lr,rf,rr,cf)		Appelez-nous	-
16	WPW10160235		Electrode (lr, Cf, Rr)   (Replaces: W10160235)				$ 42.08
16	WPW10145991		Electrode (cr)   (Replaces: W10145991)			Immediately	$ 84.47
16	W10250406		Electrode (lf,rf)				$ 30.27
17	W10298117		Module, User Interface		Appelez-nous	-
18	W10189104		Cooktop (left)				$ 146.58
18	W10272902		Cooktop (center)		Appelez-nous	-
18	W10189101		Cooktop (right)				$ 345.78
19	W10250458		Burner Head (lr, Cf, Rr)		Appelez-nous	-
19	WPW10250459		Burner Head (lf & Rf)   (Replaces: W10250459)			Immediately	$ 154.23
19	WPW10282515		Burner Head (cr)   (Replaces: W10282515)			Immediately	$ 149.87
21	W10250477		Bracket, User Interface		Appelez-nous	-
22	4448520		Bumper				$ 22.25
23	W10115886		Panel, Control				$ 322.92
24	W11244176		Knob, Control (lf, Rf)   (Replaces: W10250389)				$ 78.37
25	WP71002749		Module, Spark   (Replaces: 7431P039-60)				$ 351.02
27	7103P166-60		Nut, Hex				$ 18.56
28	W11177673		Knob, Control   (Replaces: W10250391)				$ 90.55
29	W11404293		Screw   (Replaces: W10078270)			Immediately	$ 14.74
33	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 14.72
34	W10115953		Nut, Burner				$ 9.78
35	WP74003976		Screw   (Replaces: 7101P500-60)				$ 7.55
36	W10130759		Bracket, Console (right)				$ 75.94
36	W10130760		Bracket, Console (left)				$ 75.94
37	W10116103		Keypad				$ 390.11
