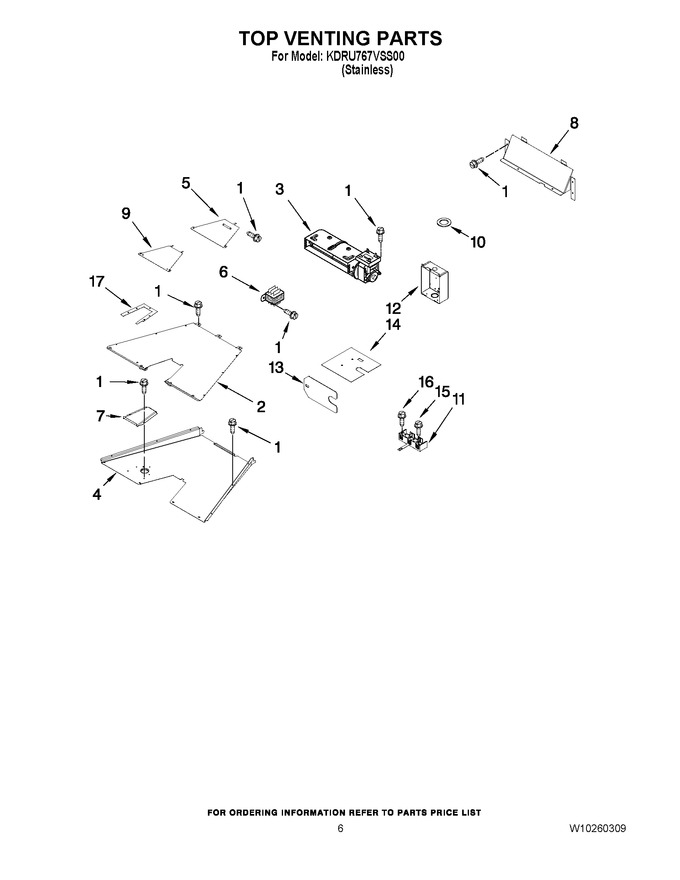

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Chassis Parts


04 - Top Venting Parts


05 - Oven Parts


06 - Oven Door Parts


07 - Internal Oven Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP12990527		Screw   (Replaces: 3400843)			Immediately	$ 8.76
2	W10160896		Vent, Top		Appelez-nous	-
3	WPW10245511		Blower 60mm   (Replaces: W10245511)			Immediately	$ 306.02
4	W10246078		Vent-bottom		Appelez-nous	-
5	W10160875		Plate, Latch		Appelez-nous	-
6	9762885		Transformer, Control				$ 174.77
7	W10246075		Vent, Exhaust		Appelez-nous	-
8	W10160844		Bracket, Blower		Appelez-nous	-
9	W10160858		Cover, Latch				$ 76.94
10	W10270396		Seal, Chimney		Appelez-nous	-
11	WP9761958		Block, Terminal   (Replaces: 9761958)			Immediately	$ 47.96
12	W10115858		Box, Terminal				$ 122.00
13	W10618712		Cover, Channel   (Replaces: W10269198)		Appelez-nous	-
14	9759721		Insulator, Terminal Box		Appelez-nous	-
15	WP71001171		Screw   (Replaces: 7101P460-60)				$ 7.30
16	WP3196163		Screw   (Replaces: 3196163)				$ 7.30
17	W10270397		Seal, Foam		Appelez-nous	-
