01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Chassis Parts


04 - Top Venting Parts


05 - Oven Parts


06 - Oven Door Parts


07 - Internal Oven Parts


08 - Optional Parts

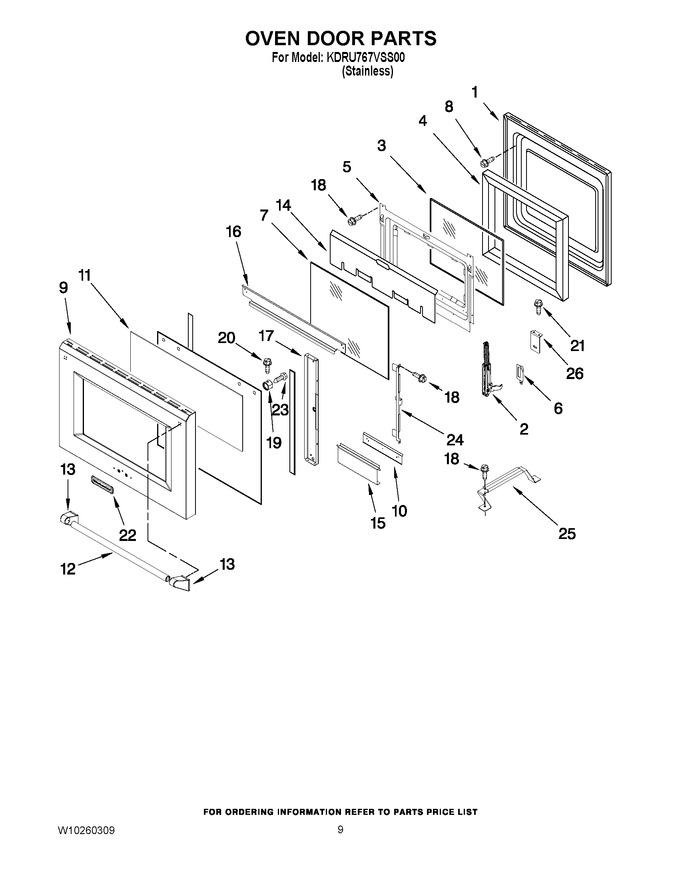

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10188330		Door Liner				$ 137.38
2	W10269203		Hinge, Door (right)		Appelez-nous	-
2	W10877227		Hinge, Door (left)   (Replaces: W10269204)			Immediately	$ 66.45
3	WPW10226005		Glass, Inner   (Replaces: W10226005)				$ 307.57
4	W11706557		Insulation, Door   (Replaces: W10115765)				$ 70.59
5	W10859077		Retainer, Glass   (Replaces: W10188324)				$ 234.31
6	W10115877		Cover, Hinge (right)		Appelez-nous	-
6	W10115876		Cover, Hinge (left)		Appelez-nous	-
7	WPW10188327		Glass, Inner   (Replaces: W10188327)				$ 224.58
8	WPW10292297		Screw   (Replaces: W10292297)			Immediately	$ 7.55
9	W10225960		Panel, Door				$ 296.97
10	W10226024		Shield,heat(btm)		Appelez-nous	-
11	WPW10115712		Glass, Outer   (Replaces: W10115712)				$ 264.67
12	W10115718		Door Handle				$ 326.77
13	W10771437		Screw   (Replaces: W10212184)				$ 7.46
13	W10226026		End Cap, Handle (left)			Immediately	$ 49.20
13	W10226025		End Cap, Handle (right)				$ 96.58
14	W10188328		Shield, Heat		Appelez-nous	-
15	W10145810		Bracket, Bottom		Appelez-nous	-
16	W10145806		Bracket, Top				$ 134.44
17	W10145811		Bracket, Side		Appelez-nous	-
18	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
19	W10225964		Support, Handle				$ 10.41
20	W10061760		Screw				$ 7.62
21	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
22	W10852683		Nameplate   (Replaces: W10113961)				$ 121.63
23	W10217130		Screw, End Cap (2)				$ 13.08
24	WP9759229		Bracket(2nd Glass)   (Replaces: 9759229)				$ 187.50
25	9759230		Bracket(3rd Glass)				$ 36.30
26	W10115715		Bracket, Door Top		Appelez-nous	-
